Complete FM Transmitter combination Kit for 2 KW Power

$18,600.00
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Complete FM Transmitter combination Kit for 2 KW Power

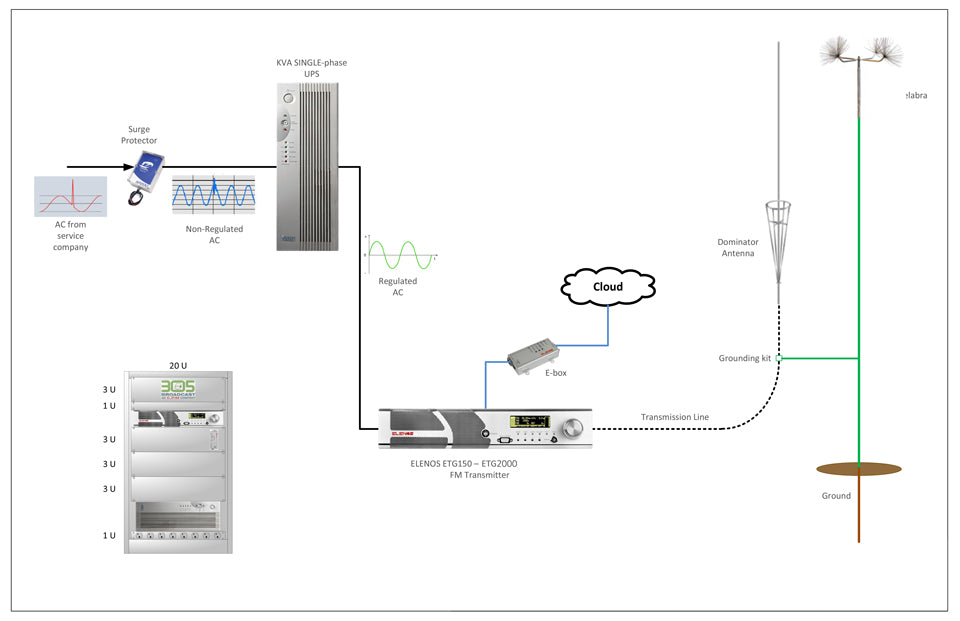

Consists in all the necessary items you need to purchase for a transmitter site of a 2000 W Transmitter keeping in consideration the necessary protection of your equipment.

This package consist of:

  • (1) 2 KW Solid State compact ELENOS ETG2000 FM Transmitter Indium Transmitter With Composite (MPX) input. Eco-Saving Technology offering high AC-to-RF efficiency and low AC power consumption.
  • (1) E-box for remote operation of the transmitter. With the E-box you will be able not only to control the transmitter but also to see hundreds of parameters from you iPhone, Android or web browser but also to receive alarms.
  • (1) 4 Bay antenna system from AOL Broadcast with circular polarization, omnidirectional patterns and 4.5 dBd gain with a maximum capacity of 3 KW input connector of 7/8”.
  • (150) feed of transmission line 1/2” Coaxial.
  • (1) Hanger kit to attached the transmitter line to the tower.
  • (1) Grounding kit for the transmission line.
  • (1) 7/16” Connectors with Inner and kit.
  • (1) 7/8: Connector.
  • (1) 6 KVA SINGLE-phase UPS  Continuous power conditioning, even when not running on battery.
  • (1) Surge Protector 120KVA Single Phasejam078.
  • (1) Candelabra with four elements Lighting protector.
  • (1) 20U Transmitter Rack.
  • (1) Rack Door with dust filter.

We also recommend having a full redundancy by implementing a backup transmitted with automatic Switch, and a Dummy Load. As an extra protection a good grounding system is a MUST and an isolated transformer is highly recommended. Please ask our Engineers Experts at 305 for more suggestions.
