Complete FM Transmitter combination Kit for 3 KW Power - 305 Transmitter Pack3500

The 305 Transmitter Pack 3500 KW package consists in all the necessary items you need to purchase for a transmitter site of a 3500 KW Transmitter keeping in consideration the necessary protection of your equipment.

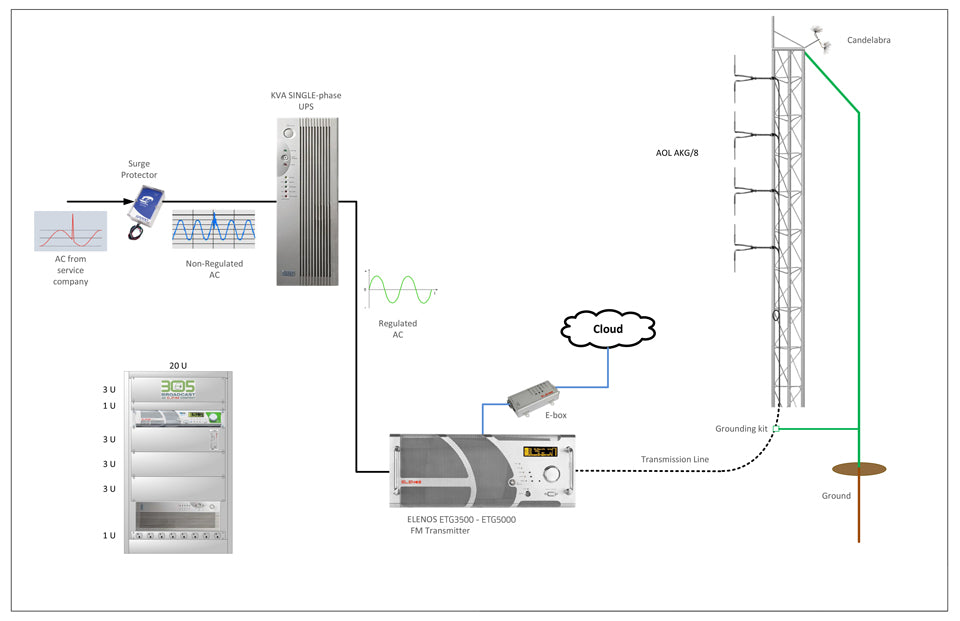

This package consist of:

  • (1) 3.5 KW Solid State compact ELENOS ETG3500 FM Transmitter with Icefet and Eco-Savings Technology 74% Efficiency compose (5) 800W modules each for complete redundancy Includes built-In Stereo Generator plus MPX/ Composite input and TC/TS board for wired remote control and interlock.
  • (1) E-box for remote operation of the transmitter. With the E-box you will be able not only to control the transmitter but also to see hundreds of parameters from you iPhone, Android or web browser but also to receive alarms.
  • (1) 4 Bay antenna system from AOL Broadcast with circular polarization, omnidirectional patterns and 4.5 dBd gain with a maximum capacity of 5 KW input connector of 7/8”.
  • (150) feed of transmission line 7/8” Coaxial.
  • (1) Hanger kit to attached the transmitter line to the tower.
  • (1) Grounding kit for the transmission line.
  • (2) 7/8” Connectors with Inner and kit.
  • (1) 10 KVA SINGLE-phase UPS  Continuous power conditioning, even when not running on battery.
  • (1) Surge Protector 120KVA Single Phasejam078.
  • (1) Candelabra with four elements Lighting protector.
  • (1) Set of rigid line for a clean installation composed of 20 ft Line Section Flanged, two 90 degrees elbows 7/8, and two Connectors.
  • (1) 20U Transmitter Rack.
  • (1) Rack Door with dust filter.

We also recommend having a full redundancy by implementing a backup transmitted with automatic Switch, and a Dummy Load. As an extra protection a good grounding system is a MUST and an isolated transformer is highly recommended. Please ask our Engineers Experts at 305 for more suggestions.
