Comrex LiveShot Studio Portable LSP-AB

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Comrex LiveShot Studio Portable

Live, low-latency video over IP

Featuring CrossLock VPN Technology, ideal for OB
LSP-AB - for mounting to Anton Bauer Gold Mount style cameras and batteries

LiveShot Portable is designed to be compact and lightweight. The unit is supplied with Anton Bauer-style Gold Mounts to sandwich between a professional video camera and a battery. The system can be powered from the battery or from an external AC power supply. Power consumption is 8 watts. Weight is 5 pounds.

Comrex LiveShot™ delivers live video and audio over a range of IP networks. LiveShot is used by TV stations and networks to deliver high quality, low latency video from anywhere Internet access is available, ideal for ENG. LiveShot leverages the success of Comrex ACCESS audio IP codecs and uses the same technology to smooth out the "bumps" on the public Internet to allow broadcast-quality live video and audio streaming. LiveShot is especially optimized to perform well on challenging IP networks like 3G, 4G and satellite-based links.


  • Video

LiveShot encodes and decodes video to the H.264 codec standard, which is the state-of-the art codec for high quality video using low network bandwidth. But not all H.264 encoders are alike. Within the standard, several lesser-quality profiles are available to conserve processing power. For optimal video quality, LiveShot encodes with H.264 HIGH profile. Several other options within the H.264 standard, many of which are not implemented by competing products due to complexity, are default in LiveShot. All H.264 options that maximize quality over poor networks and decrease latency are implemented.

  • Audio

Comrex has years of experience encoding live, low latency audio over IP networks for broadcast, and LiveShot shows it. In addition to standard AAC audio coding, LiveShot utilizes HE-AAC and AAC-ELD audio coding, both reducing network bandwidth and lowering delay.

  • Latency

LiveShot can encode and decode an audio/video stream with less than 200mS delay. Delay may be higher based on encoding mode and network factors. LiveShot uses an automatic decoder buffer manager to keep delay to an absolute minimum. This technology was perfected over years of experience with the BRIC series of audio codecs.

  • Channels

LiveShot delivers full-duplex video and stereo audio between the field portable and studio rackmount systems. In addition, a full-duplex cue channel is available between the systems.

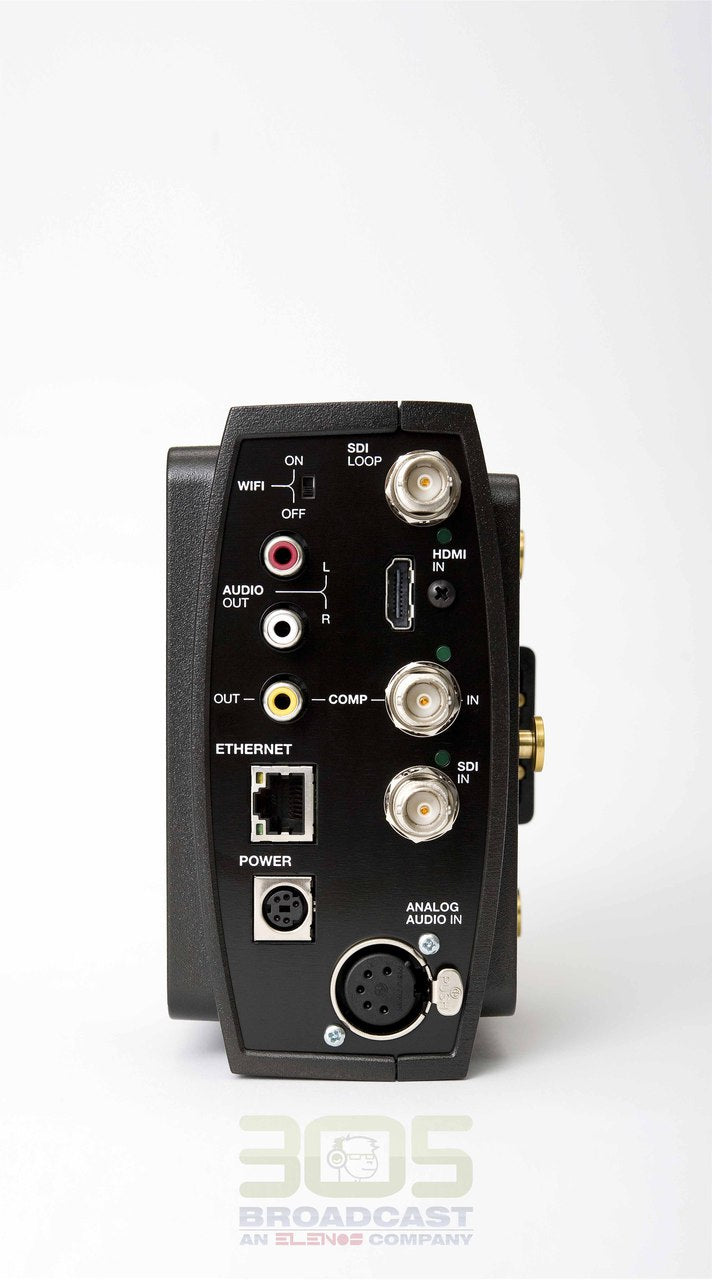

On the portable, the return audio/video channel is delivered via output connectors, or streamed to a mobile device via the built-in Wi-Fi access point. The cue channel is accessible on the portable via wired headset.

  • Controls

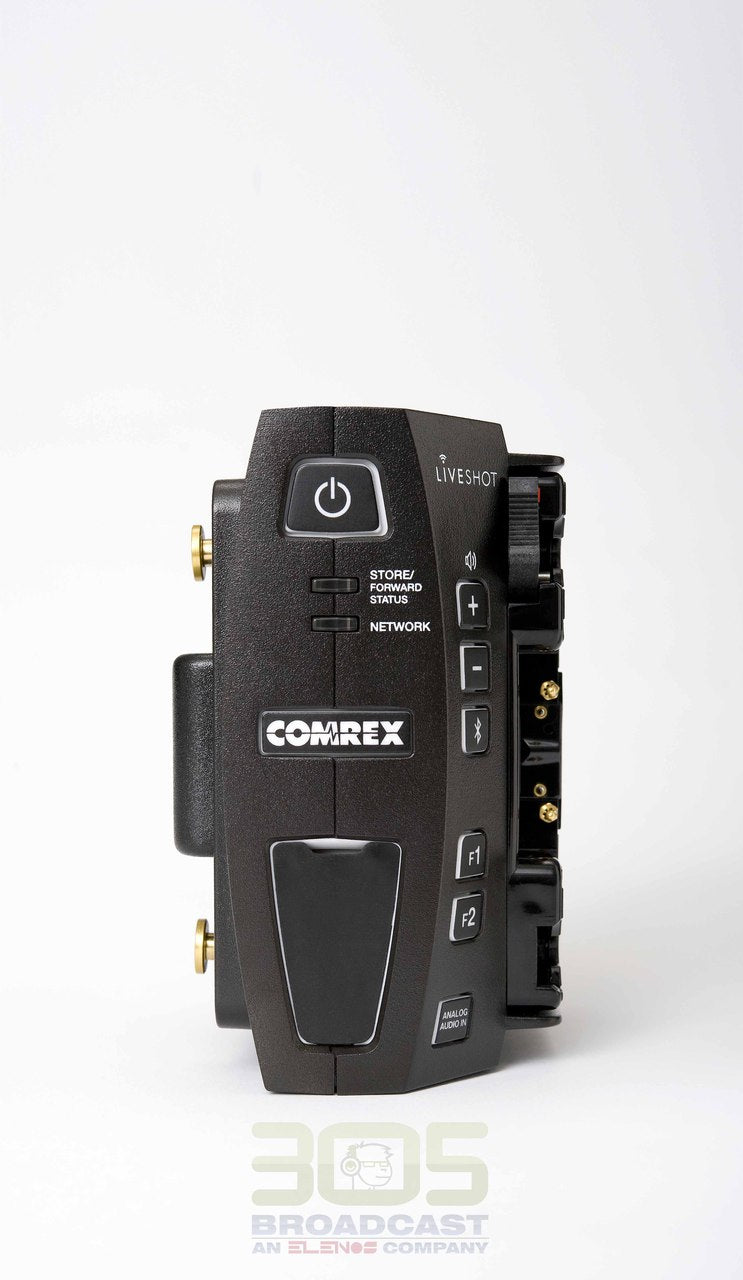

LiveShot utilizes CrossLock VPN™ to create a stable and secure connection across the public Internet and adds intrusion protection, encryption and forward error correction. CrossLock VPN connects through the LiveShot Central Server to allow LiveShot units to “see” each other. A green CrossLock light on the LiveShot means the units are connected to the CrossLock VPN and the units can start sending full-duplex audio and video with the touch of a button. Use of standard LiveShot Central Server functions are free of charge.

LiveShot can also be controlled locally via a web page delivered from its internal Wi-Fi access point. This Wi-Fi connection is independent from any media channel, and serves a web page optimized for mobile browsers.

  • Wireless

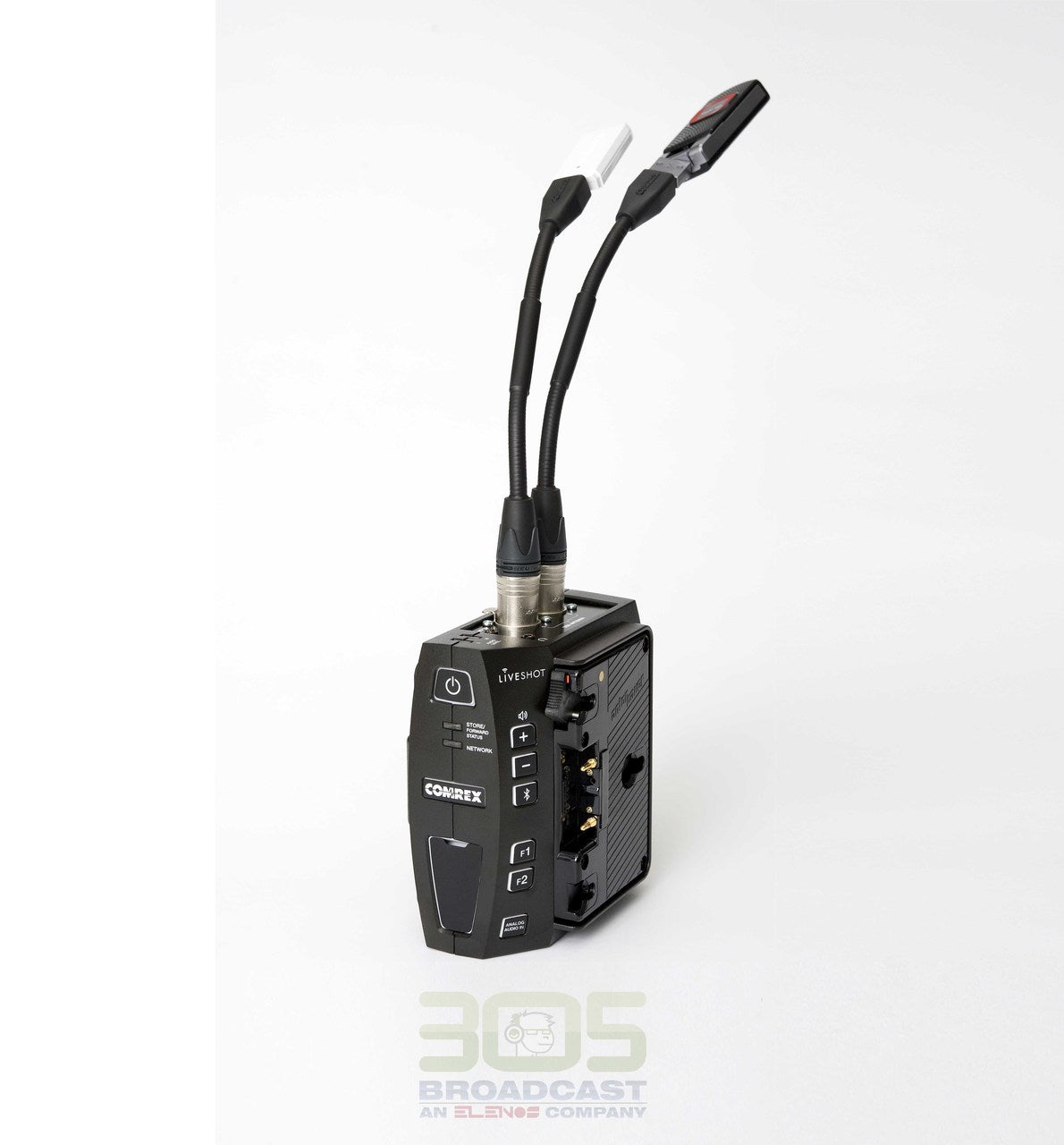

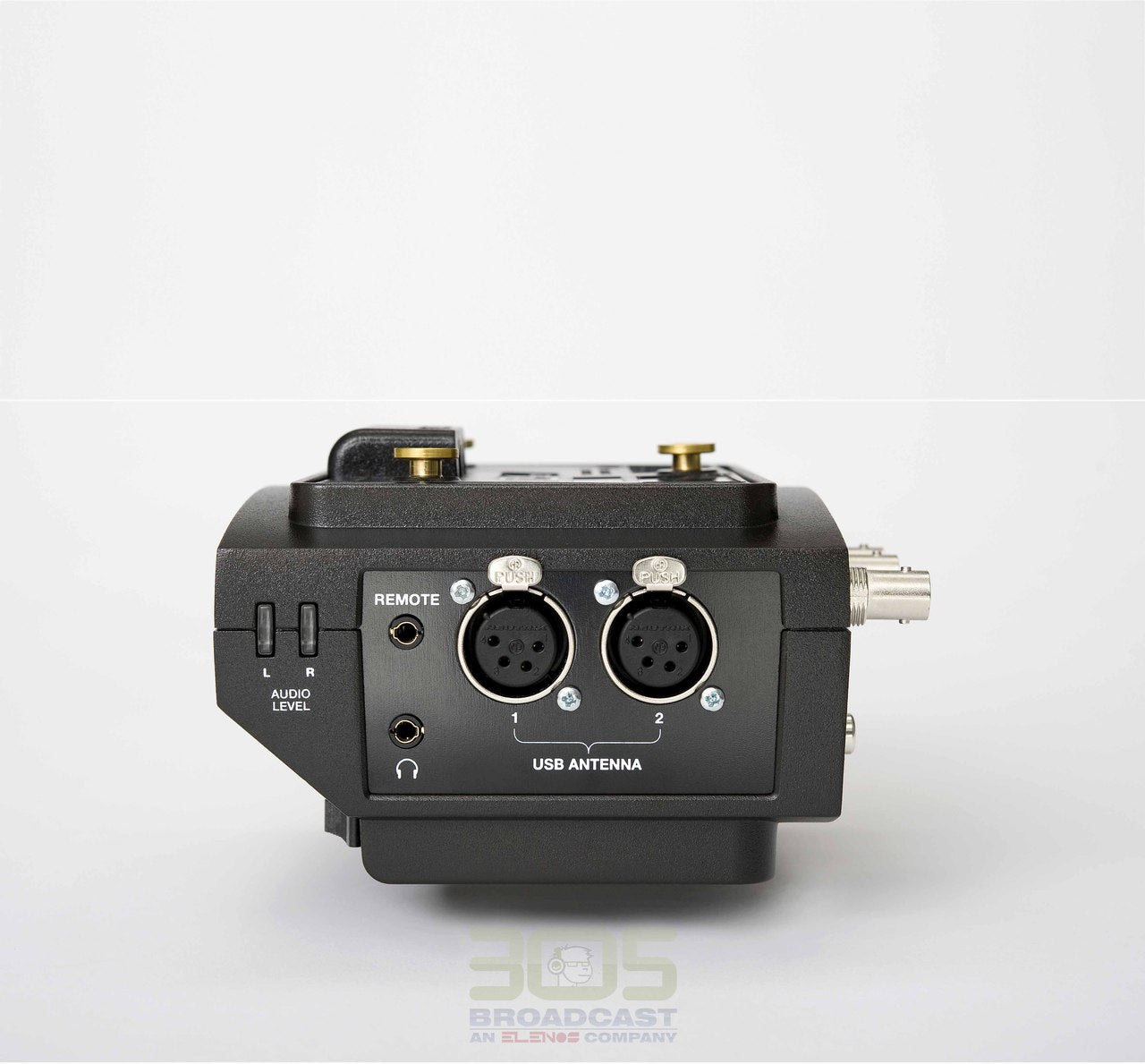

LiveShot offers connection to wireless modems via two USB ports. These ports can be used simultaneously to increase the bandwidth of wireless connections. LiveShot USB connections are made via a pair of flexible 8-inch gooseneck-style adapters, which serve to elevate wireless modems above the body of the unit and above the cameraman's head. The adapters are bendable to provide for proper physical spacing between wireless modems and to survive hitting doorways and other obstructions.

LiveShot is supplied with a high-gain Wi-Fi USB adapter and can support a wide range of 3G and 4G USB cellular data modems. Via the built-in Ethernet port, connections can be made to Inmarsat BGAN and VSAT terminals as well as wired broadband IP data networks.
