305 Broadcast - 4 BAYS FM ANTENNA SYSTEM FOR 3 KW / AKG7

$4,076.00

4 BAYS FM ANTENNA SYSTEM FOR 3 KW

MODEL  AKG7-43

Circular polarization, Penetrator Type FM Antenna System 4 bays,. BROADBAND, Gain 4,5 db, Power 3 KW, Input connector 7/8".

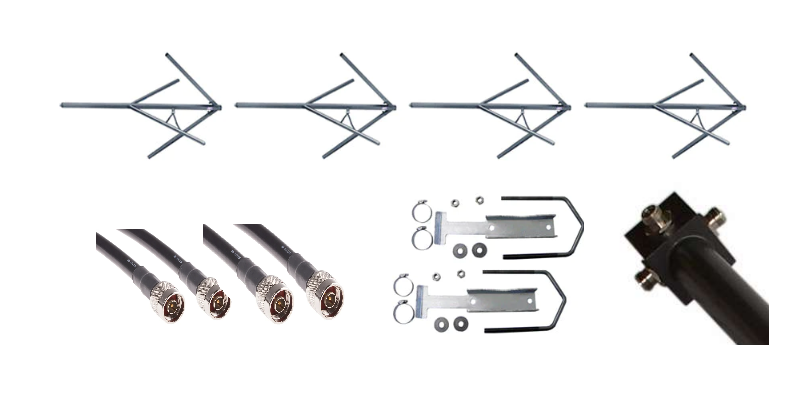

Composed of  4 Antennas AKG/7N,+ 1 Power Divider GAXF/4N +, 4 Juamper Cables CR213N5.5 +, 1 Clamp SAGA/2.

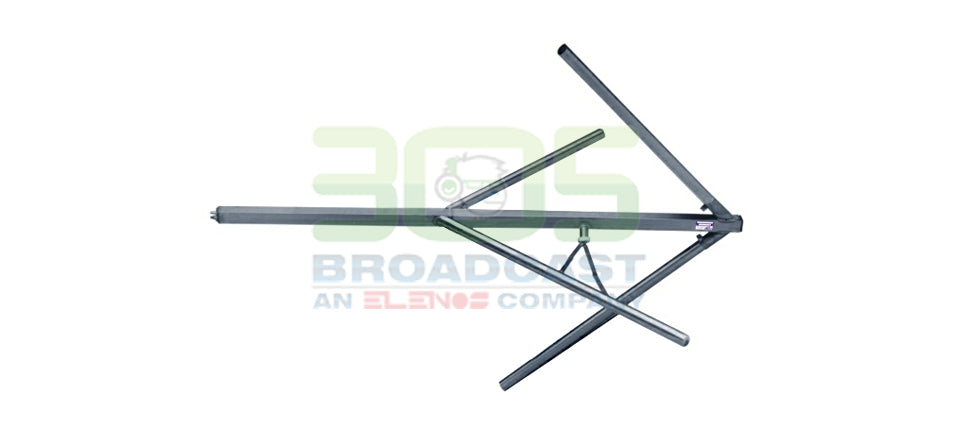

AKG 7 FM wide-band Antenna Features:

  • Omni directional antenna.
  • Circular polarization.
  • Wide band.
  • Very resistant, entirely made of stainless steel and PTFE insulator.
  • Demountable into several parts to facilitate shipping.

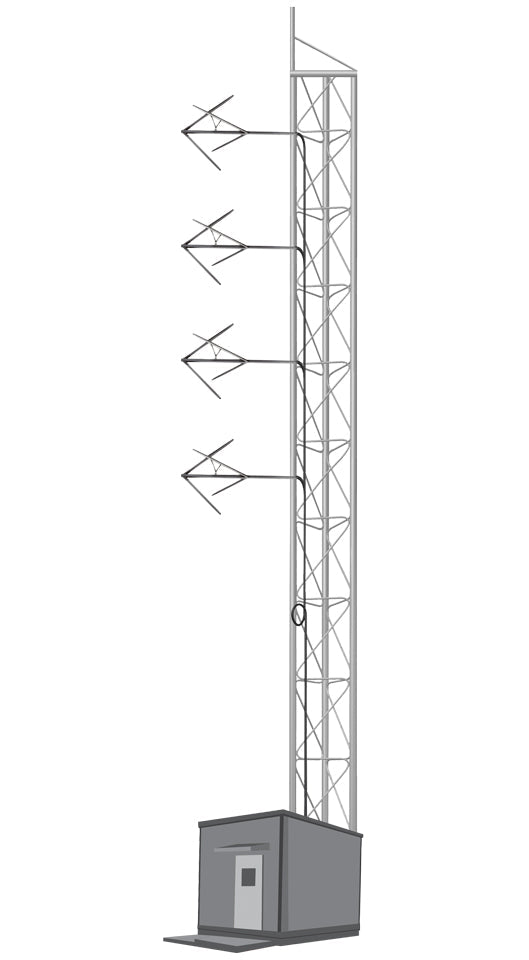

  • For proper functioning, antenna must be mounted on a pole support and should notÿhave any other antennas or metal structures nearby.

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

TECHNICAL DATA


AKG/7N AKG/7M AKG/7F
FREQ. RANGE 87.5 – 108 Mhz 87.5 – 108 Mhz 87.5 – 108 Mhz
IMPEDANCE 50 Ohm 50 Ohm 50 Ohm
V.S.W.R. <1.25:1 <1.25:1 <1.25:1
GAIN – 1.5dBd – 1.5dBd – 1.5dBd
CONNECTOR N 7/16 7/8
MAX POWER 800W 2KW 3KW
POLARIZATION Circular Circular Circular
WEIGHT 10.9 Kg 10.9 Kg 11 Kg
DIMENSIONS 152x124x115 cm 152x124x115 cm 152x124x115 cm
