Home / Products / 305Broadcast EtherMPX Encoder - Digital IP MPX LINK

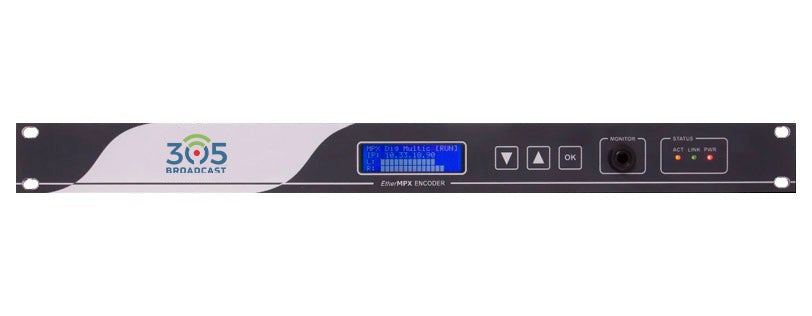

305Broadcast EtherMPX Encoder - Digital IP MPX LINK - 305broadcast

305Broadcast EtherMPX Encoder - Digital IP MPX LINK

$1,890.00

Size
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

305Broadcast EtherMPX Encoder - Digital IP MPX LINK

Digital IP STL EtherMPX

EtherMPX is an IP STL system designed to transport real time MPX with RDS or L/R signal from studio to transmitter, through TCP/IP network. An affordable direct replacement of your analog STL, with higher performance!
Professional IP STLs must deliver uncompromised quality, no modulation overshoots, no audible latency for live on- air monitoring and time accuracy for SFN operation. Should be made of high reliability and dedicated hardware, unlike ordinary computer systems, and specifically designed to operate in harsh environment like the mountains where the transmitters are located.
EtherMPX is an IP STL designed exactly with these principles. It has the advantage to transparently transport Analog or Digital MPX with 2.5mS latency, and Analog or Digital L/R discrete channels over uncompressed linear PCM 24bit 48kHz (L/R mode) or 24bit 192kHz (MPX mode). State-of-the-art components for the analog section provide high end quality, with DC coupled inputs & outputs.

Analog MPX from decoder output

Options:

  • 1 : SNF for EtherMPX Encoder $  460
  • 2 : Low Latency for Encoder $  260
  • 4 : Second ETH port $ 340
  • 6 : GPSDO Module G.811 Grade $ 1,120
  • 7 : GNSS Antena W/LNA & Filter $ 240
  • 8 : GNSS Coax Cable 10m w/connectors $ 120



Features:

• Transparent Analog or Digital MPX (MPX over AES), or two discrete L/R channels (analog or AES).
• Built-in MPX SFN support with PTP sync (up to 6.000km in basic version). No GPS receivers!
• Unicast or Multicast operation to feed unlimited number of FM transmitters with MPX from one encoder.
• Linear uncompressed PCM 24-bit audio.
• Very low audio latency: 2,5mS in MPX mode.
• Perfect match with Sigmacom DDS-30 Exciter with Digital MPX input.
• Can be used with high quality 802.11a/n Ethernet links.
• DC coupled, balanced Analog inputs & outputs with -130dBc noise floor.
• No modulation overshoots due compression or AC capacitor coupling.
• Decoder provides simultaneously Analog & Digital output for transmitter redundancy.
• Aux RS232 serial transparent link, Studio to Transmitter
• Auto switchover to Analog input when Digital signal is lost.
• Centralized remote control & management software



*** Includes UI, Monitor**

*** Options not included, sold separately ***
