D&R Airence USB - 6 Ch On-Air/Production Console

$3,458.00
Option
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

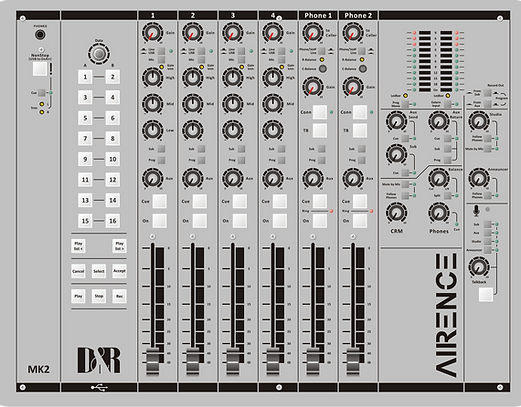

D&R Airence USB - On Air/Production Console

The Airence-USB is designed to be the focal point for local radio production work in the studio or... at home. It’s understandable features makes it the ideal companion for rapid on-the-spot radio programs.

The Airence is compact, reliable and 19" rack mounting ideal for production rooms. It can also double as an On-Air mixer or implemented as your own Internet Radio station.

If your budget is tight start with the 6 channel version which is a complete system to begin with.

And it never becomes obsolete as it can be used as pre-production mixer, if, at a later date, you fit in a larger On-Air mixer. And.. if more inputs are needed hook up the Airence-EXT and instantly you have 6 more triple inputs. Not enough? Buy another 6 channel unit to expand to 18 or even more input channels.




Specifications

INPUTS

Mic inputs: bal, 2 kOhm, XLR. ,48 volt Phantom.

Noise: - 128 dBr (A-weighted). (That 1501)

Sensitivity: - 70dB min, OdB Max.

Insert: Jack unbalanced send 600 Ohm -10dBV.

Aux Return unbalanced 10kOhm -10dBv.

Line inputs: unbal.., 10kOhm, Cinch.

Gain: range of 40dB.

Phono inputs: unbal. 47kOhm, 5 mV. (optional)

USB: 4x Stereo in and 4x stereo out.

Extern in: - 10 dBV at 10kOhm.

Aux returns: - 10 dBv at 10kOhm stereo



USB

Fully compliant with USB 2.0 playback and record mode.

4x Stereo in and Main stereo or SUB signals out.

HID Functions: Volume|Mute|Control

DIMENSIONS

Main unit

Width: 482mm, Front Panel Thickness: 2mm

Corner Radius: 20 mm

Height: 355mm

Depth: 101.50mm.

Weight: 9kg.

Drop through hole: 450mm x 344mm

Furniture top panel thickness maximum: 22mm

TELEPHONE HYBRIDS

RJ-11 connectors for phone line/dialler

Mix Minus rejection @1kHz -40dB.



VoIP HYBRIDS

If you have opted for VoIP channels a USB connector is placed in the lower RJ-11 position.
The other RJ-11 provides you with a cleanfeed signal on pin 1+4 or a ring signalling control.

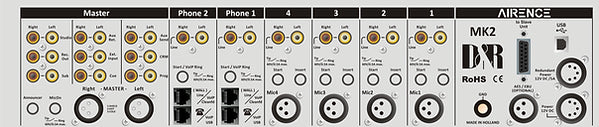

OUTPUTS

Left/Right: + 6dBu bal. XLR.

Monitor/Aux : + 6dBu unbal. on Cinch.

Studio: + 6dBu, Jacks. Tape outp: -10dBv.

Headphone: 32-600 Ohm, Jack.

Announcer: 32-600 Ohm, Jack.

USB out: Main program stereo signal or SUB


OPTIONS

AES digital output (mounted in redundant power supply hole)



EQUALIZER

High: + / -12 dB at 12kHz shelving.

Mid: + / -12dB at 1 kHz bell curve.

Low: + / -12dB at 60 Hz shelving.
