D&R Airmate-USB - 12 Ch Broadcast Radio On-air Console

$3,291.00
Model
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

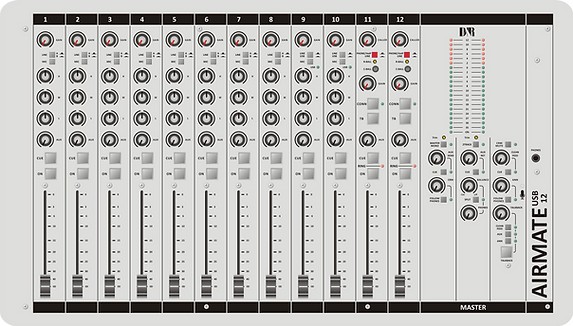

D&R Airmate-USB - 12 Ch Broadcast Radio On-air Console

The Airmate-12 has the usual stereo faders, stereo Aux send and return, monitor master with "follow phones" and a phones output with a split control function.

There is a balance control to continuously adjust the volume between main output and stereo Cue signal.

In addition, there is a special Radio On-air/production section featuring; Self­ op switching to automatically cut control room level when the D.J. mic is active; a Clean feed output to also drive

an external Telephone Hybrid for talk shows and interviews, if you need more Hybrid channels than the 2 built in ones; a special announcer output that normally follows main output but can be

switched so that the main output, or any cue signal that is selected, can be heard when in the "follow phones" mode.

A large Talkback switch activates the built-in electret talkback microphone for easy communication with the Clean-feed output, Aux output and/or Announcer output.




Specifications

INPUTS.

Mic inputs: bal, 2kOhm, XLR. Phantom: 48 volt.

Noise: - 122 dBr (A-weighted).

Sensitivity: - 70dB min, OdB max.

Insert: -10dBv in/out.

Line inputs: unbal., 10kOhm, Cinch.

Gain: range of 40dB.

Phono inputs: unbal. 47kOhm, 5 mV.

2 Track return: - 10 dBV at 10kOhm.

Aux returns: - 10 dBv at 10kOhm stereo



USB.

Fully compliant with USB 2.0 playback and record mode.

HID Functions: Volume/Mute

​

TELEPHONE HYBRIDS.

RJ-11 connectors for phone line/dialler

Mix Minus rejection @1kHz -60dB.

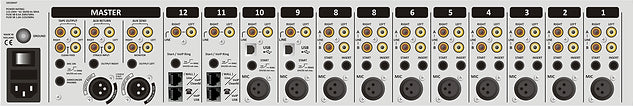

OUTPUTS.

Left/Right: + 4 dBu bal. XLR.

Monitor/Aux : + 4dBu unbal. on Cinch.

Cleanfeed/Announcer: + 4dBu, Jacks. Tape outp: -10dBv, unbal. Cinch.

Headphone: 16-600 Ohm, Jack.

Announcer: 16-600 Ohm, Jack.

EQUALIZER.

High: + / -12 dB at 12kHz shelving. Mid: + / -12dB at 1 kHz bell curve.

Low: + / -12dB at 60 Hz bell curve.

Air-4, Air-1, Wheatstone, Audio Arts, Axia, IP-12, LX-24, LXi, Vorsis, AEQ, Axel Oxygen

OPTIONS:

AES/EBU digital stereo output and AES digital 2 track input plus existing

analog outputs on 2 jacks.

RIAA pre-amp on line input B for phono cartridges, 60881597



​

OVERALL

Frequency response: 10 - 60.000Hz.

Distortion: < 0.009% max at 1 kHz.

Start switch: reed relay.

Ledbars: 21 segment.

Power Consumption: 30VA



START
Stereo jack connector to internal opto coupler 24volt/50mA max.)

The opto coupler switches between tip and ring of the stereo jack

(So tip is shorted to the ring)



MIC ON

Stereo jack connector to internal opto coupler(24volt/50mA max.)

The opto coupler switches between tip and ring of the stereo jack

(So tip is shorted to the ring)


DIMENSIONS

Left-Right rack mountable. (722mm width)

Front-Back: 356mm (8HE).

Height: 105mm.

Space below front panel: 20mm for table top. Weight: 14 kg.

For Drop through mounting (on top) cut a hole of 590 x 335 mm.

For Drop through mounting (milling) cut a hole of 622 x 355.15 mm.  with a radius of R=20 and a depth of 2mm
