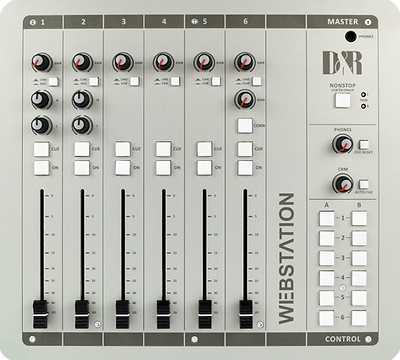

D&R WEBSTATION-USB - Broadcast Radio On-air Console


This new hand built piece of powder coated front panel with reliable controls gives you access to a flawless performance.

It is an intelligent mixer with an internal USB control section that speeds up daily use and includes a built in Silence Detector.

It is a reliable workhorse for the self-op production D.J. with built in Telephone VOIP functionality.

 3 in/out channels of stereo USB and 2 very low noise Mic inputs.
The WEBSTATION, ideal for ON-AIR, Production and perfect for streaming to the web.

The WEBSTATION accepts and instantly controls a maximum of 3 in/out stereo channels from your Play-out software.

It is built into a metal, heavy duty RF shielded, powder coated chassis, designed with elegantly rounded corners.
Easily “drops” into your furniture to give that exciting and contemporary radio look.
A strong powder coated front panel with reliable controls gives you access to a flawless performance.

 FEATURES


INPUTS

Mic input:: bal, 2 kOhm, XLR  ,48 volt Phantom.

Noise       : - 128 dBr (A-weighted).

Sensetivity : - 70dB min, OdB Max.

Insert : unbalanced 10kOhm -10dBv.

Line inputs : unbal., 10kOhm, Cinch.

Gain : range of 40dB.

USB : 3x Stereo in and 3x stereo out.

Fully compliant with USB 2.0
playback and record mode.
3x Stereo in and 3x  stereo out.

Frequency response :: 10 - 60.000Hz.

Distortion : < 0.01% max at 1 kHz.

GPO/Mic ON : Opto FETS. (24volt/50mA max).

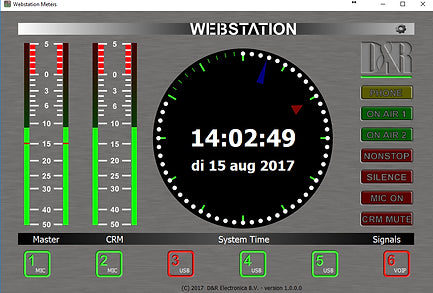

Led bars : Software meter application.

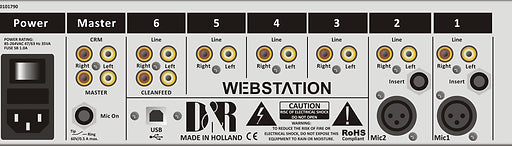

OUTPUTS

Left/Right : 0 dBu unbal. on Cinch.

CRM : 0 dBu unbal. on Cinch.

Headphone : 32-400 Ohm, Jack.

USB out : Program/Voice track/VoIP


EQUALIZER

High : + / -12 dB at 12kHz shelving.

Low : + / -12 dB at  60 Hz shelving.


CONTROL SOFTWARE

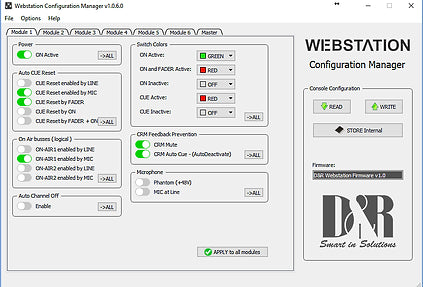

A software program is included in the delivery for programming the Control section (Webstation Virtual Keyboard Mapper) and internal mixer settings.

DIMENSIONS

Left-Right : 350 mm

:Front-Back  315 mm

Height : 30 to 90 mm

Frontpanel thickness : 2 mm

Radius Corners : 20 mm

Weight : 8kg.

Drop Through hole : 320 x 295 mm
