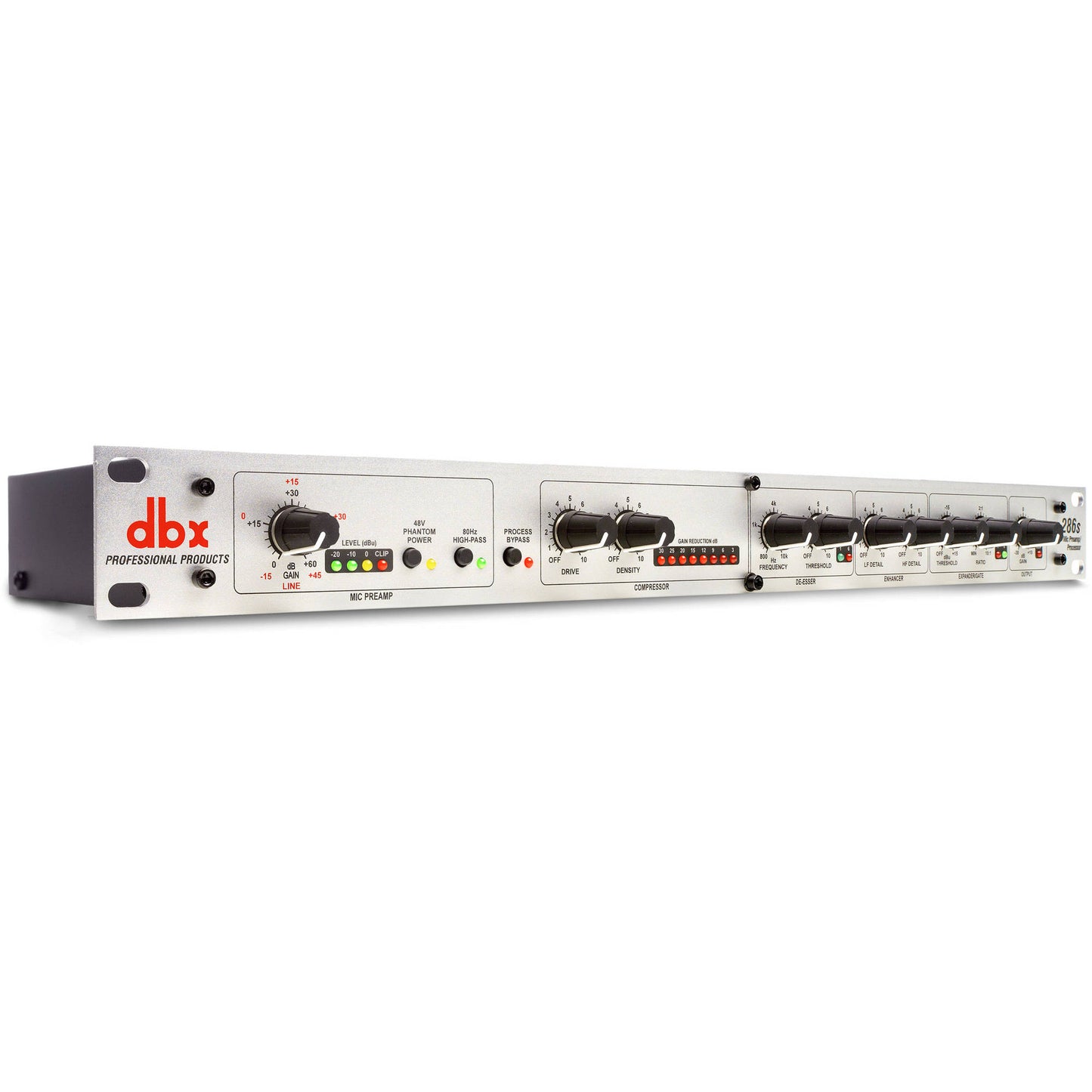

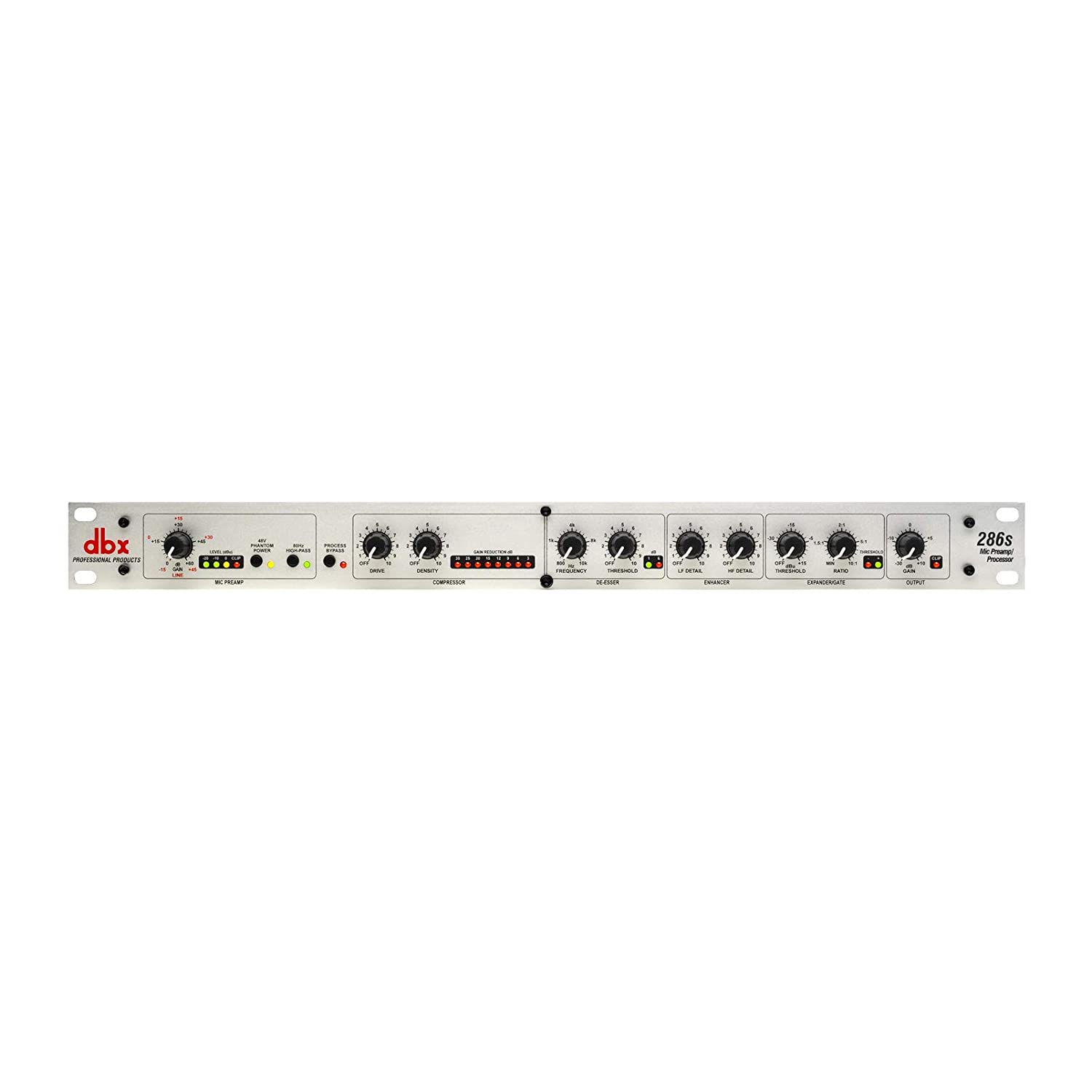

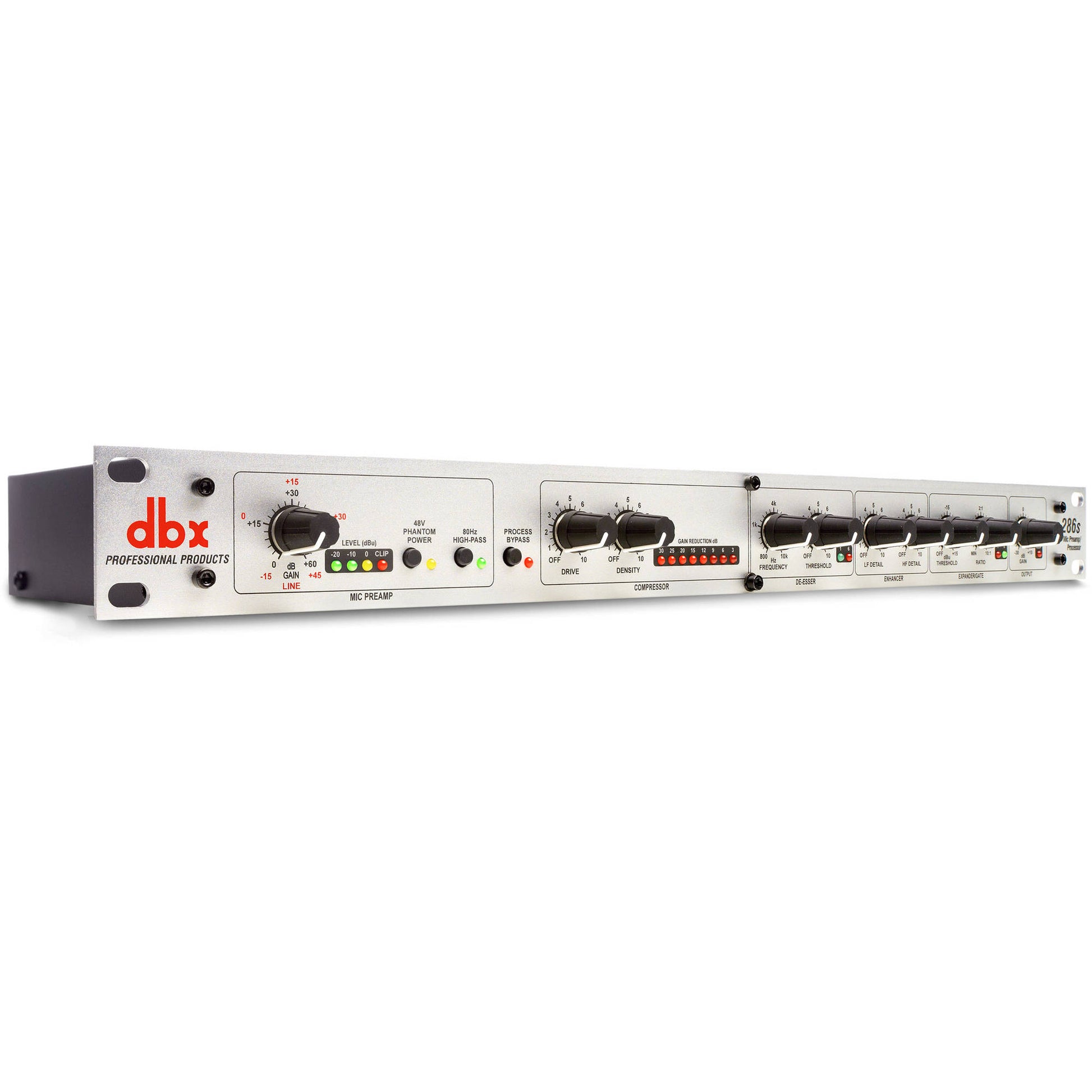

DBX 286S Mic Preamp / Processor

The dbx 286s microphone processor is a direct replacement for the renowned dbx 286A, offering the same exceptional sound quality, rugged reliability and great value, but updated with a new sleek, silver face plate and the latest electronic components for even better performance.

The 286s is a full-featured Channel Strip Processor that delivers a studio quality microphone/instrument preamplifier and four processors that can be used independently or in any combination.

The sonically pristine dbx 286s Mic Preamp has all the features you need, including wide-ranging input gain control, switchable +48V phantom power, and an 80Hz high-pass filter to remove low frequency hum, rumble or wind. Use the patented dbx OverEasy compressor to transparently smooth out uneven dynamics. Eliminate vocal sibilance and high frequency distortion with the frequency tunable De-Esser. Fine-tune the Enhancer HF Detail control to add sparkle and crispness, and make adjustments to the LF Detail control to add fullness and depth. And, the separate threshold and ratio controls on the Expander/Gate allow you to subtly reduce headphone leakage or radically gate noisy sound sources.

dbx 286s Features:
• Studio quality Mic Preamp / Channel Strip Processor
• Classic dbx Compression puts great sound within easy reach
• Frequency tunable De-Esser reduces sibilance and high frequency distortion
• Enhancer increases the detail and definition of the high and low frequencies
• Program adaptive Expander/Gate
• Insert jack allows you to add an external processor
• Full complement of meters and status LEDs
• +48V Phantom Power
• Precision detented controls

Specifications:
• Mic Preamp Connector: XLR Floating balanced, Pin 2 Hot
• Mic Preamp Input Impedance: ~4.2kΩ
• Mic Preamp gain: 0dB to +60dB
• Mic Preamp Phantom Power: +48VDC, applied to XLR pins 2 and 3 through 6.81kΩ resistors CMRR >40dB, typically 55dB
• Mic Preamp max input level: 0.2Vrms, Gain = 30dB
• Mic Preamp Equivalent Input Noise (EIN): -125dBu, 22Hz-22kHz, 150Ω source impedance
• Input Connectors: (line) Floating balanced, TIP Hot
• Input Impedance: (line) 10kΩ unbalanced, 20kΩ balanced
• Max Input: (line) >+21dBu, balanced or unbalanced
• Input Gain Range: (line) -15dB to +45 dB

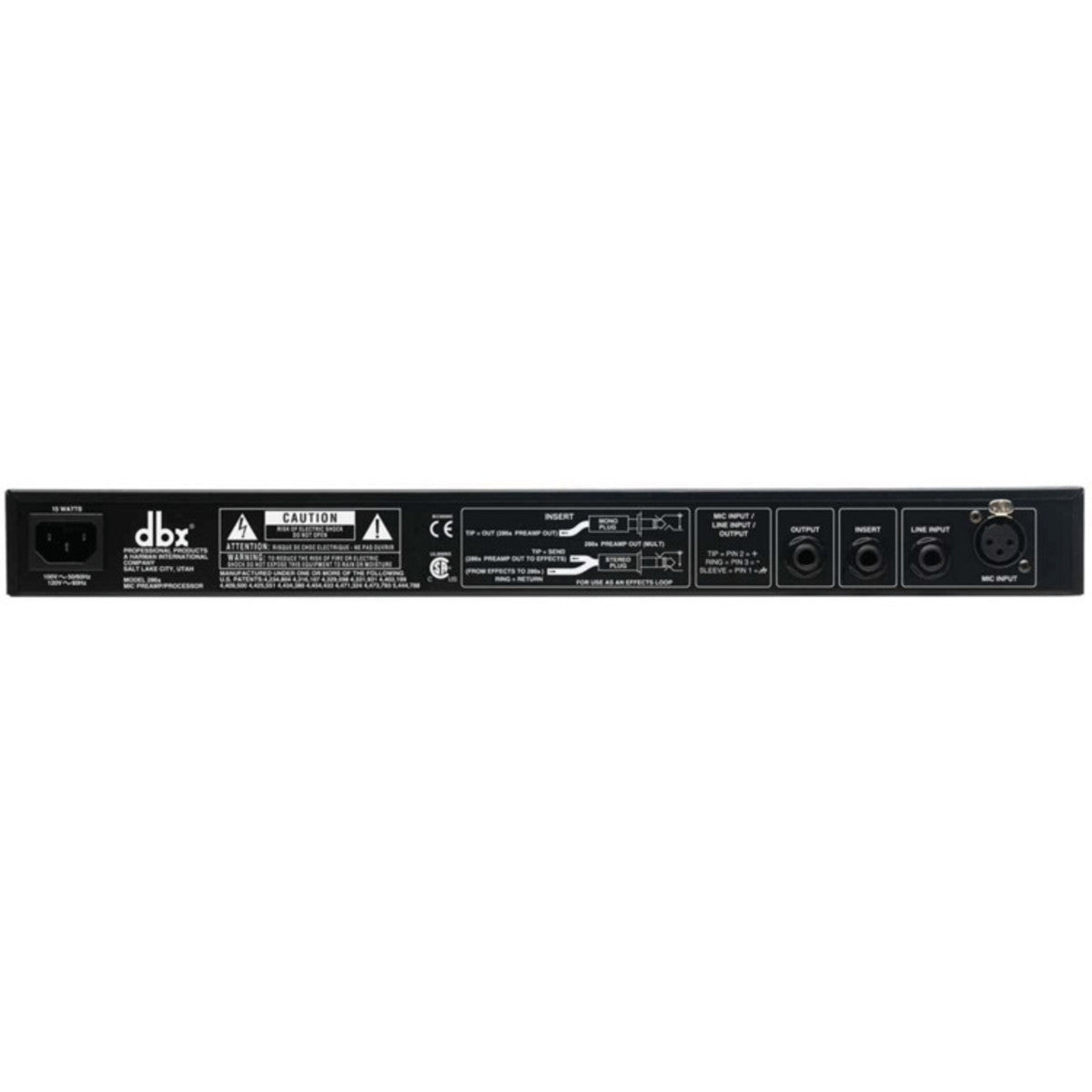

• Insert Connector: 1/4" TRS: Normalled; tip is Send, ring is Return
• Insert Impedance: >5kΩ (ring-return); 100Ω (tip-send)
• Insert Max Level :>+21dBu; >+20dBm (600Ω load-tip)
• Insert Noise: <-84dBu, unweighted (20Hz-20kHz); LINE GAIN Control set to 0dB
• Insert Distortion: <0.01% THD, 20Hz-20kHz, +10dBu
• Output Connectors: 1/4" Balanced/Unbalanced TRS Connectors
• Output Impedance: 100Ω unbalanced, 200Ω balanced
• Max Output: >+21dBu, >+20dBm (600Ω load)
• Gain Adjustment Range: -30dB to +10dB
• Noise: <-80dBu unweighted (20Hz-20kHz); Both Gain Controls set for 0dB, all processing controls OFF
• Frequency Response: 20Hz to 20kHz, +0.5, -0.5dB
• THD: <0.08%THD, 20Hz-20kHz, +10dBu, all Processing Controls OFF
• Compressor: Threshold Range -40dBu to +20dBu
• Compressor: Threshold Characteristic OverEasy®
• Compressor Ratio: >4:1 For input levels beyond 20dB above threshold
• Max Compression: 30dB
• Compressor Attack Time: Program-Dependent; >1s for small level increases, down to 10ms for larage increases
• Compressor Release Time; Program-Dependent; adjustable between approximately 1dB/sec and 75dB/sec
• Compressor Distortion: Typically <0.05%THD, 20Hz-20kHz, 15dB G/R, +10dBu Output, DENSITY @ 0 IMD SMPTE: <0.05%; 60Hz/7kHz 4:1, 15dB G/R, +10dBu Output Level, DENSITY @ 0
• De-esser Characteristic: Wideband Gain Reduction
• De-esser Frequency Range: 800Hz to 10kHz High Pass, 12dB/octave
• De-esser Release Time: 12dB/octave Program-Dependent; approximately 1mS/dB
• Enhancer HF Detail Characteristic: Program-controlled shelving equalizer, approximately 15dB maximum HF boost
• Enhancer LF Detail Characteristic: Bell-shaped boost @ 80Hz, bell-shaped cut @250Hz, ratio is approximately 2:1
• Expander/Gate Threshold Range: OFF to +15dBu
• Expander/Gate Ratio: Adjustable 1.5:1 to 10:1
• Expander/Gate Max Depth: >50dB
• Expander/Gate Attack Time: Program-Dependent, approximately 2mS (at maximum attenuation)
• Expander/Gate Release Time: Program-Dependent, approxiamtely 10mS/dB
• Expander/Gate Dynamic Range: Typically 105dB
• Power Consumption: 15W
• Operating Voltage: DO: 120VAC 60Hz, 100VAC 50/60Hz;
• Operating Temperature: 0°C to 45°C (32°F to 113°F)
• Dimensions: 1.75" x 5.75" x 19" (4.5cm x 14.6cm x 48.5cm)
• Unit Weight: 4.5 lbs/2.04 Kgs Shipping Weight 6.54 lbs/2.97 Kgs
