Digigram PYKO-IN Stereo IP Audio Encoder

Digigram PYKO-IN Stereo IP Audio Encoder

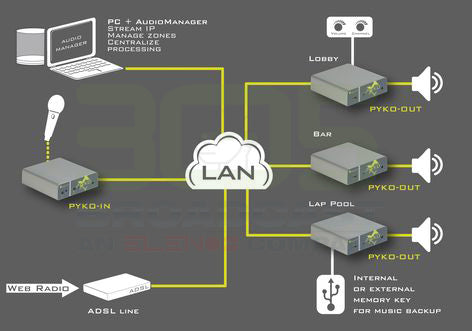

Key Workflow: audio over IP encoder for studio to transmitter links (STL), WEB radio, paging,  background music, live announcements, intercom

PYKO-in is a stereo IP audio encoder that can be used in two modes. One mode allows converting the analog audio source into an IP audio stream sent to one or several destinations.

Typical applications include STL, WEB radio encoding, background music, and paging. Combined with PYKO-out, PYKO-in is a cost effective solution for establishing IP audio links. Another mode allows using PYKO-in as a mono encoder/decoder; typical applications include intercom over IP.


At a glance

PYKO-in is a small form factor rack-mountable stereo IP audio encoder or mono IP audio codec, depending on the way it is configured. Used as a stereo encoder, it features two balanced analog mono inputs.

Used as a mono codec, it features one balanced analog mono input and one mono balanced mono output.  One of the inputs offers a microphone preamp with phantom power, which is useful when PYKO-in is used for intercom.

PYKO-in generates standard RTP streams in G711, PCM, or MPEG L3 audio format and allows for auxiliary data tunneling (serial data and 4 GPI statuses).

  • Stereo IP audio encoder, or mono encoder/decoder with mic preamp
  • Standard RTP streaming
  • WEB radio encoding: Icecast/Shoutcast, MPEG L3
  • Control and monitoring through WEB pages, monitoring via SNMP

Key features

  • Two balanced analog inputs, or one balanced analog input and output
  • Mic preamp with 12V phantom power on one input, selectable from front panel
  • Supports G711, PCM, and MPEG L3 audio formats
  • Standard RTP streaming, or Icecast/Shoutcast encoding in MPEG L3
  • Auxiliary data tunneling (serial data, 4 GPIOs)
  • Unicast, multicast, multi-unicast and multi-multicast (up to six destinations)
  • Configuration and monitoring from WEB pages, or through ASCII commands via TCP
  • Possibility to start/stop the stream via GPIs
  • Front panel headphones mini-jack
  • External power supply
