Digigram PYKO-OUT Stereo IP Audio Decoder

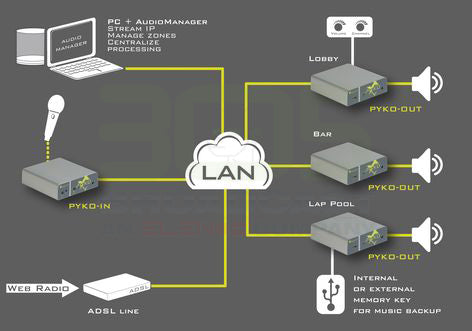

Key Workflow: audio over IP decoder for entry range studio to transmitter links (STL), as well as paging,  background music, and live announcement applications

At a glance

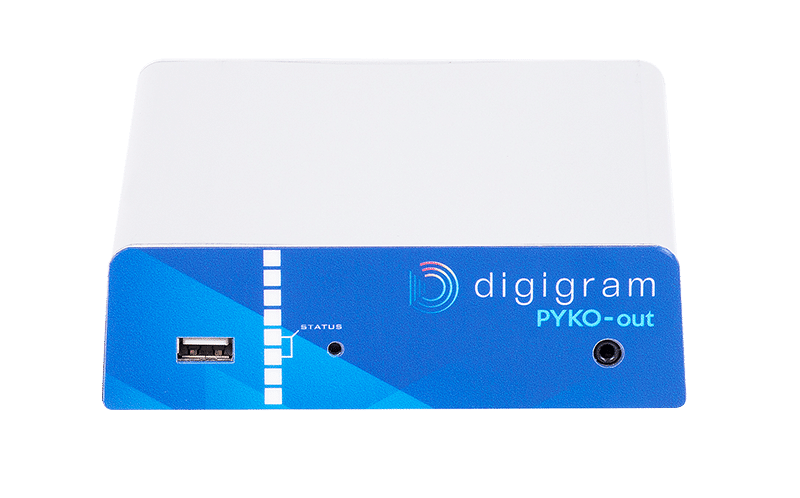

PYKO-out is a small form factor rack-mountable stereo IP audio decoder. It features two balanced analog mono outputs and a USB port for storing local playlists on a USB memory stick.

It decodes standard RTP streams in G711, G722, PCM, MPEG L3, or AAC-LC and HE AAC audio formats and allows for auxiliary data tunneling (serial data, and 4 GPI statuses). PYKO-out also  offers three decoding priorities with automatic failover, and can be remotely  controlled through ASCII commands sent through TCP.

• Stereo IP audio decoder
• Decoding of standard RTP streams and WEB radio streams (Icecast/Shoutcast)
• USB port for storing local playlists on a USB memory stick for local backup
• Three decoding priorities with automatic failover
• Control and monitoring through WEB pages, ASCII commands over TCP, and monitoring via SNMP

Key features

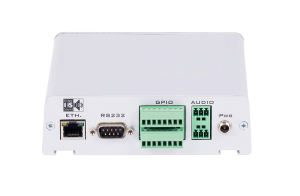

• Two balanced analog outputs (+18 dBu)
• One 10/100 Mbits/s Ethernet RJ-45 port
• Supports the following audio formats:  G711, G722, PCM, MPEG L3,  and AAC-LC and HE AAC  at 32 kHz
• Standard RTP streaming, or Icecast/Shoutcast
• Auxiliary data tunneling (serial data through RS232 port, 4 GPIOs)
• Unicast, multicast, multi-unicast and multi-multicast (up to six destinations)
• Configuration and monitoring from WEB pages, or through ASCII commands via TCP
• Possibility to start/stop the stream via GPIs
• Front panel headphones mini-jack
• External power supply
