Evertz 7881IRD-H264HD-LB Series

The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution.

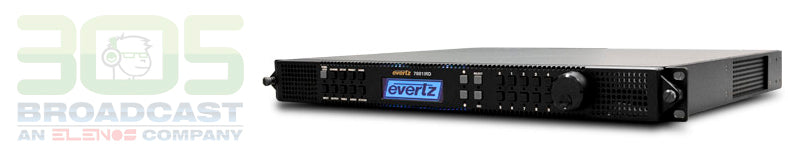

The 7881IRD-H264HD-LB is the basis of a professional platform for receiving, demodulating and decoding digital DVB-S/S2 satellite signals. With a compact, modular form-factor the 7881IRD represents one of the highest density and most flexible solutions in the industry. An innovative removable front control panel and 1RU chassis allow the IRD to be packaged in the traditional IRD form-factor, while maintaining all of the benefits of modularity.

Applications include signal reception for broadcasters, cable, DTH and IPTV providers, or any other small to large head-end operators who need to receive and utilize or re-distribute satellite content. The 7881IRD series provides ASI and IP outputs, ideal for turnaround, transcoding, monitoring or other applications where the received signal remains in the compressed domain. For baseband output, the 7881IRD utilizes an advanced decoder with support for both MPEG2 and H.264/AVC, SD or HD encoded signals, optionally up to 4:2:2 10-bit.

In addition to a quad-RF input, the 7881IRD also provides inputs for IP and ASI signals, making it a future-proof, universal reception platform for signals delivered over satellite, fiber and other network media.

Full monitoring and control of the IRD are relayed over SNMP, for convenient remote access using Evertz own VistaLINK® PRO SNMP monitoring and control package. Additionally, low-speed data support is provided for in-band control.

For applications requiring decryption, the 7881IRD provides a slot for installation of a customer supplied conditional access module. DVB-CI compliant conditional access modules and formats are supported.

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.


  • Modular design, allowing flexible configurations along with easy system reconfiguration and service

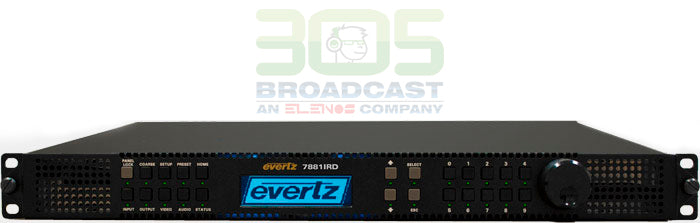

  • Mounted in the 7801FR and fitted with the 7801CP control panel, yielding a 1RU IRD with removable front control panel and optional redundant power supplies, all of which are hot-swappable and may be serviced without any decabling required
  • Up to two units may be mounted in the 7801FR and used with the 7801CP, providing a dual-IRD solution in 1RU
  • Future-proof with upgrade paths to support future modulation and encoding technologies
  • Standard support for advanced modulation schemes, including DVB-S2 with 16APSK and 32APSK
  • Flexible decoding of SD, and HD as standard
  • Support for encoding profiles from distribution to contribution grade, including H.264 in 4:2:0 8-bit and optional 4:2:2 10 bit formats, along with legacy MPEG2
  • Available DVB-CI slot for conditional access modules
  • Available BISS and BISS-E decryption

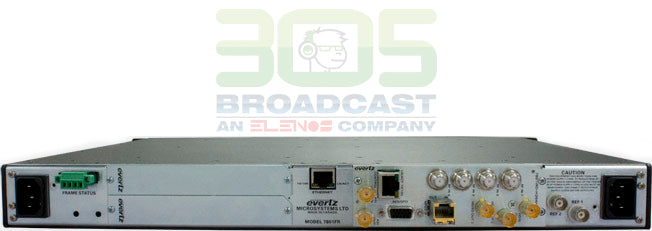

  • Flexible mid-stage access to compressed domain signals, including ASI and optional IP output along with ASI and optional IP inputs
  • Straight pass through or PID filtering/remapping of compressed stream outputs
  • Standard Dolby pass through and decode of Dolby AC-3 and MPEG2 Layer 1 audio
  • Optional decoding of Dolby E, Plus and AAC
  • Eight AES outputs
  • Optional Audio Video Monitoring (AVM) for audio mute and video freeze and black detection
  • Control through web-browser or SNMP using third-party application or Evertz' own VistaLINK SNMP control and monitoring software
  • Optional SCTE 105/34 translation
