Evertz 9782CXP

The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution.

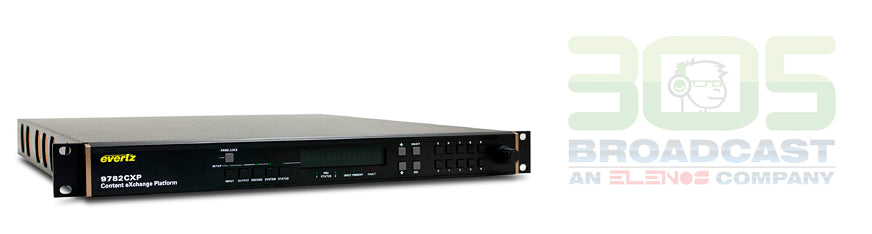

The 9782CXP Content Exchange Platform has been designed to deliver "best in breed" video and audio compression technology to lead the contribution market space, offering the very best video quality, latency and bandwidth utilization.

This flexible architecture offers both MPEG-2 and H.264 (MPEG-4 Part 10) user configurable video compression at up to 10-Bit 4:2:2 resolution concurrently, with compression latencies as low as 250 ms end to end. With up to four independent auto sensing HD/SD-SDI encoding paths the 9782CXP becomes an ideal compression solution for multi-channel, multi-codec, multi-format requirements.

The 9782CXP supports up to audio encoding of up to 16 channels per video path using a wide variety of audio compression cores including, but not limited to, MPEG1L2, Dolby-E/AC-3, AAC encoding and audio pass-through.

The encoder includes a dedicated control port that offers a built-in web server for quick and easy configuration, including true SNMP control from the award winning VistaLINK NMS when paired with a frame controller. For those mission critical applications, the 9782CXP can be smartly managed using the Evertz Compression Systems Manager (CSM) software which offers complete provisioning, monitoring and redundancy management of the contribution compression head end.

The 9782CXP Content Exchange Platform is fully feature upgradeable allowing for a cost-effective migration from a single channel contribution encoder to a quad channel encoder in-filed. This platform offers the best performance and versatility available from a world class contribution encoder.

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

  • Native HD/SD-SDI 8-Bit 4:2:0 video encoding as base compression engine
  • MPEG-2 and MPEG-4 AVC SD/HD 4:2:0/4:2:2 with up to 8/10-Bit encoding
  • Up to four independent compression paths support 16 channels of audio per path
  • Standard dual power supplies
  • Standard dual Gig-E Ethernet streaming outputs
  • Low latency mode contribution
  • Full 16 channels of audio encoding
  • BISS Encryption/Scrambling
  • Low latency mode contribution
  • Integrated multiplexing MPTS creation and onboard Forward Error Correction (FEC)
  • In field upgradeable design for "Pay As You Grow" Scalabilty
  • User friendly front panel control interface
  • Easy to use web browser interface and/or SNMP for configuration and control
  • Full integration with Compression System Manager software for automatic redundancy modes
