For-A HVS-350HS

The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution.




Compact, Full Range of Functionality, Affordable Switcher

Announcing a 1.5 M/E model in the FOR-A HVS-300HS Series of portable video switchers noted for plentiful functions and excellent cost-performance. The HVS-350HS is the video switcher pushing functionality and operability to new heights. Like the HVS-300HS, it offers a full range of functionality, including mixed HD/SD input, frame synchronizer, 2D and 3D wipe effects, DVE, keyer with chroma key (2 channels), DSK (4 channels), still stores (4 channels), picture in picture (2 channels) and 16-split multiviewer (2 channels). It retains the unique specifications that allow selection of operation style and can be used on all types of locations for almost anything (live, events, news, outside broadcasting vans, sports, editing, presentations, etc.). The HVS-350HS offers new innovations to the video switcher genre.



3U Compact Frame

Announcing a 1.5 M/E model in the FOR-A HVS-300HS Series of portable video switchers noted for plentiful functions and excellent cost-performance. The HVS-350HS is the video switcher pushing functionality and operability to new heights. Like the HVS-300HS, it offers a full range of functionality, including mixed HD/SD input, frame synchronizer, 2D and 3D wipe effects, DVE, keyer with chroma key (2 channels), DSK (4 channels), still stores (4 channels), picture in picture (2 channels) and 16-split multiviewer (2 channels). It retains the unique specifications that allow selection of operation style and can be used on all types of locations for almost anything (live, events, news, outside broadcasting vans, sports, editing, presentations, etc.). The HVS-350HS offers new innovations to the video switcher genre.



Frame Synchronizers

 A frame synchronizer function comes standard for input. This enables asynchronous signals to be switched as is. Aside from HD/SD mixed input, installation of option board supports asynchronous picture input, e.g. from PC. Also comes equipped with Proc Amp function capable of adjusting video level, chroma level, etc. of input signal.

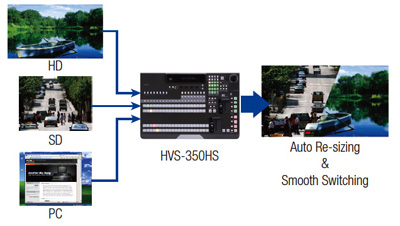

Re-sizing Engine

A re-size engine (expansion) is provided on 4 of the 8 standard inputs and the optional input board HVS-30HSDI. This achieves a fully mixed SD and HD environment with a switcher alone, with no need to connect an external device such as an up-converter. This is naturally suitable for re-sizing not only SD signals but also PC video.
(The HVS-30HSDI-A option does not have a re-size function)

Event Memory

When reading out events from current settings, you can call them up while assisting the transition to the event’s registered status. Freely set the events to be called up and the time to assist to the registered status. Doing the same thing with previous video switchers requires using a sequence function, a time-consuming job that includes selecting patterns. In contrast, the HVS-350HS can switch seamlessly to a recorded state with the same operation as the event memory, making this function very useful for live performances, etc.



2 keyer and 4 DSK

Two keyer channels and 4 DSK channels come standard. The keyer also has a chroma key function. And since the keyer and DSK each have their own dedicated 2D DVE, scale effects or other 2D effects can be individually added to them.



Abundant DVEs and Transitions

Besides the 2D DVEs that come with the keyer and DSK, two channels of 3D DVEs come standard. The 3D DVEs can be assigned freely, allowing you to assign them to the background as well as Keyer 1 and Keyer 2. Cut, mix and wipe can be chosen for the M/E bus transition. Only cut and mix are available for the P/P bus. Wipe patterns include 100 2D wipe patterns and 68 DVE wipe patterns such as page turn. Along with wipes, effects like mosaic and defocus are also provided.



4 Still Stores

Four still store channels are provided standard. Externally created still data can be sent to the main unit via Ethernet. Reading through USB memory is also supported when connected to HVS-35OU/ 35ROU/30OU. Backup function stores data internally and allows reading of saved data after restarting power. Supported file formats are JPEG, TGA and BMP.

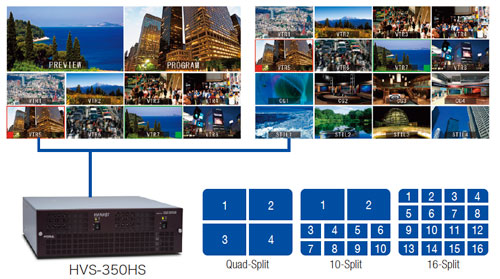

Dual Channels 4/10/16 Split Multi Viewer

A multiviewer function, capable of displays of up to 16 splits, comes standard with 2 channels. Supports 4-split, 10-split and 16-split display patterns. The ability to make different display patterns and channel settings for each ensures flexible operation. Display channels can be freely assigned, allowing assignment of not only input source but also output picture such as PGM or PREV. Each channel offers title display and tally display functions. With the addition of the AUX assignment function, all the channels from input to output can now be checked on the multiviewer.



2 Picture-in-Picture

Two channels of dedicated Picture-in-Picture (P-in-P) circuits are provided, separate from the wipe effect function. The picture can be enlarged, shrunk, repositioned, cropped or given a border. Register an operation in advance to a user button, and just that one button is all it takes to fade, slide or zoom in or out or perform other operations. Making full use of P-in-P, keyer and DSK 2D DVE lets you display P-in-P screen with up to 8 pictures.



Input/Output

HD/SD-SDI 8 input/8 output come standard. Support for mixed input of HD and SD signal comes standard. The 8 output channels include M/E PGM (1 channel), PGM (1 channel) and AUX (6 channels). AUX can be assigned for preview or multiviewer. Inputs and outputs can be expanded to 24 and 12 respectively. Aside from HD/SD-SDI, other inputs and outputs can be installed, including analog component, analog composite, DVI and RGB.

  • Support Formats;
    1080/60i, 1080/59.94i, 1080/50i, 1080/30PsF, 1080/29.98PsF, 1080/25PsF, 1080/24PsF, 1080/23.98PsF, 720/60p, 720/59.94p, 720/50p, 525/60 (NTSC), 625/50 (PAL)
