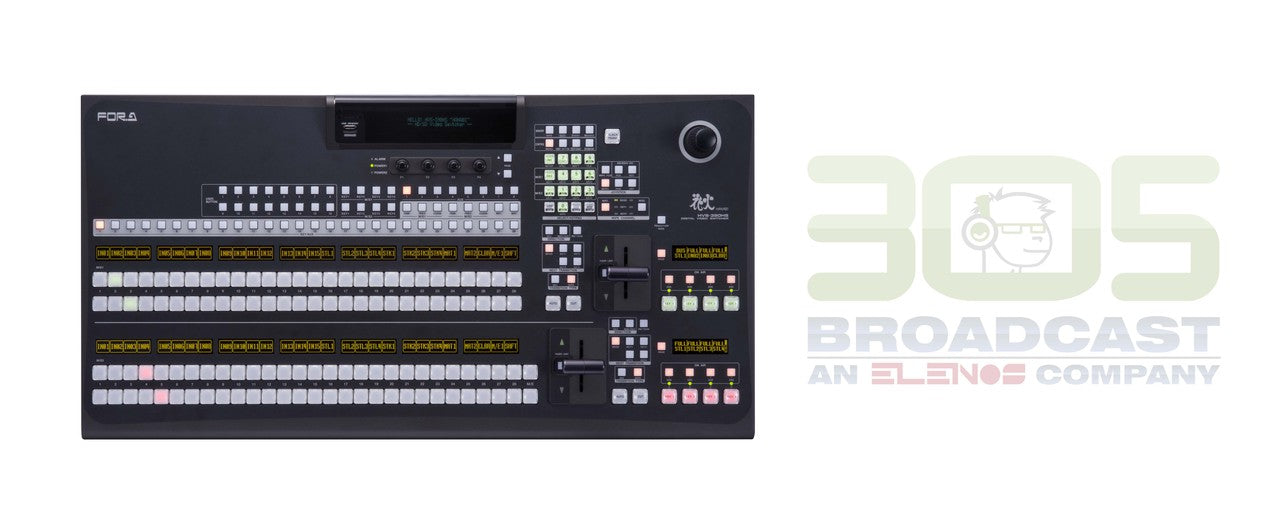

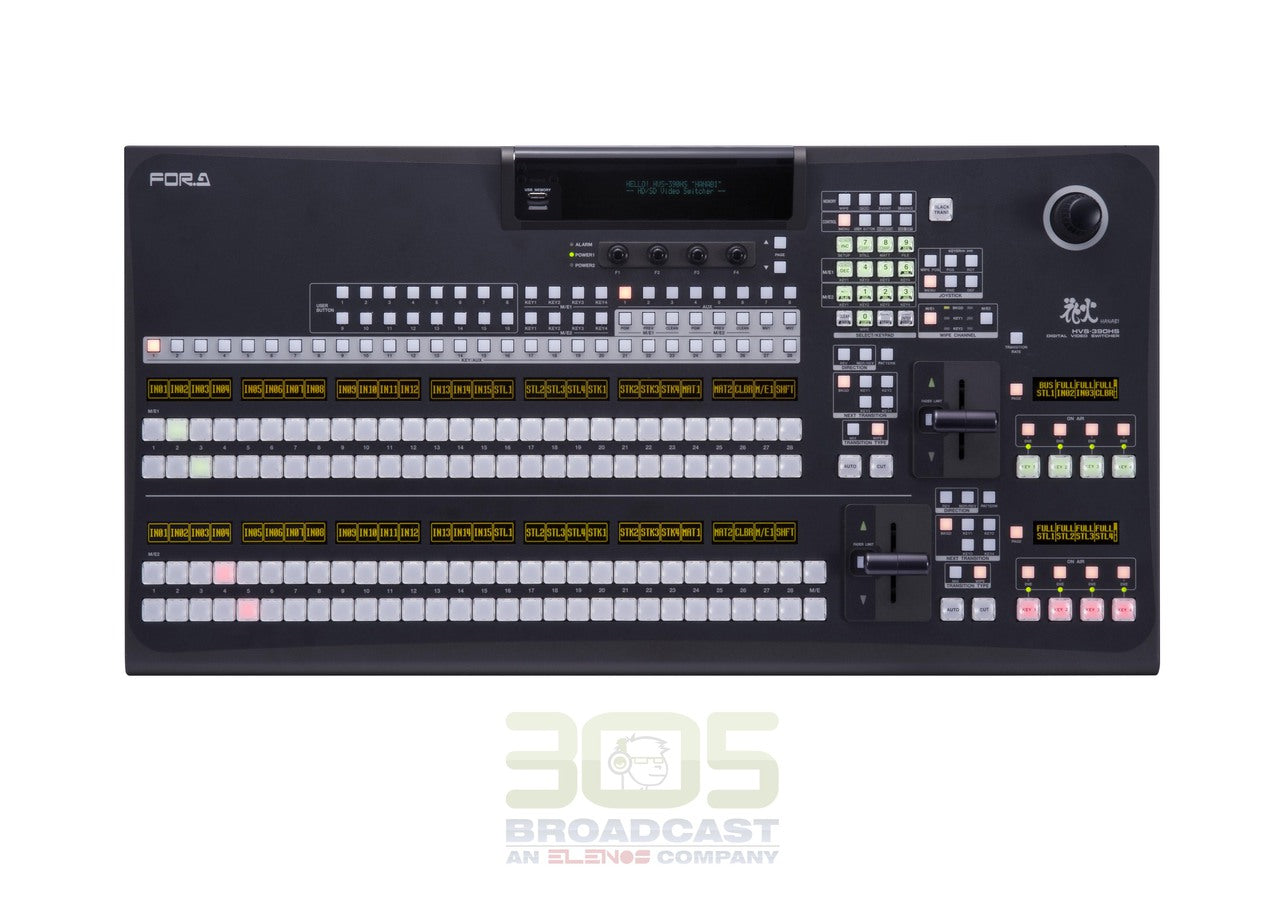

For-A HVS-390HS

HVS-390HS



The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution.



Overview

The HVS-390HS is the video switcher offering unparalleled broadcast reliability, performance and versatility with enhanced functionality and operability. Like the other HANABI series, it offers a full range of functionality as standard functions, including mixed HD/SD input, frame synchronizer, 2.5D and 3D wipe effects, DVEs, keyer with chroma key, DSKs, still stores, picture in picture and multi-viewers. In addition to them, the HVS-390HS offering an extreme choice in control surfaces; 6 control panels and 6AUX control panels are available. And more, featuring advanced AUX technology, the HVS-390HS has the capability to be a virtual 6 M/E unit. The unit can be perfect solution in all types of locations, including live events, sports, news studios, OB vans, editorial offices and presentation venues, making it the ideal tool for shaping the imaginative ideas of video creators.



Features:



Advanced AUX- Virtual 6M/E

While the HVS-390HS has a full powered primary Mix Effects (M/E), FOR-A offers the first switcher system to use Advanced AUX technology. Operators and technical staff will appreciate the capabilities of a virtual 6M/E switcher. With Advanced AUX technology any AUX bus can be used like never before… and AUX output can cut, mix, wipe, key and move graphics with a DVE.



A dozen DVE channels

The HVS-390HS has 8 channels of 2.5D and 4 channels of 3D DVE. Twelve channels of DVE means you don’t need to float DVEs as you should have enough for any production need. All twelve channels are included, no extra charge. Some other suppliers, ask you to pay for enough DVEs or only provide 4.



2 Keyers and 2 DSKs

Further proof of the power of these new small mixers is that they come as standard with 2 keyers, 2 DSKs and 4 powerful 2.5D DVE engines. An advanced, high quality Chroma keyer can be assigned to any one of the two M/E Keyers or two Downstream Keyers. The 4 powerful DVE engines, can be assigned to any keyer or used for transitions etc, and with their standard 2.5D ability, allows flexible creativity for the operator to enhance productions.



Animation playout (CG wipe): with picture of CG wipe

The HVS-390HS can store and playout from an internal 4 channel media player. Why not free up your external clip player(s) and let the ‘no extra charge’ internal media player replay those animated bugs or integrate your animations into transition opens and closes. Your wipe transitions will really get noticed as the animation becomes part of youn A/B wipe.



Operation via Web browser

The ability to set up, adjust and operate the HVS-390HS via a Web browser, from a PC, Mac, or tablet device, over Ethernet, is included at ‘no extra charge’.
This also allows easy recalling and editing of macros, key-frame sequences and event memories. The Web browser control also displays thumbnails of stills loaded to still stores. This easy to use software control can be used as at secondary operational positions, or as an AUX control for TD or director.



Powerful outputs! - All at the same time

With Advanced AUX plus technology, we provide a virtual 6M/E production switcher. You can even also use AUX bus 7 and 8 as a Half M/E (Program/Preset bus) complete with mix transitions and up to 4 DSK's.



Standar Features:

  • 4 x Keyers on each M/E, including 2 high quality Chroma keyers, can be used as keyers and/or Picture in Picture
  • Freely assign up to 4 x keyers to an AUX output or M/E output (2 from M/E 1, 2 from M/E 2)
  • All keyers include DVE with resize and perspective/tilt, etc. (2.5D)
  • 2 x 3D DVEs on each M/E for background and keyer transitions
  • CG Wipe engine on each M/E offering animated wipe/mix transitions
  • ‘Next transition’ including direction for all keyers and background on each M/E, as well as FOR-A’s On-Air programmable transition section
  • Included Web Browser GUI gives total control and set up from a connected device such as PC, Mac, or Tablet, etc.
  • FTP access for stills and clip sequences, plus built-in USB for stills
  • Increase the number of stills by using spare inputs as extra still stores
  • The Web Browser provides an easy way to edit: Macros, Event Memories and key-frame sequences
  • Industry leading color correction with 2 per M/E, assignable for inputs or entire bus
  • 4 clip store capability with up to 60 frames in each clip store (HVS-39MEM option provides 120 frames)
  • Option to save stills and clips to internal memory (HVS-39MB)
  • Redundant PSU for both Main and Control Panel available, hot-swappable from the front of the MU
  • Safe-area generator and audio monitoring are selectable and adjustable per window on internal multi-viewer layouts
  • 2 x Multi-viewer outputs in HD Mode, each with selectable layouts
  • Standard interface for multiple external device control, including audio mixers, routers, and VTR/VDCP units via RS-422 and VDCP
  • Individually switchable frame synchronizer on each input
  • 4 x Upconverters are standard—expandable to 12
  • 16 inputs are standard, expandable to 24 with optional HD/SD-SDI, DVI, VGA, composite or component cards
  • 8 outputs plus 1 x HDMI output are standard, expandable to 13 with optional HD/SD-SDI, DVI, VGA, composite or component cards
  • Depending on configuration and usage, HVS-390HS has a minimum delay of 1 line in HD
  • Up to 100 m BNC cable can be used to connect Mainframe and control panel
  • Dedicated Black Burst or Tri-Level sync output
