SKU0167

For-A UFM-30UDC



The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution.





We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

UFM-30UDC

3G/HD/SD Up/Down/Cross Converter

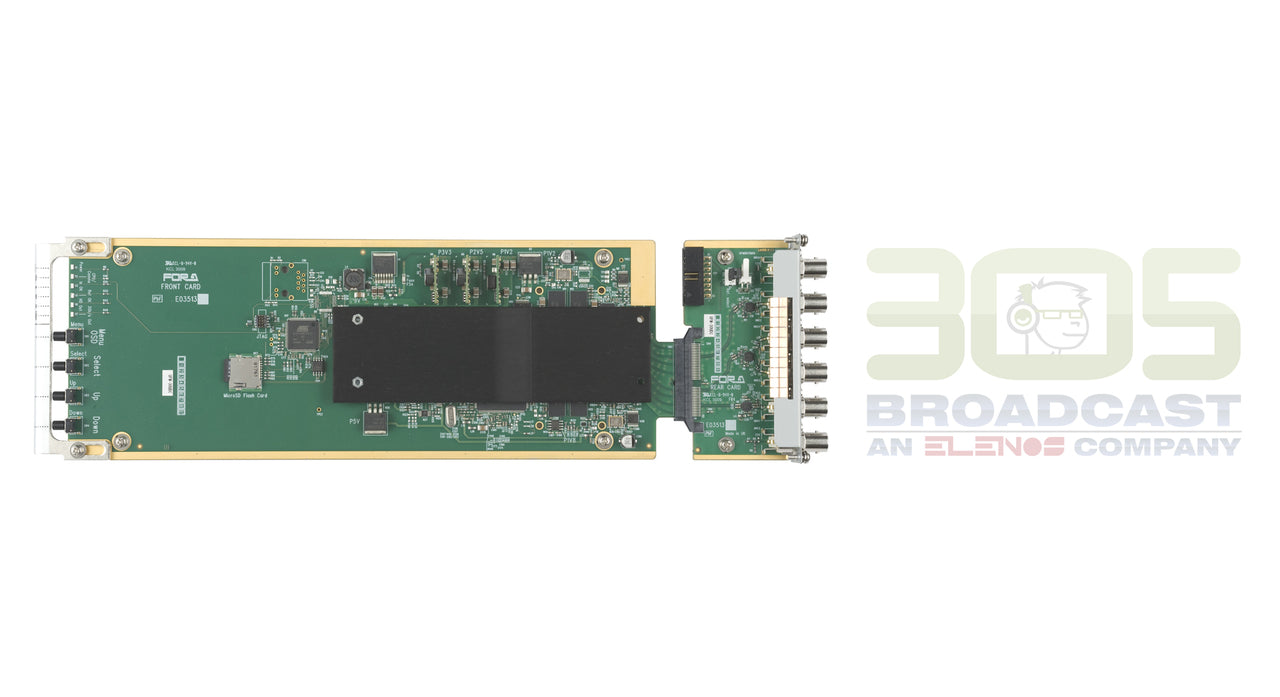

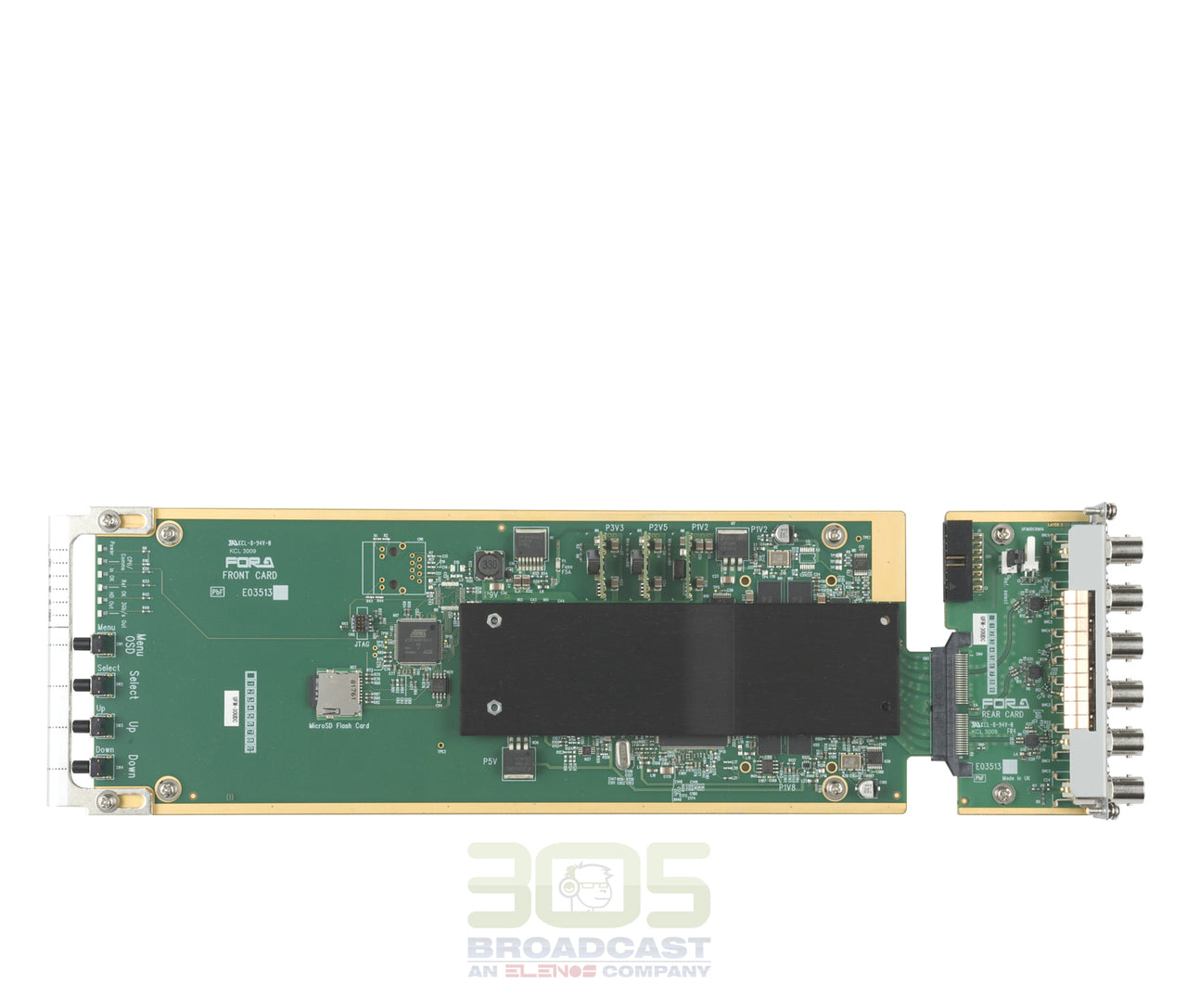

UFM-30UDC is an up/down/cross converter, which can be mounted on a UFM frame. It is standardly equipped with next-generation broadcast signal interface 3G-SDI and it allows users to convert video signals in a wide variety of formats.



Features

  • Up/down/cross converter equipped with 3G/HD/SD-SDI input/output
  • 3G Level A and Level B supported
  • 3G/HD/SD-SDI 1 input / 2 outputs and analog composite 1 input
  • Additional 3G/HD/SD-SDI output for preview use
  • Analog composite output for displaying menu (monitoring also possible)
  • Up to 8 channels embedded audio input/output
  • Frame synchronizer
  • Aspect ratio converter
  • On-Screen Display (OSD) available on Preview output
