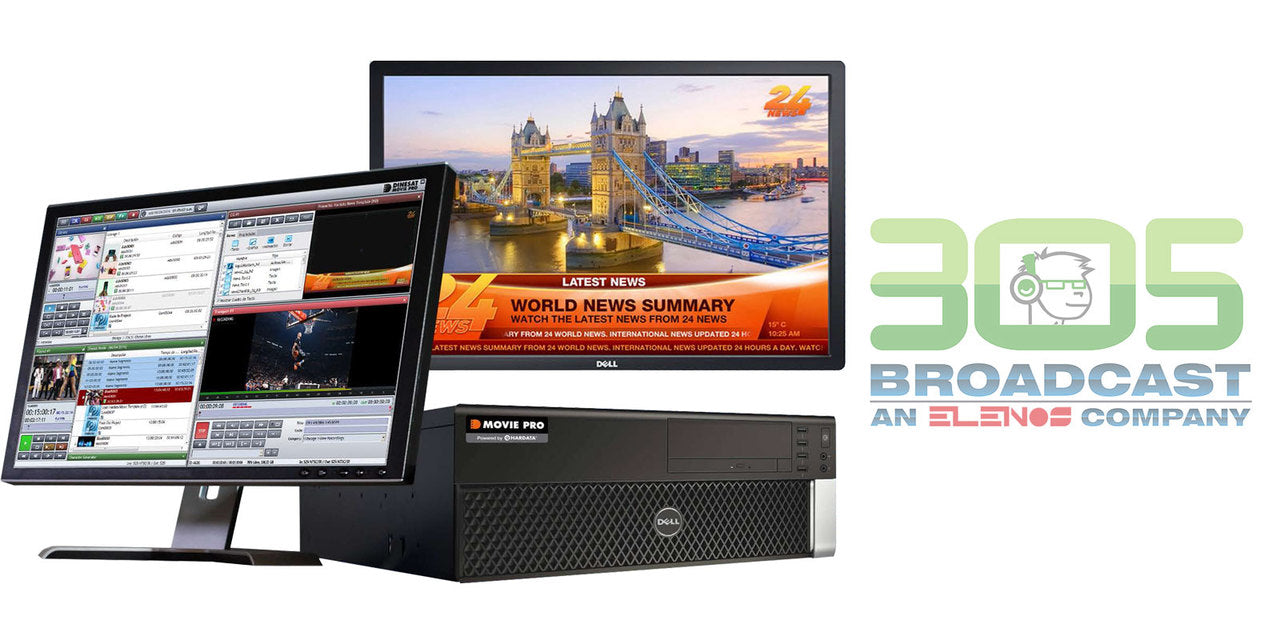

HARDATA MOVIE PRO

Multi-Purpose and Cost Efficient Video Server for Production and PlayOut environments

° Live Input

° Ingest Input

° Playout Output with Playlist

° Multi-Layer Graphics

° Streaming



Unpack, Connect, On-Air

Very flexible, easy to install and extremely user friendly. Its dynamic GUI and the Dual Graphic output allows the operator to customize the control layout by adjusting Media, REC, PLAY and CG windows according to what he needs to accomplish. The user may combine SD and HD content on the same timeline and MOVIE PRO will manage both, adapting them to the output format by using real time on-the-fly conversion to ensure safe, accurate and high quality playout. The CG allows insertion of graphics and animation – including time and temperature, external file text and metadata and it supports a wide range of standard graphic file formats. And finally, MOVIE PRO allows you to take your SDI playout, produce a high quality video streaming and publish it to the web.

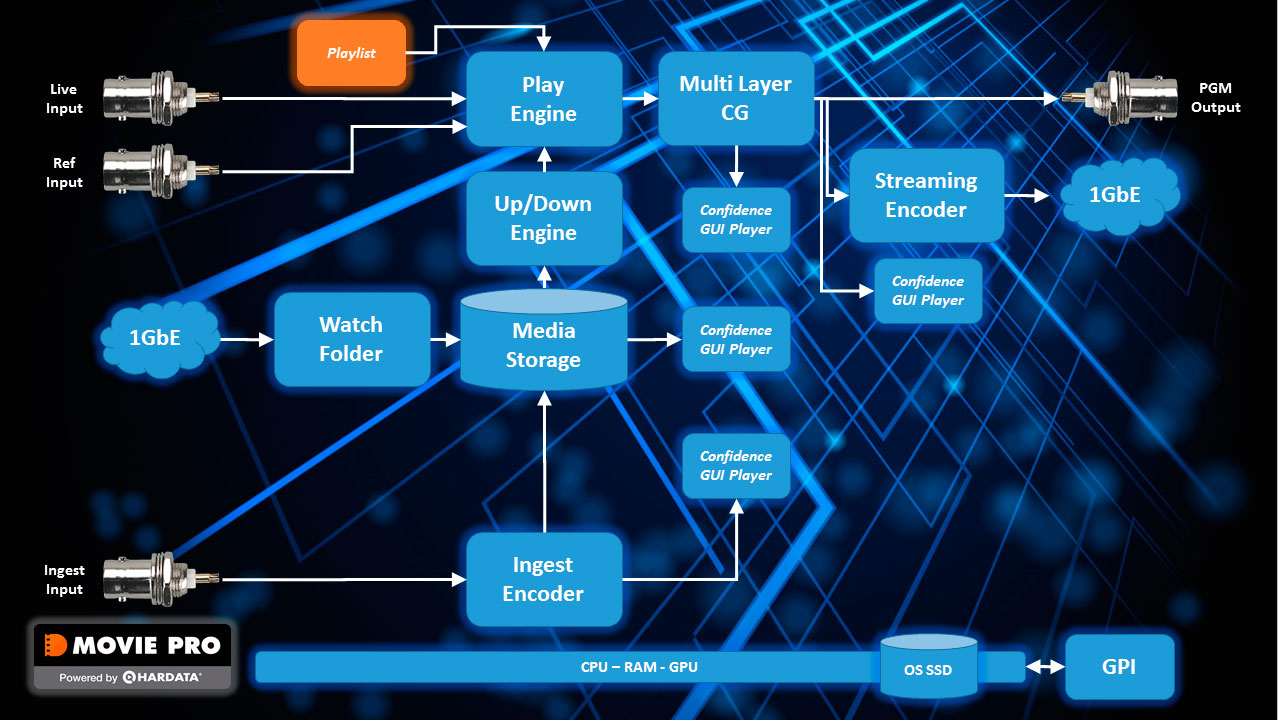

Main Features and Option

• SD/HD-SDI with Embedded Audio In/Out (Optional Analog I/O)
• 1 Live Input with CleanSwitch to Internal Playout
• 1 Ingest Input with VA monitoring confidence
• 1 Playout Output with Playlist
• 1 Multi Layer Graphics
• 1 Streaming Output
• Watch Folder support
• Playlist Features:
- Manualy created Playlist
- Import Playlist from Traffic (it may require integration)
- Programmable secundary Events
- Three Playout Modes
• Dedicated programmable control Keyboard (Optional)
• GPI interface (Optional external GPI interface)
• Social Media on TV (Optional Plug-In)



Hardwre Configuration

• Dell Precision Workstation
3 Years ProSupport with Next Business Day Onsite Service
• PS: Single 685W (100 VAC to 240 VAC) with a max heat dissipation of 2750 BTU/Hr
• CPU: Single Xeon
• RAM: 16GB
• OS: WIN7 64 PRO
• GPU: Nvidia Quadro Dual Head
• I/O: Two BlackMagic 4K SDI
• Storage OS: SSD 256GB
• Storage Media: HDD 4TB SATA (8TB optional)
• ETH: 1GbE
• Standard Keyboard & Mouse
• Shipping dimensions & weight: 24x21x15 inches @ 40.1lbs (18.19Kg)
