HARDATA SMART FLOW 11230
Storage + Media Asset Management
HARDATA SMART FLOW series servers come with high-capacity storage and a MAM content management interface. This provides additional storage of digital files for the PLAYOUT and SMART server systems.
Video ingested on the INGEST 2320 servers can be automatically transferred to a SMART FLOW server, where a low-resolution proxy file is automatically generated.
By using HARDATA OFFICE workstations or through the multi-platform web access, you can manage content, visualize proxy copies, insert marks and tags for edition or programming, upload and download materials, perform advanced searches, or transfer materials between components of the Ecosystem.
At the same time, by programming each station or modifying the playlist, the SMART FLOW system will automatically copy the changes to the playout server and synchronize all the materials in the playlist.

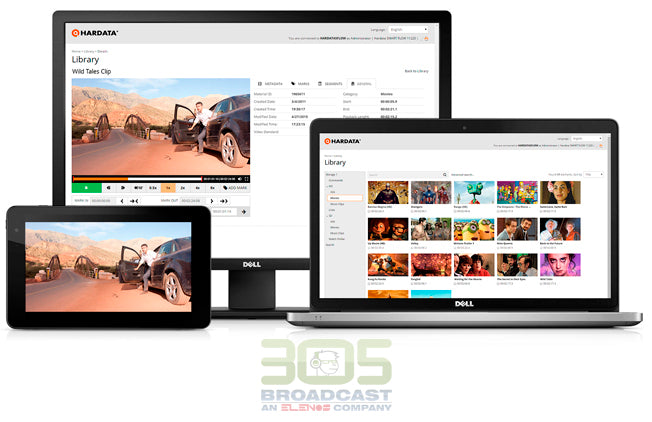

A powerful multiplatform web access tool that allows you to access the advanced features of the HARDATA SMART FLOW. From any device you can advanced search for materials, preview, add multiple marks and tags and download full materials or just segments between marks.

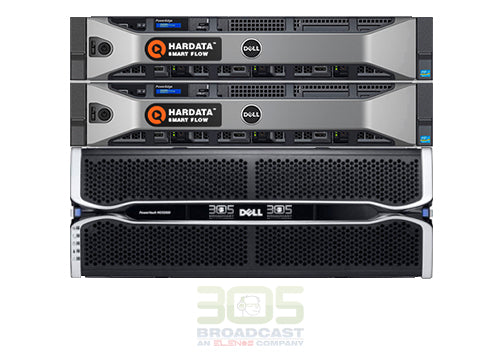

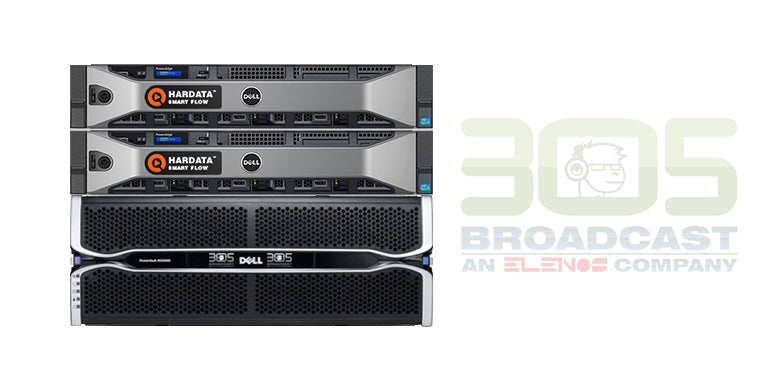

HARDATA SMART FLOW 11000 Series
High Storage Capacity
|PLATFORM HARDATA SMART FLOW ||11220 ||11230 ||11240|
|Rackmount Dell Server ||2U ||2U ||2U|
|Hot Swap Redundant Power Supply ||Yes ||Yes ||Yes|
|Hot Swap Disks Array ||Yes ||Yes ||Yes|
|HDDs ||12 x 2TB ||9 x 4TB ||12 x 4TB|
|Storage Array ||Raid 6 ||Raid 6 ||Raid 6 |
|Storage ||20TB ||28TB ||40TB |
|SD Storage (H.264 @ 3 Mbps) ||14000 hrs ||20000 hrs ||28000 hrs|
|HD Storage (H.264 @ 6 Mbps) ||7000 hrs ||10000 hrs ||14000 hrs|
|Networking ||4x1GbE ||4x1GbE ||4x1GbE|
Supported File Formats
|FILE FORMATS || ||VIDEO CODECS || ||AUDIO CODECS|
|MXF ||MOV / QuickTime || ||DV ||MPEG-4 || ||PCM|
|LXF ||AVI || ||DVCPRO ||H.264 / AVC || ||MP2|
|GXF ||DV || ||DVCPRO HD ||H.265 / HEVC || ||MP3|
|MPEG-TS ||XDCAM || ||M-JPEG ||ProRes || ||AAC|
|MPEG-PS || || ||MPEG-1 ||DNxHD || ||AC-3|
|MP4 || || ||MPEG-2 || || || |
