Hardata SMART Flow 11240

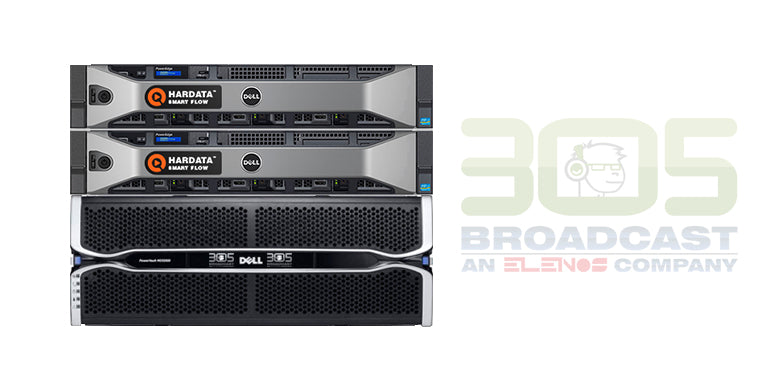

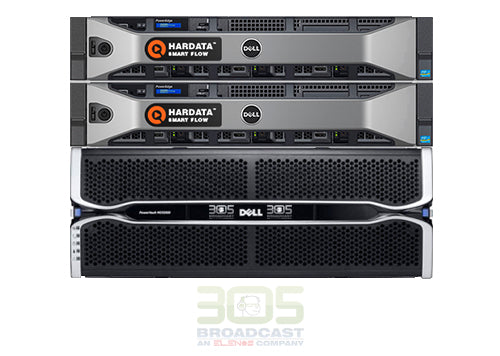

HARDATA SMART FLOW 11240

Storage + Media Asset Management



HARDATA SMART FLOW series servers come with high-capacity storage and a MAM content management interface. This provides additional storage of digital files for the PLAYOUT and SMART server systems.

Video ingested on the INGEST 2320 servers can be automatically transferred to a SMART FLOW server, where a low-resolution proxy file is automatically generated.

By using HARDATA OFFICE workstations or through the multi-platform web access, you can manage content, visualize proxy copies, insert marks and tags for edition or programming, upload and download materials, perform advanced searches, or transfer materials between components of the Ecosystem.

At the same time, by programming each station or modifying the playlist, the SMART FLOW system will automatically copy the changes to the playout server and synchronize all the materials in the playlist.

SMART FLOW Ecosystem

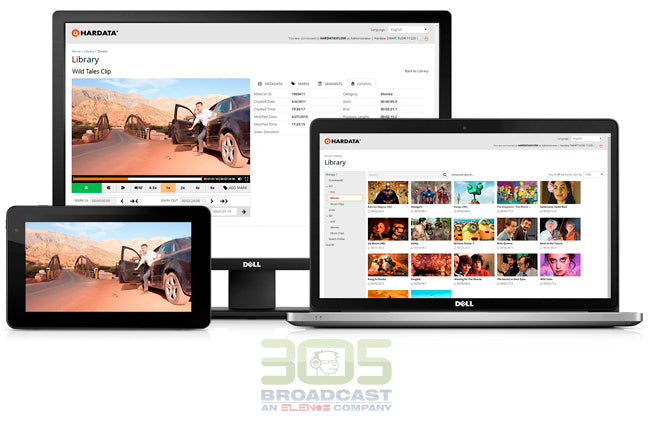

WEB ACCESS

A powerful multiplatform web access tool that allows you to access the advanced features of the HARDATA SMART FLOW. From any device you can advanced search for materials, preview, add multiple marks and tags and download full materials or just segments between marks.



HARDATA SMART FLOW 11000 Series
High Storage Capacity

PLATFORM HARDATA SMART FLOW 11220 11230 11240
Rackmount Dell Server 2U 2U 2U
Hot Swap Redundant Power Supply Yes Yes Yes
Hot Swap Disks Array Yes Yes Yes
HDDs 12 x 2TB 9 x 4TB 12 x 4TB
Storage Array Raid 6  Raid 6  Raid 6
Storage 20TB  28TB  40TB
SD Storage (H.264 @ 3 Mbps) 14000 hrs 20000 hrs 28000 hrs
HD Storage (H.264 @ 6 Mbps) 7000 hrs 10000 hrs 14000 hrs
Networking 4x1GbE 4x1GbE 4x1GbE


Supported File Formats

FILE FORMATS   VIDEO CODECS   AUDIO CODECS
MXF MOV / QuickTime   DV MPEG-4   PCM
LXF AVI   DVCPRO H.264 / AVC   MP2
GXF DV   DVCPRO HD H.265 / HEVC   MP3
MPEG-TS XDCAM   M-JPEG ProRes   AAC
MPEG-PS     MPEG-1 DNxHD   AC-3
MP4     MPEG-2
