Henry Engineering LOGICONVERTER™ - UTILITY CONTROL LOGIC INTERFACE

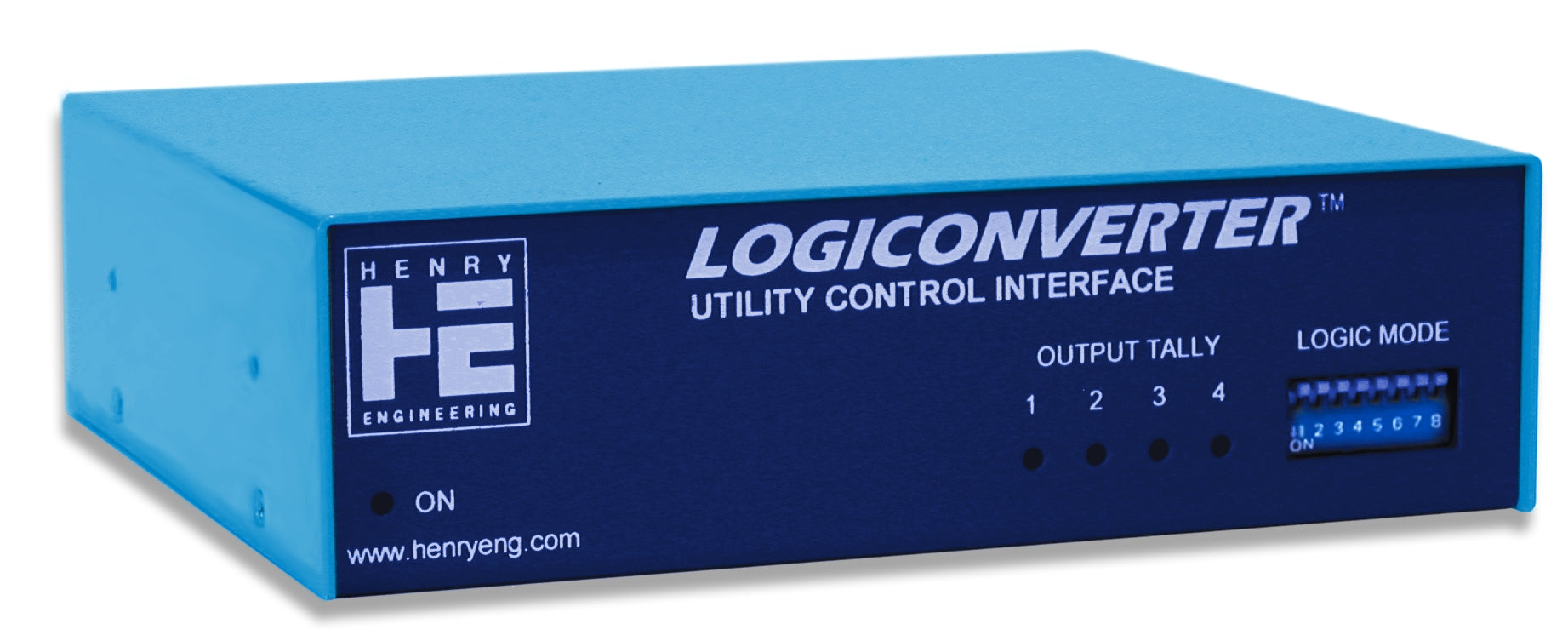

LogiConverter is what you need when “you can’t get there from here”, control-wise. It makes things compatible, reliable, and safe. Don’t risk damaging your equipment because of incompatible control voltages or topology!

LogiConverter is a general purpose control interface that eliminates the incompatibility between various audio and video equipment remote control circuits.

TLogiConverter has 4 opto-isolated inputs that control 4 isolated relay outputs. The unit can be programmed to provide either latched or momentary outputs from either continuous or momentary inputs with up to 24 combinations possible. A single input can provide single or dual “flip-flop” outputs; two inputs can latch and reset an output.

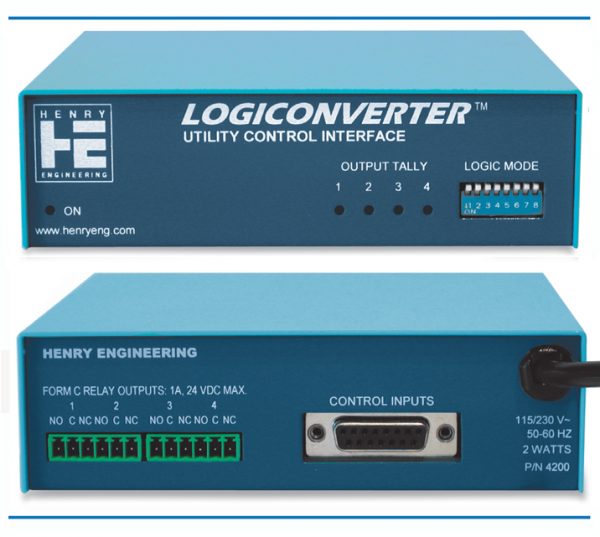

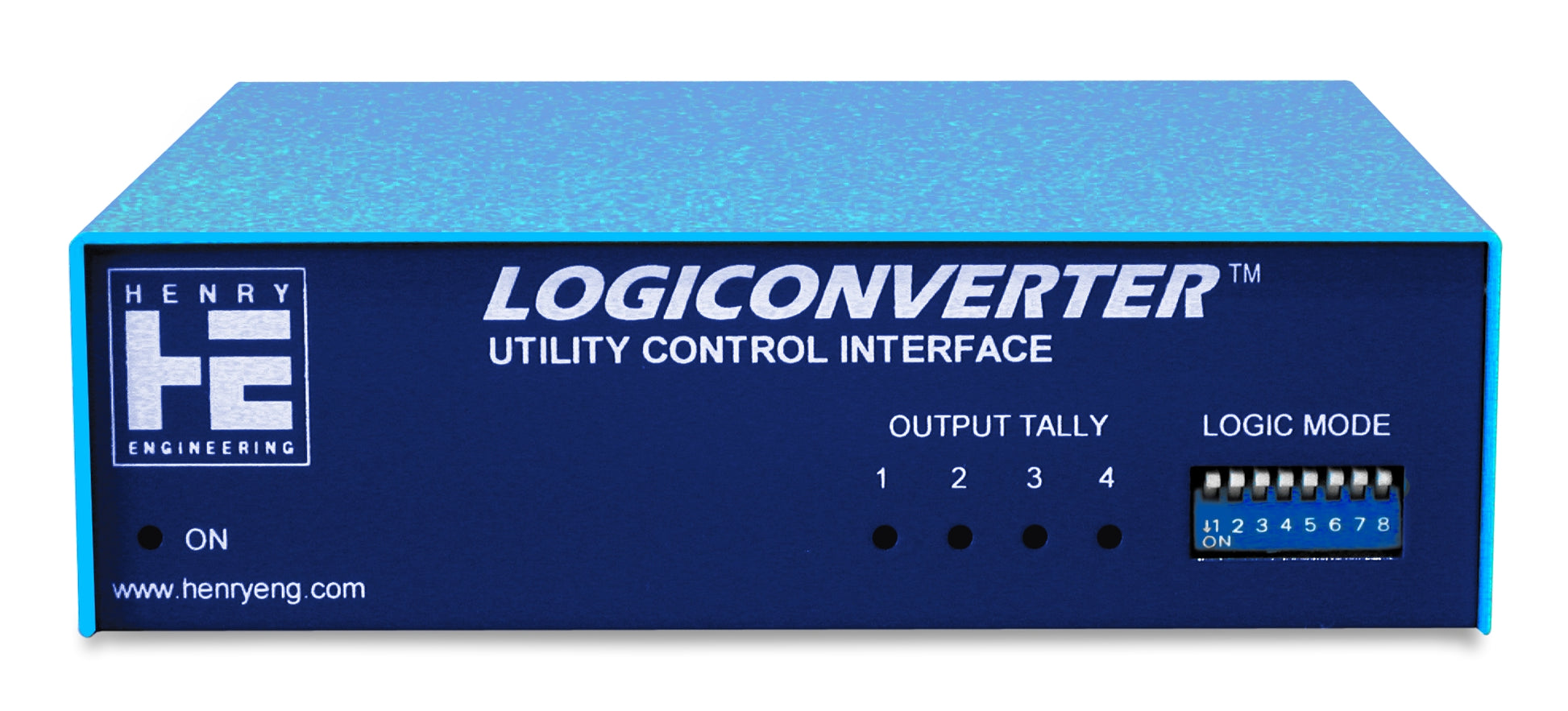

Logic modes are selected by front-panel switches; LEDs indicate the output status of the four logic channels. Inputs can be any DC voltage from 5-24 vdc, TTL or CMOS logic outputs, open collectors, or contact closures. Inputs are via a 15-pin D connector; relay outputs are via plug-in euroblock connectors.

Logic converter
