Henry Engineering MULTIPHONE GUEST POD II™ - HEADPHONE AMPLIFIER WITH TALENT CONTROL


Henry Engineering MULTIPHONE GUEST POD II™ - HEADPHONE AMPLIFIER WITH TALENT CONTROL

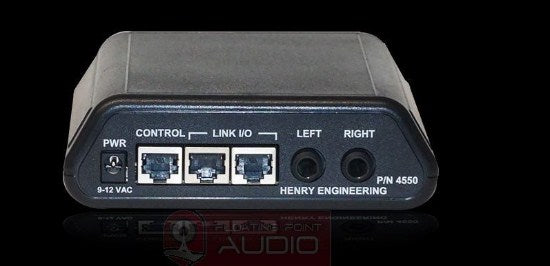

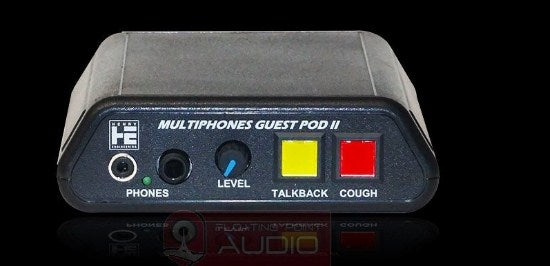

The MultiPhones Guest Pod II is a compact stereo headphone amplifier for broadcast studios and other professional sound installations. The Guest Pod II can be used with a MultiPhones II Master unit or by itself as a stand-alone headphone listening station. In either case, multiple Guest Pods can be linked using cat5 cabling to produce a multi-user headphone listening system. The front panel of the Guest Pod II includes a volume control, both 1/4” and 3.5mm headphone jacks, and two user-assignable illuminated pushbuttons. These buttons are typically used for talent Cough (mic mute) and Talkback functions. When Guest Pods are used with a MultiPhones II Master unit, audio and power are supplied by the Master. Each Guest Pod has two RJ45 I/O jacks so that multiple units can be “daisy chained” together. Up to 12 Guest Pods can be supported by one MultiPhones Master unit.

Specifications
• Audio Input, RJ45 From MultiPhones Master
• Audio Input, TRS 0 dBu nom, stereo, 10K balanced
• Frequency Response 5Hz – 20 kHz, +/- 0.25 dB
• Distortion .005% typical
• Output For 24 - 600 ohm headphones
• Cough/Talkback buttons Momentary SPDT w/ LEDs
• Power Requirement MultiPhones Master or 9-12VAC, 50ma
• Physical 5.75”w X 1.75”h X 6.0”d, 1 LB
• Mounting Plate (Opt.) 5.5”w X 1.5”h; 6.0”d behind panel
• Mounting Plate cutout 4.5”w X 1.0”h

diagram
