- Uninterrupted monitoring of streaming online radio performance
- Balanced Analog L/R and AES digital program line outputs
- Automatically decodes and displays live metadata for MP3, Ogg Vorbis and AAC formats: Station ID, Song/Program Info, Quality (format and bitrate)

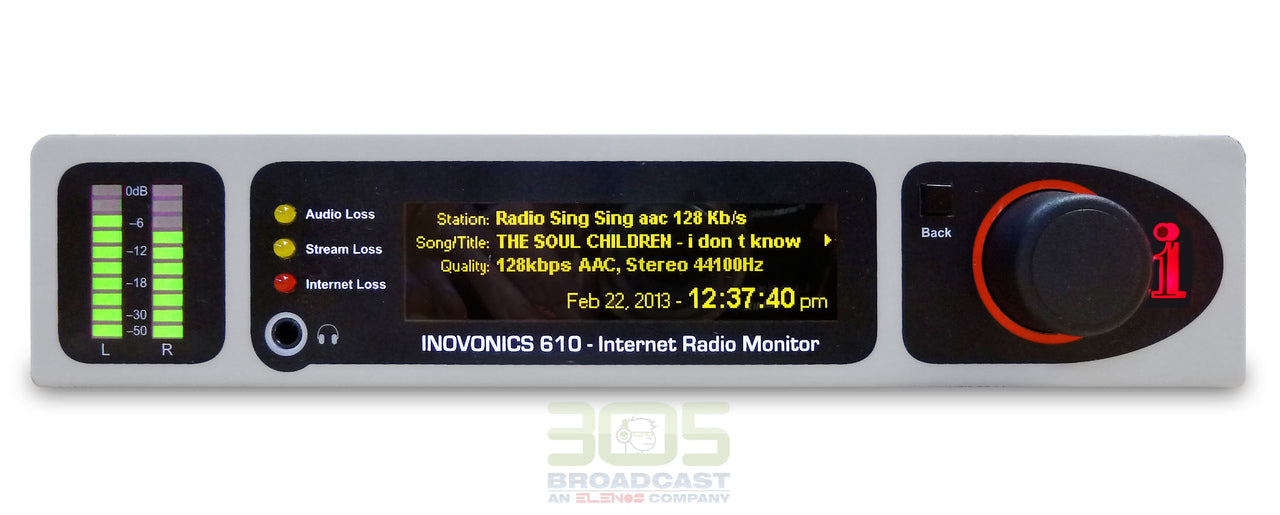

- Easy setup & control via front panel OLED screen and jog-wheel
- Local alarm ‘tallies’ plus self-logging alarms continuously check for Audio Loss, Stream Loss and Internet Loss
- Stays locked to your stream even if the signal or power is lost.
- Works with SHOUTcast, ICEcast and many more.
- Alerts sent to multiple personnel via e-mail and/or text messages
- Full function 'responsive' Web interface works on desktop and mobile devices
NEW WITH Rev 2.0
- SNMPv2c (Simple Network Management Protocol) support for interfacing with existing IP based remote control systems
- Can send email reports as daily log, weekly log, monthly log.
- Email alerts for up to 10 recipients, with the ability to choose the types of alarms sent to each recipient.
LAN (RJ-45) jack accepts universal TCP/IP connection to Local Area Network, and via router to the Internet.
POPULAR STREAMING FORMATS SUPPORTED
Icecast and SHOUTcast streaming formats using these encoding standards and rates
MP3 (32kbps – 320kbps)
Ogg Vorbis (32kbps – 500kbps)
AAC (32kbps – 384kbps).
Station (streamer’s ID)
Song/Title (artist and title or program name)
Quality (streaming rate, encoding format, mono or stereo and original sampling rate)
PROGRAM AUDIO OUTPUT(S)

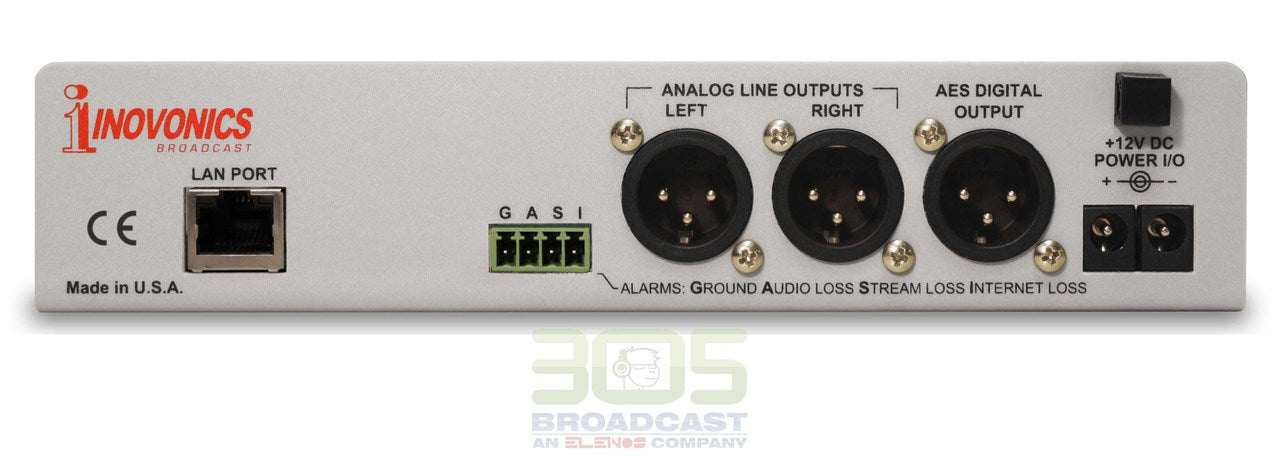

+4dBu balanced analog Left/ Right (XLR), 200-ohm source impedance; AES digital (XLR), 48kHz sampling rate; Front-Panel Headphone Jack (3.5mm TRS), adjustable.
Individual open-collector NPN transistor outputs for Audio Loss, Stream Loss and Internet Loss.
12VDC at 450mA (2.1mm x 5.5mm coaxial); a ‘wall-outlet transformer’ (WallWart®) switching- type power supply appropriate to the destination AC mains voltage is provided.
An optional rack adapter mounts one or two 610s in a standard 19-inch 1U rack space.
SIZE AND WEIGHT
1.6”H x 8”W x 6.”D; 5 lbs. shipping weight.
