Inovonics 673 INOmini FM/RDS Monitor/Receiver

Inovonics 673 INOmini FM/RDS Monitor/Receiver

$972.00 USD
$1,080.00 USD $972.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.


Inovonics 673 INOmini FM/RDS Monitor/Receiver

The INOmini 673 is Inovonics’ second-generation, small form-factor FM broadcast monitor for professional applications.

A sensitive and selective off-air receiver for standard analog-FM broadcasts, it has application as a ‘confidence monitor’ or as a rebroadcast receiver in FM translator service. The 673 decodes and displays the most important data from RDS/RBDS data groups as well.

The INOmini 673 gives front-panel and remote alarm indications of program and RDS transmission errors. It can also deliver a high-quality audio feed for program distribution throughout the broadcast facility with adjustable analog and AES digital audio outputs.

Features


  • This sensitive and selective DSP-based (SDR) receiver has extended band coverage down to 64MHz.

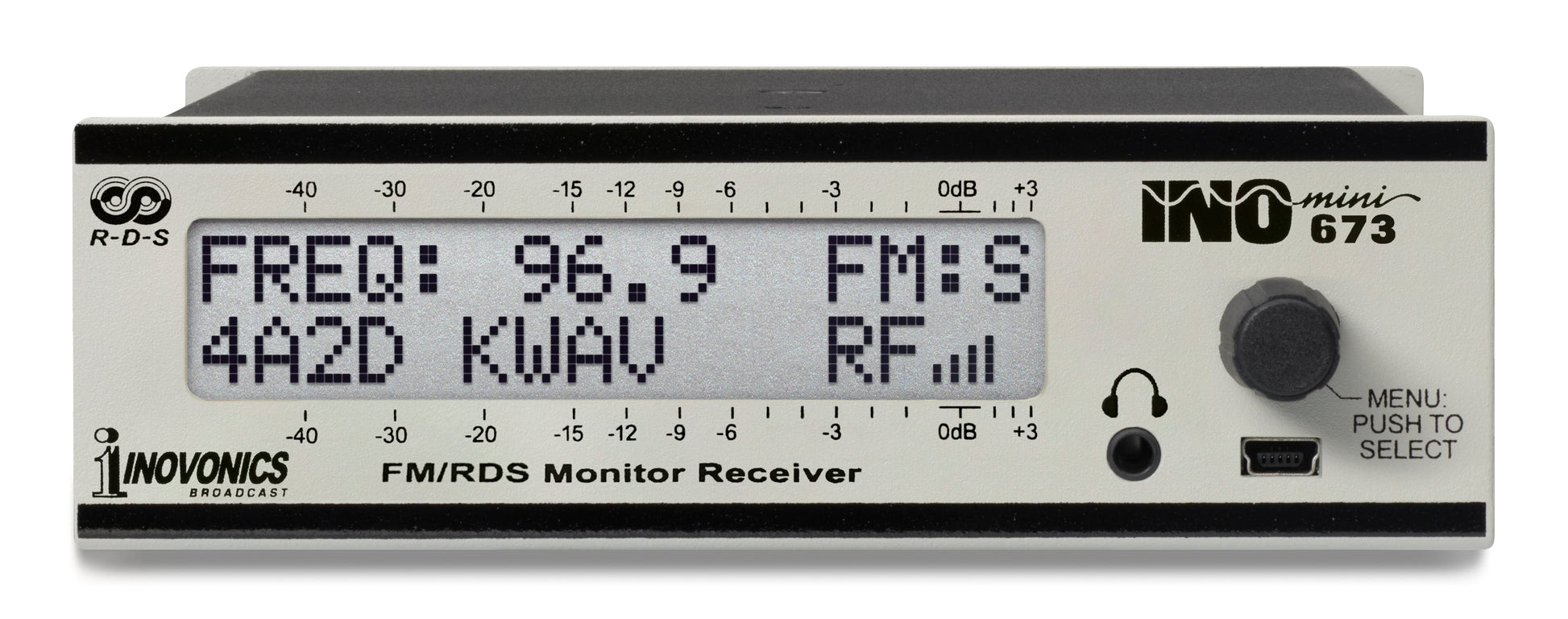

  • Easy front-panel setup uses jog-wheel menu navigation with a large LCD display. Accurate, hi-res metering shows RF signal and audio levels; critical system menus are hidden.

  • Front-panel display of most-essential RDS/RBDS information including RT+ ‘tagging’ data.

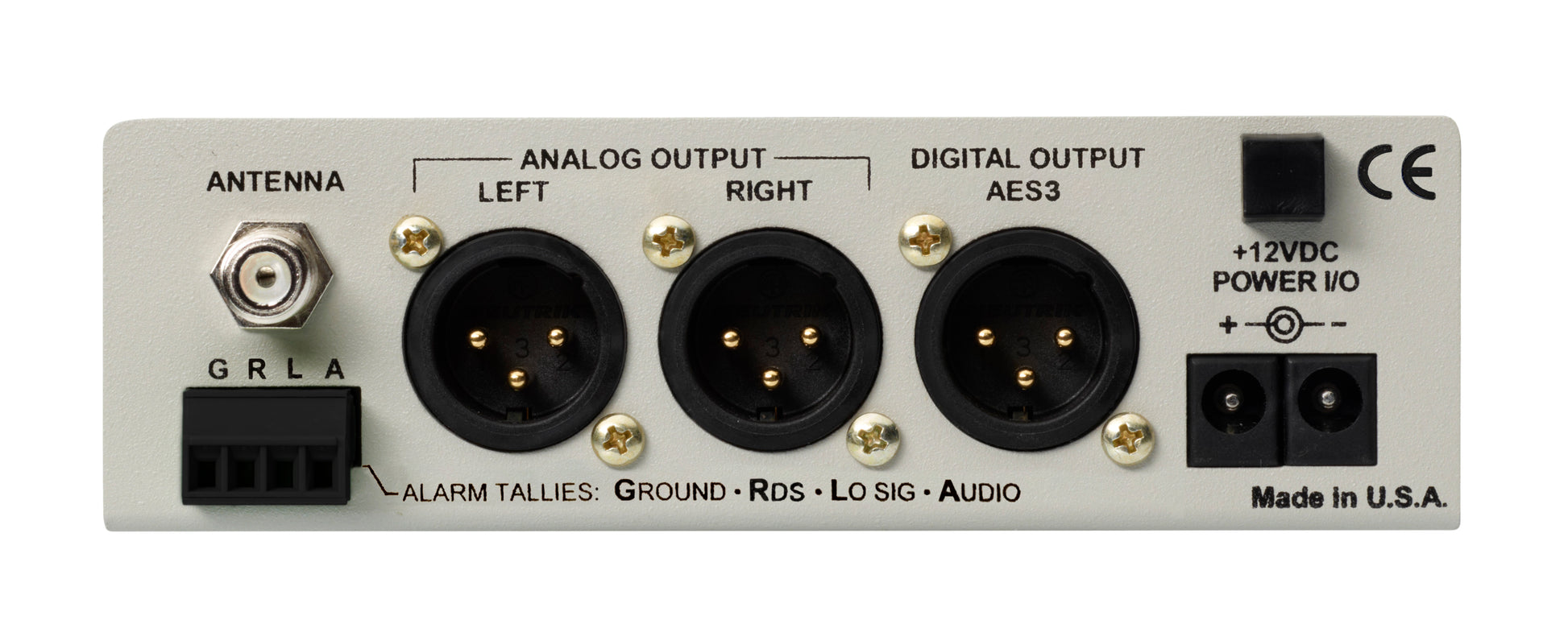

  • Balanced analog and AES-digital program line outputs are available simultaneously; levels are independently adjustable.

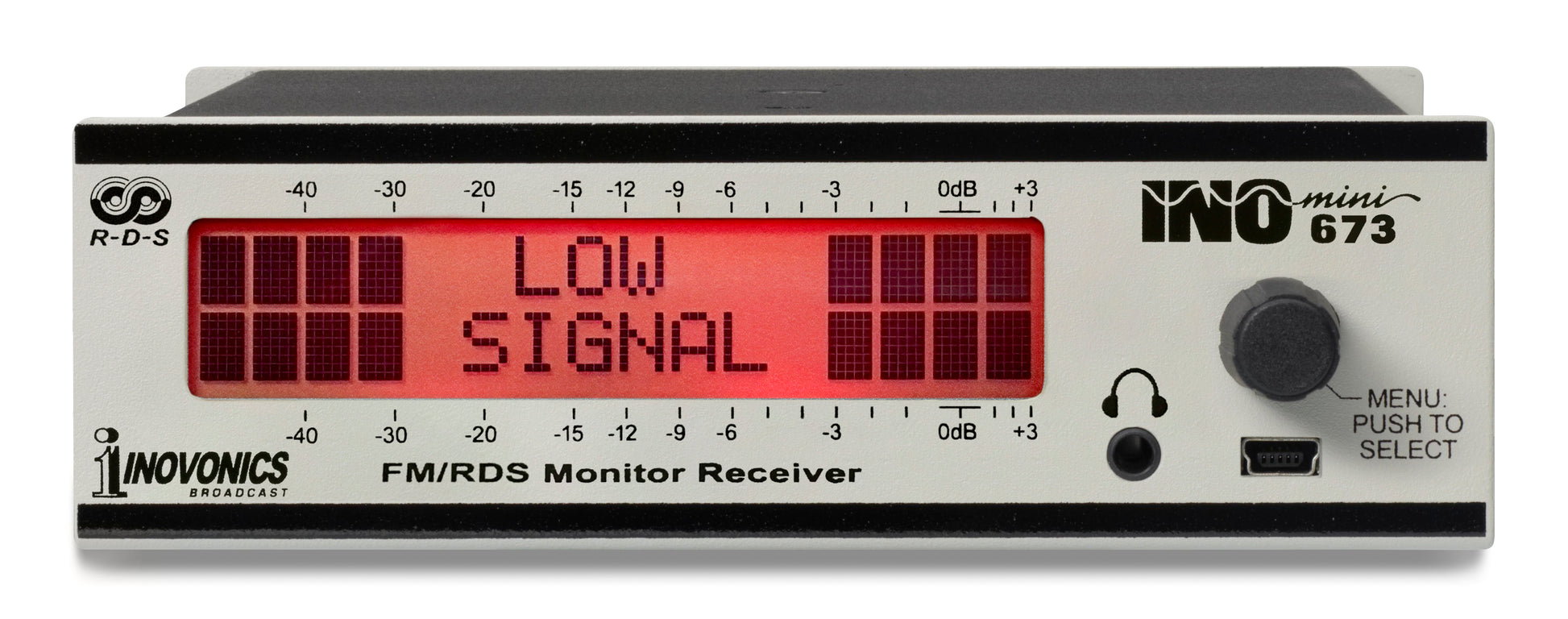

  • Flashing-red front-panel alarms and rear-panel ‘tallies’ indicate RDS Loss or PI Error, Low Signal and Audio Program Loss.

  • All receiver setup parameters are held in non-volatile memory.

  • When issued, free firmware updates are easily installed in the field.

Ver todos los detalles
