64.0MHz – 108.0MHz in 100kHz steps
10μV for a solid text display

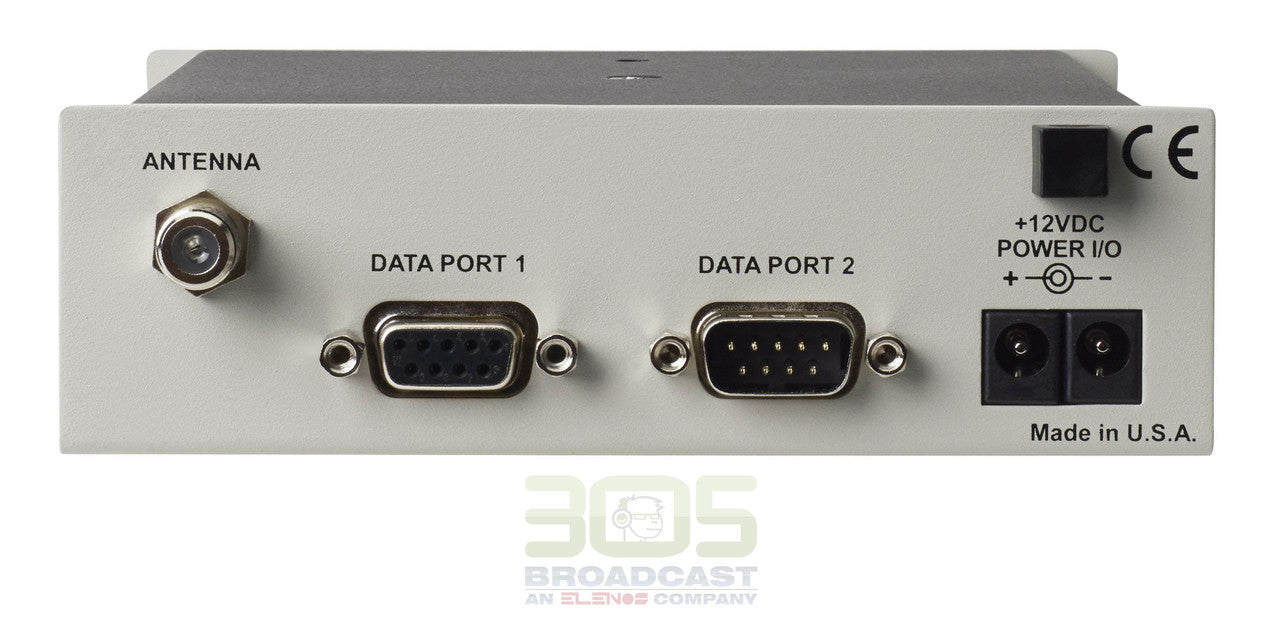

75-ohm (‘F’ connector) input can accept the downlead from rooftop antenna, a simple twinlead dipole or a random wire, depending on signal strength and reception conditions.
LED SIGN OUTPUT
Male and female DB9 serial data connectors; communication baud rate is set automatically when the sign type is selected.
SIGN PROTOCOLS SUPPORTED
Inovonics-supplied; NEOPlex Technology; Alpha.
FONTS AND COLORS
Options are selected via the 402 menus, consistent with capabilities of the sign used.
402 POWER REQUIREMENTS
12VDC at 125mA. A ‘bricktype’ (inline) switchmode power supply appropriate to the destination AC mains voltage is provided.
An optional rack adapter accepts up to three INOmini modules in a 1U, 19-inch rack space, or the 402 may easily be fastened to any convenient surface with two small screws.
SIZE AND WEIGHT
1.6”H x 5.5”W x 5.5”D; 4 lbs. shipping weight.
