JAMPRO JHPC - High Power Circular Penetrator

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

JMPC – Medium Power Circular Penetrator

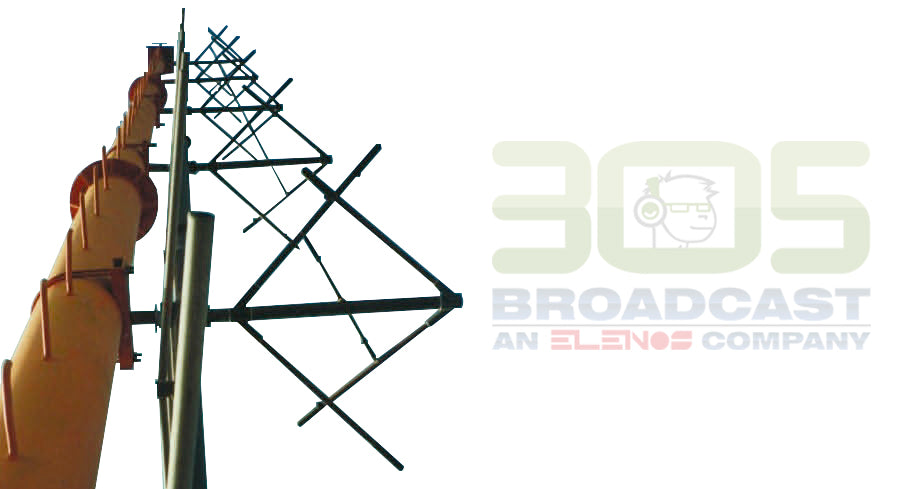

 The JAMPRO JHPC antenna is the high power version of the PENETRATOR antenna, which has become an industry standard for quality and performance. Rated at 40 kW maximum inputs, each bay consists of a PENETRATOR style radiating element with a 3-1/8” shunt feed line. Each JHPC is factory tuned to any frequency in the FM Band II (87.5 -108 MHz) range on a tower structure that bests simulates the customer’s actual tower. Multiple frequency design is also available. The true circular polarization of the JHPC antenna offers excellent performance for HD Radio, stereo and SCA operation. Typical VSWR is 1.1:1 ± 200 kHz.




FCC Directionalization

Reduced RF Arrays

Pattern Measurement Study

Custom Mounting Brackets Available

Electrical Beam Tilt

Null Fill

Multi Frequencies


The JHPC antenna is constructed of the highest quality marine brass and copper. A hot dipped – galvanized steel mounting bracket for utmost grounding supports each bay. Standard round leg mounting brackets for uniform face towers are included with each antenna. Silver plated inner conductor connectors are used throughout for maximum contact life and minimum power loss. Each JHPC antenna is DC grounded at every bay for maximum lightning protection. This rugged mechanical construction and mounting ensure the long life and outstanding performance of each JHPC antenna system.




1. Weights and wind loads shown include standard leg mounting brackets and feed lines

2. Wind loads based on 50/33 PSF (98 MHz, mid-band)

3. Feed points, when end fed is 3 ft below bottom bay; when center fed is 9’. 6” below center

4. All inputs are EIA flange, female

5. Power derating occurs above 2,000 feet elevation. Contact factory for details

6. Power and dB gains are typical for horizontal and vertical components

7. Special mounting brackets are available

8. Other combinations of EIA inputs and power ratings available

9. Free space azimuth circularity is ± 2.0 dB

10. Polarization is right hand, clockwise circular

11. Power gain is based on half wave dipole in free space

12. Specifications based on one wave spaced bays, other spacing
