GY-HC500U

JVC GY-HC500U

The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

 If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution.

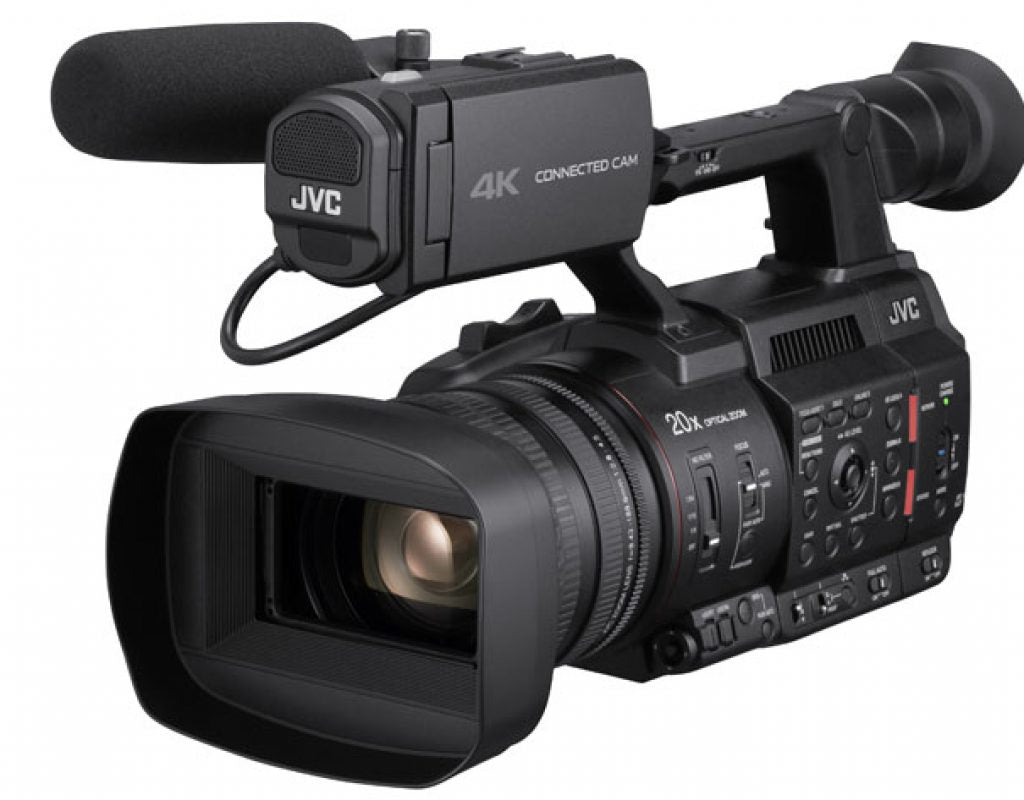

 The GY-HC500 is a handheld 4K production camcorder that offers uncompromised live and recorded image quality, and connectivity you won't find in any competitor's product. Shoot 4K ultra-HD with HDR and record to SSD or SDHC/SDXC media in a wide variety of formats including ProRes. Ultra-HD ProRes 422 10-bit at 50/60p is possible when recording to SDD media.** And with the latest firmware, you can now record HD (1920 x 1080) in the ProRes 422 and 422HQ formats. The GY-HC500 CONNECTED CAM also features high performance 1080 60p/50p live streaming with advanced Secure Reliable Transport (SRT) QoS, and a full complement of IP remote control and viewing features. Now, with the optional KA-EN200G encoder, streaming is possible with incredibly efficient HEVC/H.265 compression. It's truly the most advanced and versatile camcorder in its price range.

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

Main features:

  • 10-bit ProRes 422/422HQ/422LT, at 4K UHD resolution and 59.94p/50p/29.97p/25p/23.98p
    recording to M.2 SSD**
  • 4K UHD 29.97p/25p/23.98p 4:2:2 10-bit or 4:2:0 8-bit (150Mbps)
    and various HD recording to SDHC/SDXC card*
  • HDR recording, HLG or J-Log1 (10-bit)
  • Backup recording to SSD (v0110)**
  • Clip Continuous Record mode
  • 1-inch (effective) CMOS sensor with high picture quality
  • F11 Sensitivity
  • Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
  • 40x lossless dynamic zoom
  • 4-inch high resolution LCD monitor
  • LCOS Quad VGA viewfinder
  • XLR audio connectors
  • High performance 1080 60p/50p live streaming
    (4K Rec + HD streaming + 4K HDMI output)
  • Secure Reliable Transport (SRT) QoS for reliable, quality streaming (v0110)
  • Facebook Live streaming with secure RTMPS protocol (v0110)
  • Low latency and high-quality streaming up to 20Mbps
  • LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
  • HEVC/H.265 encoding for streaming with 50% reduction in bit rate—or—contribution quality 4:2:2 10-bit streaming at up to 24Mbps (via optonal KA-EN200G)
  • Return over IP (Return video and IFB)
  • Auto FTP to upload native video clips automatically

* Recording media not included
** SSD media requires optional KA-MC100G media adapter.


1" CMOS 4K Image Sensor

The GY-HC500 features a 1-inch CMOS 4K image sensor for uncompromised cinema and video production. This large sensor delivers a superior dynamic range, high S/N ratio and high sensitivity (F11 at 2000lx), contributing artistic visual expression including shallow depth of field 'bokeh' capability.

20x Optical/40x Dynamic Zoom Lens with Manual Functions

The GY-HC500 is equipped with a newly developed wide-angle 20x optical zoom lens to offer optimal magnification for shooting. When shooting in HD mode, Dynamic Zoom combines optical zoom and pixel mapping from a 4K image sensor to create seamless and lossless 40x zoom. Take total control of the scene with triple large rings for zoom, focus, and iris for smooth shooting. Other features include an optical image stabilizer and chromatic aberration correction.


Practical Auto Focus and Assist Functions

The Auto Focus and Focus Assist functions of the GY-HC500 provide the highly accurate, stable focusing that is essential for 4K shooting. Moreover, its broad customizability enables it to perform in a variety of shooting situations.
  • Customizable AF: AF speed, AF sensitivity, AF area, and Near Limiter can be adjusted as needed.
  • Customizable AF Assist: Turning the focus ring varies the function depending on the Focus/Assist mode status to fully control focusing.
  • One Button Control: "PUSH AUTO/LOCK" button enables you to lock focus, or engage AF for as long as you keep the button pressed, etc., for one-button focus control according to the focus mode you have selected.
  • Advanced Face Detection

HDR via HLG/J-Log 1

The GY-HC500 is equipped with an HDR compatible HLG (Hybrid Log Gamma) mode and JVC's proprietary J-Log 1 Gamma mode. These enable high dynamic range capture of a broad color spectrum with 10-bit recording for better color grading and to avoid banding. Footage recorded in HLG mode will deliver a full HDR image when viewed on HLG-compatible monitors. The J-Log 1 mode delivers wide latitude and a high dynamic range of 800%. In the field, it's possible to record while checking the image on the GY-HC500's LCD screen or viewfinder to get a grasp of the final output.

GY-HC500 supports HLG recording which enables simple HDR workflow without color grading. Avoiding clipped highlights or shadows, images are more realistic and vibrant. BT.2020 which offers wider color gamut is also supported.

4K UHD 60p/50p Apple ProRes 422 10-bit Recording

The GY-HC500 records in Apple ProRes 422 for attention-grabbing 4K 60p/50p image creation. Apple ProRes 422 HQ offers virtually lossless intra-frame compression, which speeds up post-production. Footage is recorded in native file formats that are understood by most major editing applications without transcoding. This is helpful for efficient workflow of editing and post process. The 4:2:2 format also provides richer color information and 10-bit recording delivers rich gradations—a definite advantage for grading work after recording.

SSD Enables Extended Time 4K UHD 60p/50p Shooting

Large-capacity, readily-available SSDs (SATA M.2 SSD Type2280) are compatible, so extended-time 4K UHD/HD up to 60p/50p video recording is possible. Just plug it into the camera's extended slot (using the optional SSD adapter KA-MC100G). SSD media delivers excellent sequential read speed to tackle professional workload. High-speed transfer of huge amounts of recorded footage is possible.

Dual SD Card Slots for Versatility and Efficiency

GY-HC500 offers dual SDHC/SDXC card slots to let you record 4K 30p/25p/24p or HD video on readily available, affordable media. Unique features using two cards include:
  • Series (relay) recording mode: Continuous recording card by card.
  • Clip Continuous Mode: This mode allows you to consolidate several rounds of start/stop recording into one clip.
  • Dual (simultaneous) recording mode: Recording to two cards with the same format for backup or multi-purpose.
  • Backup recording mode: While the Rec trigger is used to REC and STOP recording on one card, the other card can act as a continuous backup that overrides the pause function*.
    *During simultaneous backup recording in HD mode, the duplicate file records in the same file format and bit rate as the original.

Robust Body and Excellent in Weather Resistance

Its robust body makes the GY-HC500 ready to work in harsh environments and situations. Excellent construction in weather resistance enables image gathering in the field with confidence.

Switchable IR Shooting

IR filter can be switched disabled (Infrared ON) to increase infrared sensitivity for shooting in extremely low illuminance.

HD Live Streaming up to 24Mbps with Low Latency

The GY-HC500 is capable of streaming LIVE HD/SD and proxy video/audio files via network up to 24Mbps with low latency. High quality, stable streaming is possible from the field using just the camera itself*. No need to carry a heavy backpack or external boxes.
*With an appropriate network connection

SRT: QoS (Quality of Service) Technology

SRT logoSRT (Secure Reliable Transport) is an open source video transport protocol that enables the delivery of high-quality and secure, low-latency video across the public Internet. SRT optimizes streaming performance across unpredictable networks with secure streams and easy firewall traversal, bringing the best quality live video over the worst networks. It accounts for packet loss, jitter, and fluctuating bandwidth, maintaining the integrity and quality of your video.

SRT provides end-to-end security, resiliency and dynamic endpoint adjustment based on real-time network conditions to deliver the best video quality at all times on any network.

SRT is built-in and can be dynamically adjusted for optimal stream performance and quality. Automatic Repeat Request (ARQ) is included with SRT. End-to-end 128/256 bit AES encryption makes sure your content is protected from contribution to distribution.


IP Remote Control with Viewing

When the camera is IP connected, vital camera operations can be remotely controlled via wireless or wired LAN from a tablet, smartphone, or computer anywhere in the world. Remote control functions include lens and camera settings as well as registering zoom presets and IP connection settings.

Auto FTP

It's possible to upload video clips to an FTP server via IP. Auto FTP function allows you to start uploading a recorded clip without opening the menu screen.


NTP (Network Time Protocol) for multi-camera synchronization

When combined with the KM-IP6000/KM-IP4100 CONNECTED CAM switchers, multi-camera synchronization is possible using Network Time Protocol. Suitable for compact live production and at-home switching, NTP is used to sychronize cameras rather than traditional sync cables.

Return over IP

It's possible for the person in front of the camera to engage in a 2-way interview with return video and audio while streaming live to air via IP network. This allows reporters to wirelessly receive directions from the station, and camera operators to re-adjust framing as directed from another location. Multi-camera applications are supported as well.



500 Series Differences

  GY-HC500 GY-HC500SPC GY-HC550
Wireless LAN Optional USB HD65U adapter Built-in MIMO
Broadcast overlay No Yes Yes
Score overlay Yes
ODK tagging Yes
MPEG2 recording   Yes
GPS Yes Yes
Zixi QoS Yes Yes
SRT QoS Yes Yes Yes
