Linear Acoustic Aero 100 HD

The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution.

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

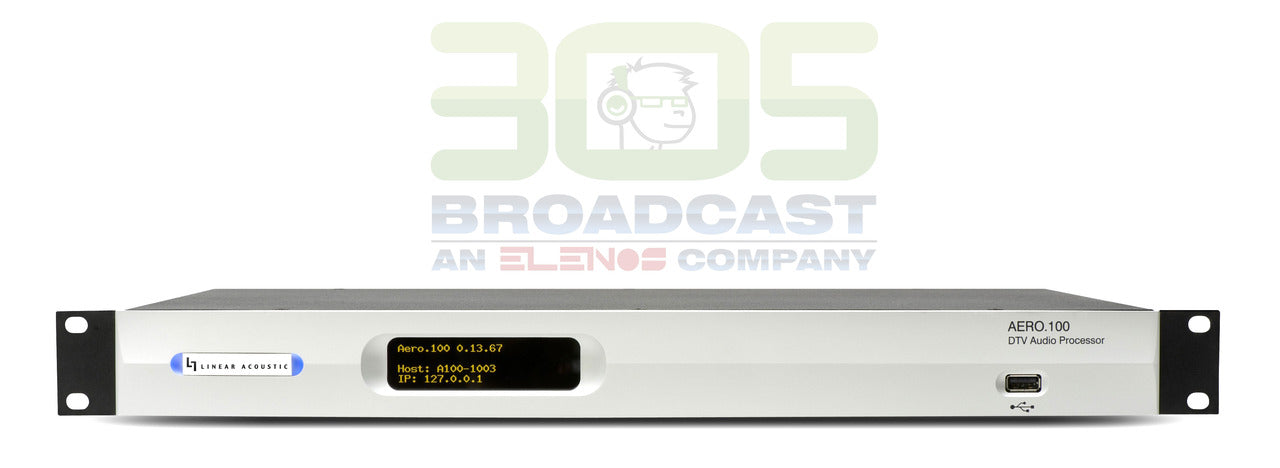

AERO.100 - DTV Audio Processor

 Handling up to 16 channels of baseband or encoded audio via AES (10 channels) or HD/SD-SDI (16 channels) I/O, the Linear Acoustic AERO.100 offers all-inclusive AEROMAX® audio processing, upmixing, encoding, and metering for over the air, over the top, and mobile television broadcasts in a compact 1RU chassis.

Base configuration includes a single processing instance in a 5.1+2+2 channel configuration, with or without Dolby® encoding and Nielsen® Watermark encoding. A second processing instance (5.1+2+2 or 2+2+2) with or without the Dolby and Nielsen options can be enabled at any time by simply entering a factory provided key.

Local audio insertion, SAP/DVS with downmix replacement, full-time downmix, and support for Audio Description (warble tone) is provided.

Failover bypass relays on all I/O maintain signal continuity and dual auto-ranging power supplies enable redundancy and worldwide compatibility.

Designed and built in the USA, the lightweight and rugged 1RU AERO.100 is a solid investment in performance and flexibility.


  •   Linear Acoustic AEROMAX loudness and dynamics control

  •   UPMAX® II upmixing with AutoMAX-II™

  •   Intelligent Dynamics™ with advanced ITU (AI) Limiter

  •   Standard single processing instance in a 5.1+2+2 configuration

  •   Available second instance in a 5.1+2+2 or 2+2+2 configuration, with or without Dolby encoding and Nielsen Watermark encoding

  •   Automatic downmix output

  •   Support for SAP/DVS

  •   Local audio/voiceover insertion

  •   Optional Audio Description (warble tone)

  •   Standard Dolby Digital (AC-3), Dolby Digital Plus and Dolby E decoding

  •   Available Dolby Digital (AC-3), Dolby Digital Plus, and Dolby E encoding

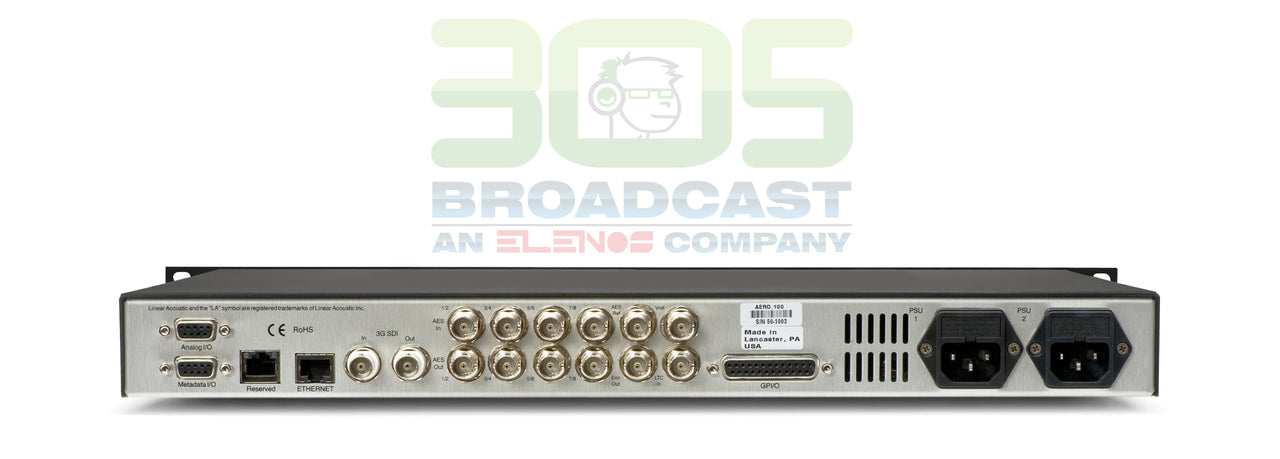

  •   3GHz HD/SD-SDI I/O with included video delay (16 channels)

  •   AES I/O with reference input (8 channels)

  •   Dual PSU and relay bypass

  •   Extensive TCP/IP remote control and HTTP control
