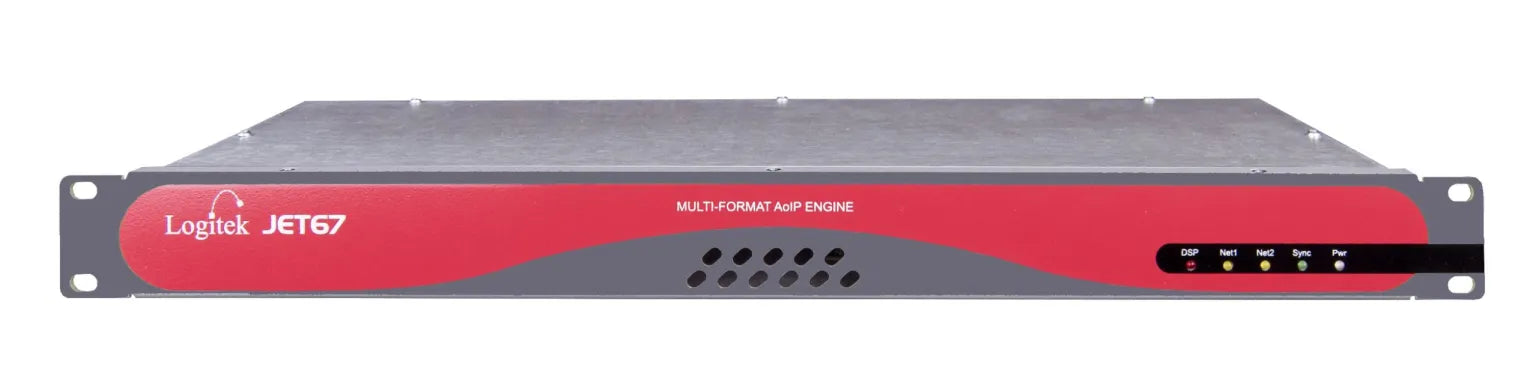

Logitek Jet67 - Multi-format AoIP engine

Designed for maximum flexibility in Radio console operation at an affordable price, the JET67 interfaces to AES67, RAVENNA, and LiveWire networks as well as Logitek’s JetNet AoIP protocol; an optional Dante® interface is also available. Two 1 GB Ethernet connectors and two 10/100 Ethernet connectors are provided. The JET67’s internal mixer supports up to a 24 fader console, providing EQ and dynamics at each fader along with Program and 3 Aux buses at each fader. Up to 24 mix-minus buses are available, depending on the attendant console; buses may be combined for stereo operation. Six stereo analog inputs, 2 digital inputs, 4 Mic inputs with phantom power, 8 stereo analog outputs and 2 digital outputs are provided.

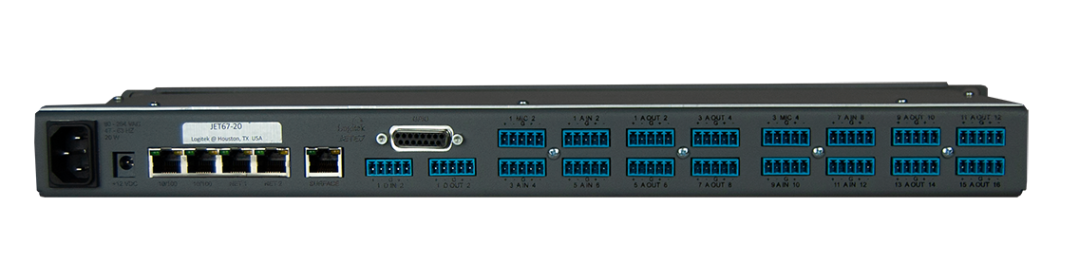

Connections to JET67 are made with quick connect terminal blocks – no soldering, punch-downs or specialized crimping tools are needed. GPIO is provided on a DB-15 connector and includes 4 inputs and 8 outputs. Two JET67 units may be directly connected for expanded I/O capability. The unit is powered by an internal 90-264 VAC, 20 W supply, with a connection for an external 12 VDC redundant supply.

The JET67 Audio Engine, when combined with the mixIT audio console, brings superior performance at a low price point to Radio stations. It also operates with Logitek’s Helix hardware surfaces and Helix Studio virtual surface.

Physical Specifications Jet67

• 19" W x 1.75" H x 7" D


• (48.3 x 4.4 x 17.8 cm)

• 3Lb (1.36 kg)

• Power 20 Watts
