NotaBotYet A15R012 Axia Relay - GPIO Relay Board for Axia

NotaBotYet Axia Relay - GPIO Relay Board for Axia

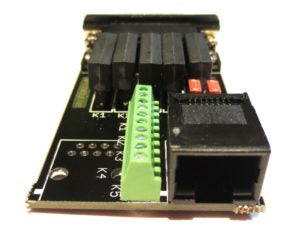

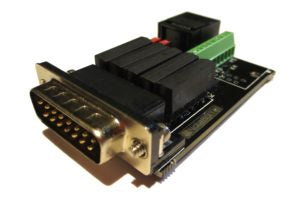

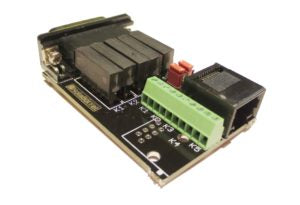

Provides five isolated 500ma relay outputs controlled by an Axia GPIO port.  Also provides a convenient RJ-45 connector for inputs. Relays available on screw terminal strip.  Expedites installation of LED on air lights, Mika tally lights, or other devices with an electrical load less than one-half amp..

Inputs: Inputs are available on a convenient RJ45 connector allowing the use of standard Cat5/6 wiring to transport GPIO control within your plant.  These inputs are identical to our standard GPIO Breakout Board for Axia

Outputs:  This board is populated with a screw terminal block on the output.  All 5 relay outputs may be wired to this block using 18-30 AWG wire.
