NotaBotYet GPIO - Breakout Board for Axia


NotaBotYet GPIO - Breakout Board for Axia

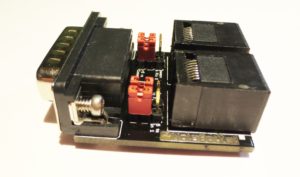

Provides a method of quickly connecting to Axia GPIO Ports using convenient RJ-45 connectors.  Expedites installation of Axia button panels, and can connect to NotaBotYet accessories such as the Interface for LITT Signaling Devices (Y15-R01-2) or the 6 Channel Relay Board (W15-R01-2) or the Tally Helper 100 and Tally Helper 500.

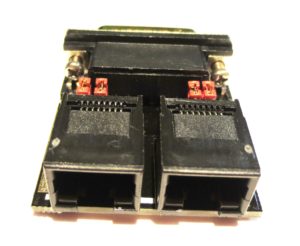

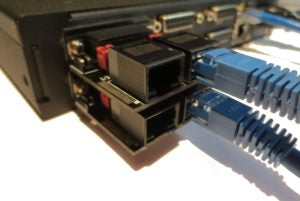

Inputs and outputs are available on a convenient RJ45 connector allowing the use of standard Cat5/6 wiring to transport GPIO control within your plant.

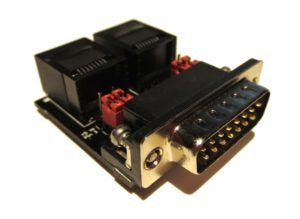

There are jumpers on this board that allow for common configurations and simplification of standard GPIO wiring and also allow common returns and supply voltages to be available directly on the RJ45 connector if needed for advanced GPIO needs.
