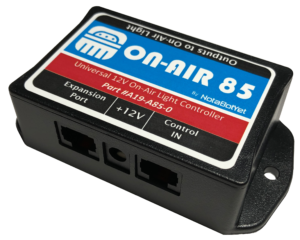

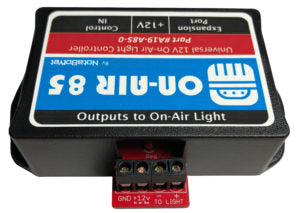

NotaBotYet OnAir 85 - Universal 12V On-Air Light Controller


NotaBotYet OnAir 85 - Universal 12V On-Air Light Controller

The On-AIR 85 from NotaBotYet is a universal on-air light controller designed to power and control most 12v on-air lights.  The unit is plug and play with Axia GPIO using our NotaBotYet Axia Breakout (Part #A15-B01-2) or can connect directly to the Wheatnet Logic RJ-45 ports.    The included power supply powers the control logic and provides power to nearly any 12v on-light from a variety of manufacturers like American Recorders, Titus, Sandies, CBT, and nearly any other 12v on-air light up to 900ma.  One simple open collector or dry contact closure to ground will activate the output that will power the 12v on-air light of the user’s choice.  And……since some users like their on air lights flashing, it can do that too…with not just one, but 14 different flashing and pulsing patterns to choose from!  All controllable from Axia GPIO or Wheatnet logic!

The input RJ45 connector is a match for our Axia GPIO Breakout Boards (A15-B01-2) or the logic ports on a Wheatnet IP Blade.  The device may also be controlled using GPIO sources from other manufacturers that use open collector outputs or dry contact relays.

Includes 12V / 1 Amp power adapter.  Adapter powers relay coils and can also be used to power other 12V devices such as 12V on air lights.  1 Amp Maximum.
