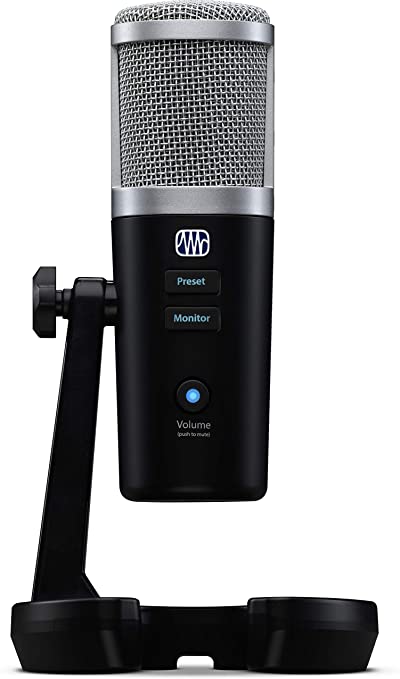

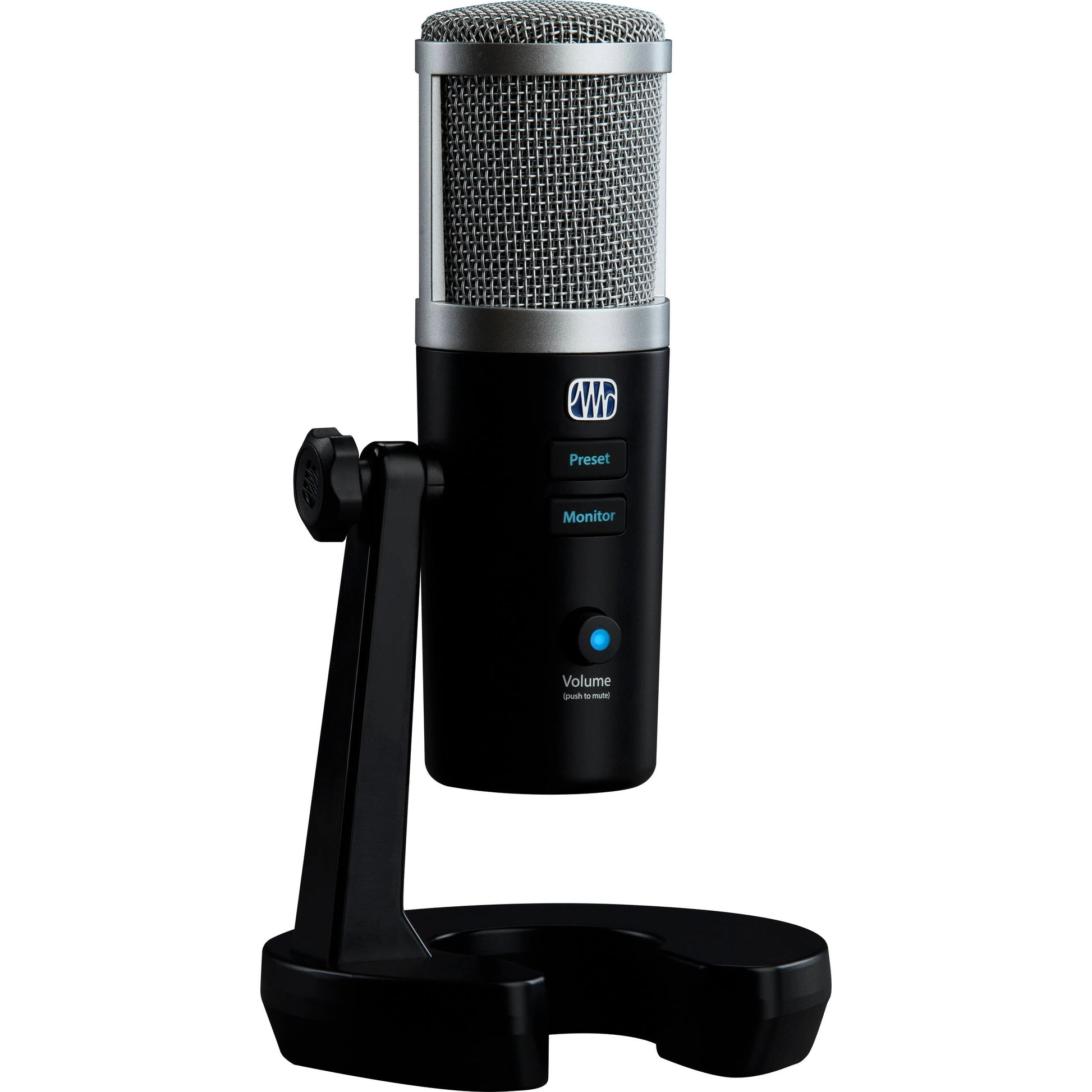

Presonus Revelator - Professional USB Microphone

Presonus Revelator - Professional USB Microphone

Stand out from the crowd.

Revelator is the first USB microphone to deliver voice processing to polish your sound and an easy-to-use loopback mixer to bring in multiple sources from other software applications—all built into a studio-grade microphone that connects right to your computer, Chromebook, and iOS/iPadOS devices.



Studio sound made easy.

More than a USB microphone: Revelator features compressors and EQs modeled on world-class analog processors; an independent reverb bus lets you add just the right amount of shimmer to your sound; plus two stereo loopback channels make it easy to add backing tracks and more. Revelator is the ultimate microphone for streaming and recording solo musicians.

Elevate your podcast.

Revelator packs everything you need for your podcasting studio into an elegant USB microphone: classic broadcast vocal sound and presets created with the same StudioLive digital processing used professional broadcasters all over the world; plus selectable pick-up patterns and an onboard loopback mixer that make recording in-person and online interviews a breeze. It’s everything you need at a price that won’t break the budget.

Level up your game stream.

No other USB microphone provides as much flexibility when you’re streaming gameplay. Easy-to-use presets help remove keyboard clicks and polish your voice...or completely transform it. An onboard loopback mixer lets you combine gameplay audio, Discord chats, and more. All in an elegant design that looks great on camera.


Make your own magic.

At PreSonus, we want to make sure that our audio products come with everything you need to craft your own mesmerizing spells in the studio. That's why we include Studio One Artist with every audio interface and controller product we make, from the 2-channel AudioBox USB 96 to the 64-channel StudioLive 64S, ATOM to FaderPort 16, but we didn't stop there. Why? Because here in Louisiana, we have a word: lagniappe. It means "a little something extra," and it's in that spirit that we also include the Studio Magic Suite of software with our audio interface products and–new for 2021–our award-winning controllers as well.

The 2021 Studio Magic includes Ableton Live Lite, tutorials from Melodics, sound libraries from Ghost Hack, 7 virtual instruments, and 9 effects plug-ins in VST, AU, and AAX formats to use in Studio One 5 Artist or your DAW of choice with a retail value of over $1000 (US).


Features:

  • Professional bus-powered USB-C-compatible microphone for podcasting, streaming, vlogging, gaming, home recording, and more
  • Three different patterns to choose from:
    • Cardioid—for single-source applications
    • Figure 8—perfect for interviews and collaboration
    • Omnidirectional—to pick up the entire room
  • Headphone Output with volume control and zero-latency monitoring
  • 96 kHz / 24-bit operation for pristine audio recording
  • Elegant desktop stand with built-in cable management
  • Unique Multi-mode configures Revelator as three stereo devices: Revelator, Revelator Loopback 1, and Revelator Loopback 2 to make recording Zoom calls or streaming Gameplay a breeze
  • 6-in/6-out audio interface
    • 2 dedicated input streams for the Revelator microphone
    • 2 dedicated output streams for headphone monitoring
    • 4-in/4-out virtual streams for application-to-application recording and playback with loopback options for macOS and Windows
  • Built-in Fat Channel with EQ, Compression, Gate, and Limiter plus Voice Effects, and Reverb with 8 easy-to-use factory presets and 8 user presets.
    • Access up to 4 presets from Revelator, additional presets are available in Universal Control
  • Universal Control Surface software mixer, effects editing and hardware control
  • Studio One Artist included
  • Studio Magic software bundle included
  • macOS® and Windows® compatible
  • iOS® and iPadOS® compatible (may require a Camera Connection Kit)
  • Chromebook compatible

Computer system requirements:

Below are the minimum computer-system requirements for the Revelator:

Windows

  • Windows® 10 (64-bit only)
  • Intel i3 / AMD A10 processor or better
  • 4 GB RAM (8 GB or more recommended)

Mac

  • macOS® 10.13 or higher (64-bit only)
  • Intel® i3 or better
  • 4 GB RAM (8 GB or more recommended)

​Windows and Mac Systems

  • USB-C™ or USB-A 2.0 port compatibility
  • 32 GB hard disk space
  • PreSonus Universal Control 3.4 or higher
  • Monitor with 1366x768 resolution (high-dpi monitor recommended)
  • Multitouch-enabled monitor required for touch operation


The minimum system requirements may differ for DAWs other than Studio One. Please check the requirements for your DAW of choice with its manufacturer.
Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) than you might experience while monitoring audio signals.

VST Compatible Logo ASIO Compatible Logo

VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH

Technical Specifications

Mi​crophone

Type Mono Condenser
Polar Patter Cardioid, Bi-directional (Figure 8), Omnidirectional
Frequency Response (±3.0 dB) 20 Hz to 20 kHz
Sensitivity 1mV/Pa
Max SPL 110 dB <3% THD

Headphone Output

Type 1/8" TRS active stereo
Power Output (RMS) 22.6 mW (16Ω)
THD 0.008%
Frequency Response 20 Hz to 20 kHz
Impedance 16Ω
Dynamic Range 77.5 dB

Audio Interface

Type USB-C™ compatible USB 2.0
Sample Rate 44.1, 48, 88.2, and 96 kHz (​Note: 44.1 and 48 kHz only on macOS while in Multi Mode)
Bit Depth 24-bit
Power USB Bus Power
Hardware Controls Direct Monitor, Mic Gain, Headphone Level, Mute, Preset Select
Software Controls Mic Gain, Pattern Select, Monitor Mix, Preset Management
Onboard DSP

PreSonus Fat Channel: High Pass Filter, Noise Gate, 3 Compressor models, 3 EQ models, and Limiter

Voice Effects: Comb Filter, Delay, Doubler, Ring Modulator, Vocoder

Reverb

Physical

Dimensions (HxWxD) 8.875" x 5.125" x 5.125" (225 x 130 x 130 mm)
Weight 1.6 lbs. (0.73 kg)
