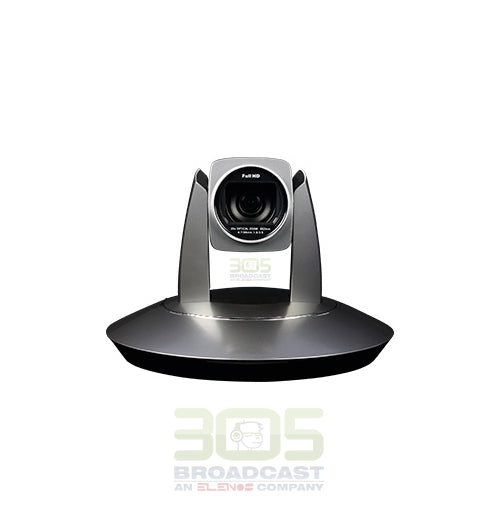

AMC-A2001N (20X, 59.5° FOV)

Features

• H.265 video compression, dual stream
• Compatible with ONVIF, RTSP, RTMP protocols
• 2.14MP, 1/2.8" CMOS Support up to 1080p60 and other video formats via SDI interface With OSD menu
• With HD-SDI interface
• 1 audio input and 1 audio output
• New design of PTZ mechanism with higher precision and reliability, presetting precision up to ±0.01 degree
• Support standard VISCA & Pelco communication protocls
• With IR remote controller
• Has image flip function for stand and suspended installation
• Desktop, ceiling, wall and pendant mounting options

Model AMC-A2001N

• Image Sensor: 1/2.8" Exmor CMOS, 2.14MP
• HD-SDI Signal Format: 1080p/60, 1080p/30, 1080i/60, 720p/60, 720p/30 1080p/50, 1080p/25, 1080i/50, 720p/50, 720p/25
• Focal: f=3.9 mm - 46.8 mm
• Iris F1.6 - F2.8
• Optical Zoom: 12X
• Digital Zoom: 12X
• Shortest Focus Distance: 10mm-1.000mm
• Field of View: 72.5°- 6.3°
• Focus: Auto, Manual, PTZ Trigger AF, One Push
• Minimum Illumination: 0.5Lux (Color), 0.1Lux (B/W)
• Shutter Speed 1/1 ~ 1/10,000s
• AGC: Auto / Manual
• White Balance: Auto, Indoor, Outdoor, One Push, Manual, Auto Track
• AE Control: Auto, Manual, Shutter Priority, Iris Priority
• S/N Radio: ≥50dB

Pan & Tilt

• Pan Range: -170° ~ +170°
• Tilt Range: -30° ~ +90°
• Pan Speed: 0.1° ~ 120°/ s
• Preset Number: 256
• OSD: Yes
• Image Flip: Yes

Network

• Max. Image Size: 1920 x 1080
• Frame Rate HD: 50Hz: 50fps(1920×1080) 60Hz: 60fps(1920×1080)
• Video Compression: H.265, H.264
• Audio Compression: AAC
• Protocol: HTTP, RTP, TCP, UDP, RTSP, RTMP, ONVIF
• Dual Stream: Dual Support
• Simultaneous Users: Up to 10 users

Interface

• Ethernet: RJ45, 100M
• Video Output(HD): HD-SDI
• Control Interface: RS-232IN/IR, RS-232OUT/RS-485

General

• Control Protocol: VISCA and Support Daisy Chain, PELCO-P, PELCO-D
• Address 0~63
• General Power Supply: DC12V
• Power Consumption: ＜15W
• Working Temperature: 0°C~+40°C
• Storage Temperature: -20°C~+60°C
• Dimension: 226mm x 159mm x 206mm
• Weight: 1.7KG
• Body Color: Grey
