RDS Encoder P232U

$495.00
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

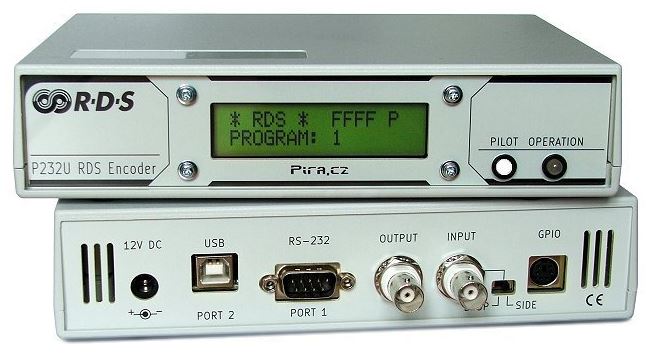

RDS Encoder P232U



Overview

The P232U RDS Encoder is well suited for the vast majority of radio stations which use serial data channel (PC serial port, satellite link, serial over Ethernet) for the RDS content distribution. An independent USB communication port provides a simple way for local connection and configuration. The RDS encoder supports both dynamic and static operation. The device is equipped with standard analogue interface for seamless integration into the broadcast chain and interchangeability with other brand products.

Some features are unique: output data monitoring down to the bit level, direct conversion of XML tagging data to Radiotext Plus, port multiplication thru Windows control software and several others. Due to support of additional RDS2 data-stream, the P232U is future-proof equipment, ready for possible enhancements of the FM broadcasting.

This RDS encoder is characterized by proven concept, easy installation, great price and unsurpassed text processing capabilities. It maintains support for all RDS services and data formats that are commonly used.

Features:

  • Fully dynamic FM broadcast RDS encoder with two independent communication ports
  • Optically isolated RS-232 port, USB port
  • Control interface accepts ASCII commands, UECP protocol and X-Command
  • Text features include dynamic PS, parsing, scrolling, tagging, fixed messages and scheduling
  • Excellent compatibility with broadcast automation systems
  • External TA and Program set switch, bypass relay, switchable MPX loopthrough mode (Loop/Side)
  • Internal real-time clock
  • Supports separate data channel for station logo *)
  • Two switchable subcarrier configurations (RDS or RDS2)
  • Easy and fast set-up



RDS services directly supported by the unit

PI

Program Identification

M/S

Music/Speech

PS

Program Service

PIN

Program-Item Number

PTY

Program Type

ECC

Extended Country Code

TP

Traffic Program

RT

Radiotext

AF

Alternative Frequencies

TDC

Transparent Data Channels

TA

Traffic Announcement

IH

In House Applications

PTYN

Program Type Name

ODA

Open Data Applications

DI

Decoder Identification

CT

Clock-Time and Date

EON

Enhanced Other Networks information

LIC

Language Identification Code

RT+

Radiotext Plus

TMC

Traffic Message Channel



Technical specifications:

Supply voltage and current: 12 V DC stabilized, 250 mA
RDS/RBDS signal: conforms to CENELEC EN 50067 / EN 62106
Output level of RDS: adjustable from 0.0 to 4.0 V p-p in 256 steps
RDS signal bandwidth: +/- 2.4 kHz (50 dBc)
MPX leadthrough voltage gain: 1 (guaranteed from 2 Hz to 100 kHz)
19 kHz pilot PLL capture range:  +/- 4 Hz
Pilot tone level: min. 120 mV p-p
Phase shift adjust: full range in 9.5 degrees steps
Signal connectors: unbalanced, BNC
Data connectors: RS-232 9-pin male (DTE), USB B-type
Other connectors and indicators:  TA and Program switch, front panel LCD, pilot and operation LED
Program sets: 6
UECP protocol support: PI, PS, TA/TP, DI, MS, PTY, RT, X-Command, TMC, AF, 0D, 1C, 24, 40, 42 **
ASCII protocol support: Yes
Case: Compact, 190x150x45 mm, gray or black ABS
Recommended power supply: Wall mount adapter 12V/1A DC, 2.1x5.5mm barrel plug (+) inside

* In the meantime, the station logo is not fully supported by consumer FM receivers. Learn more...
** Follow the User Manual for details.
