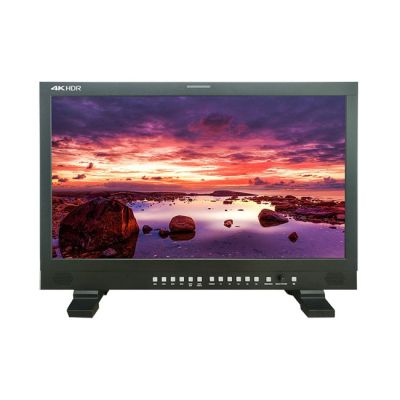

RGBlink RGBLINK-400-2380-02-0 23.8'' UHD IPS Monitor

RGBLINK-400-2380-02-0

RGBlink RGBLINK-400-2380-02-0 23.8'' UHD IPS Monitor

Sold out
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Notify me when this product is available:

Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

RGBlink RGBLINK-400-2380-02-0 23.8'' UHD IPS Monitor

24inch 4K HDR monitor, 3840 x 2160 16:9 aspect ratio, 540nits, 98% DCI-P3 wide color
gamut, custom 3D LUT import, designed for professional production and post production workflow.
Offers the precise color reproduction and the unique and advanced features. The RMS2380U also
supports various HDR gamma curves, such as PQ, HLG, S-Log3

24 inch 4K IPS LCD Panel
4K UHD(3840 x 2160) resolution, 540nits high brightness, 10bits LCD IPS panel, 178º/178º viewing angle

Wide Color Gamut
Covers 98% DCI-P3 color gamut, 25% larger than Rec.709

4K Signal Input Interface
4 channels 12G-SDI video input and loop output, HDMI2.0 input, Thunderbolt/Type-C interface and SFP

Multi Screen
Support multi screen modes, PBP/PAP, 3 screen and quad, monitor multiple signals at the same time

Multiple Gamut Formats
ITU-R BT.2020, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, Native

Support HDR/Gamma(EOTF)
HLG (Hybrid Log Gamma)(1.0, 1.1, 1.2, 1.3, 1.4, 1.5)and ST.2084 Dolby Vision PQ HDR Support Sony S-log3 HDR Support normal Gamma and user Gamma LUT

SDR/HDR Comparison
Select multi screen mode to compare the signals effect of SDR and HDR

Camera Log
Support Sony, ARRI, Canon, Panasonic and DJI Camera Log and user Log

3D LUT Color Calibration
3D Look-up Table import is supported for accurate and consistent color matching between individual displays

Embedded Audio Meter
Support 16 channels of embedded audio meters, support audio abnormal alarm, select 2 channels of audio meter output

Support waveform, vector, histogram
Select Y, CB, Cr, R, G, B waveform, support any single line waveform, support vector graph and R/G/B/Y full channel histogram display

USB firmware upgrade

Gamut Warning

Headphone
Stereo Mini Jack x1

False Color

Over scan, Marker, Mono, Blue only
