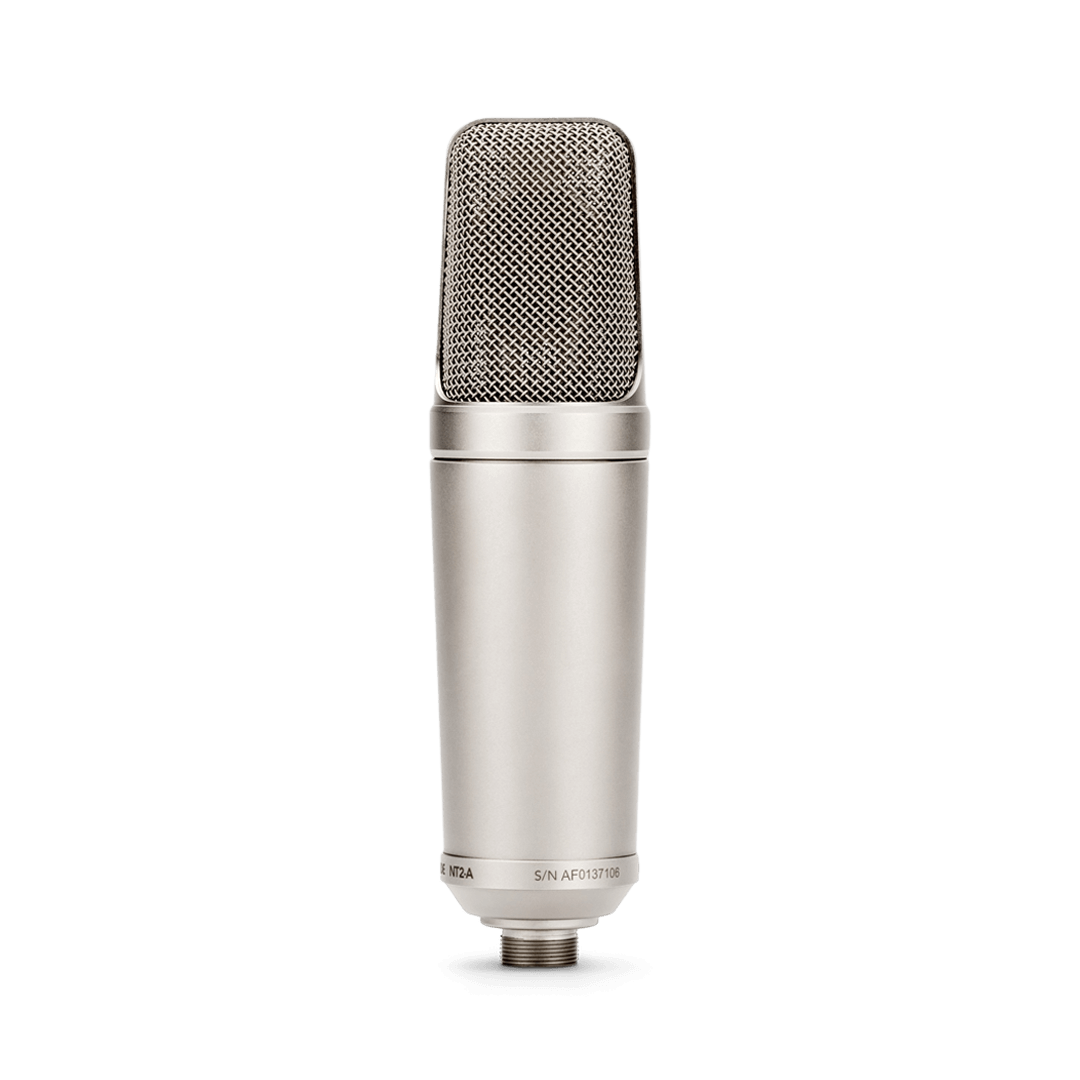

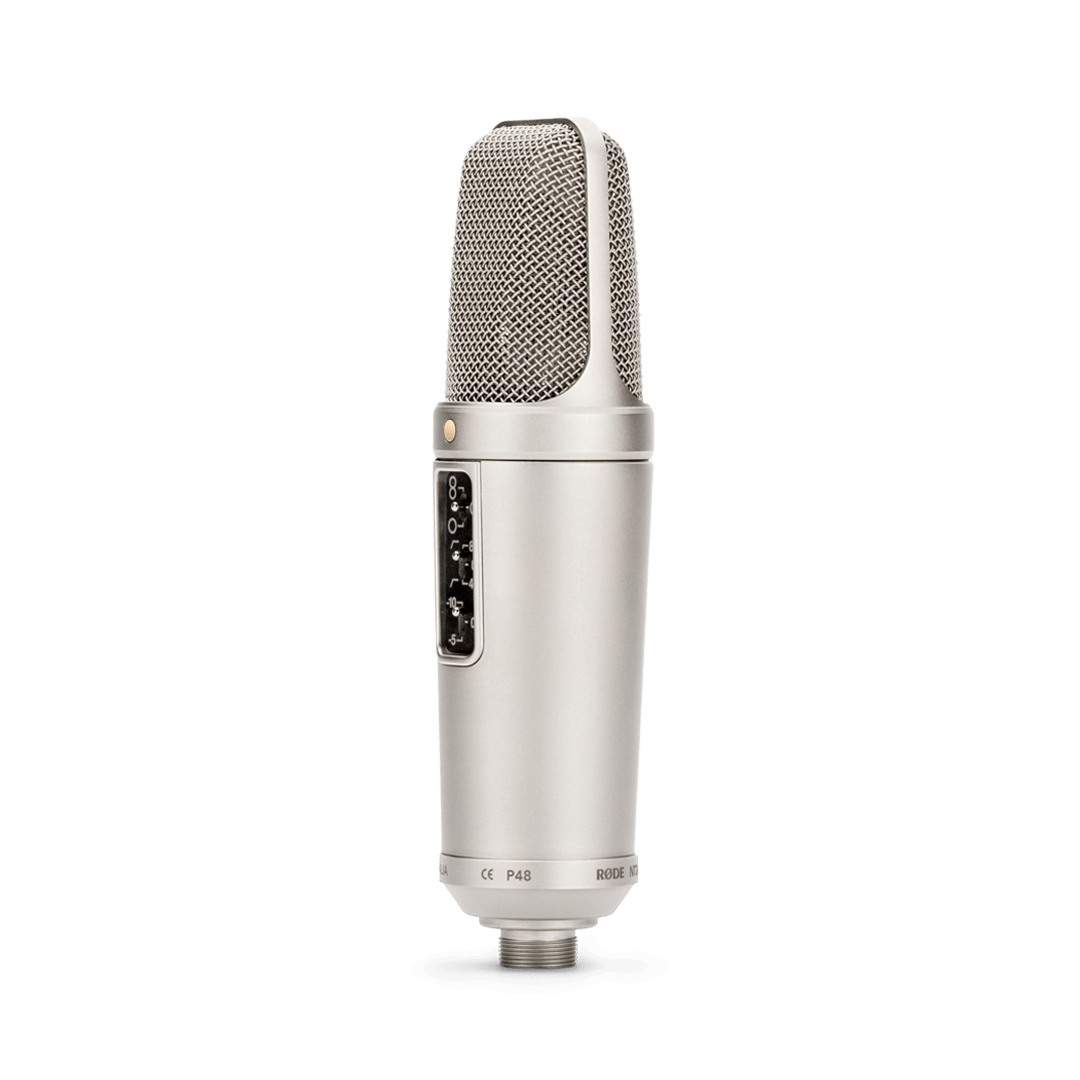

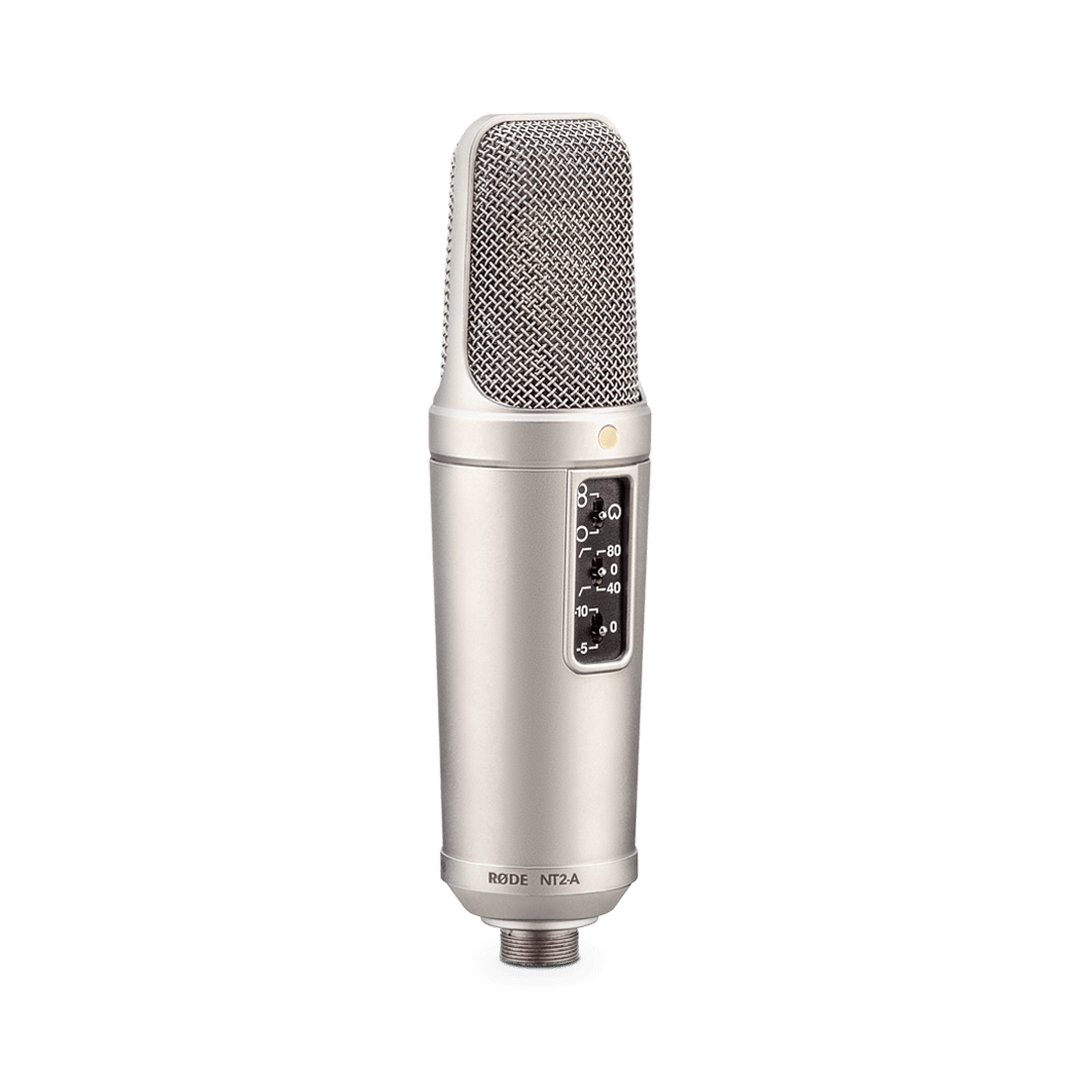

Rode NT2-A - Multi-pattern Large-diaphragm Condenser Microphone


Rode NT2-A - Multi-pattern Large-diaphragm Condenser Microphone

The NT2-A is a highly versatile large-diaphragm studio condenser microphone designed to offer pristine audio quality and flexibility in equal measure. Featuring a three-position pad (0dB, -5dB, -10dB), high-pass filter (flat, 40Hz, 80Hz), and polar pattern control (cardioid, omnidirectional, figure-8), it can easily adapt to any recording situation in the studio.

The NT2-A features a dual 1-inch gold-sputtered cardioid condenser capsule with internal shock mounting and offers ultra-low self-noise and a full frequency response, evoking the silky smooth character of the legendary microphones of the '50s and '60s.

Key Features:

  • Multi-pattern large-diaphragm studio condenser microphone
  • Three-position pad, high-pass filter and polar pattern controls
  • Ultra-low self-noise and full frequency response
  • Internal capsule shock mounting
  • 10-year warranty

Acoustic & Electrical Specifications

Acoustic Principle
Pressure Gradient

Active Electronics
JFET impedance converter with bipolar output buffer

Capsule
1.00"

Polar Pattern
Cardioid, Figure 8, Omnidirectional

Address Type
Side

Frequency Range
20Hz - 20kHz

Output Impedance
200Ω

Maximum SPL
147dB SPL

Maximum Output Level
16.0mV (@ 1kHz, 1% THD into 1KΩ load)

Sensitivity
-36.0dB re 1 Volt/Pascal (16.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz

Equivalent Noise Level (A-Weighted)
7dBA

Power Requirements
P24 and P48

Output Connection
XLR
