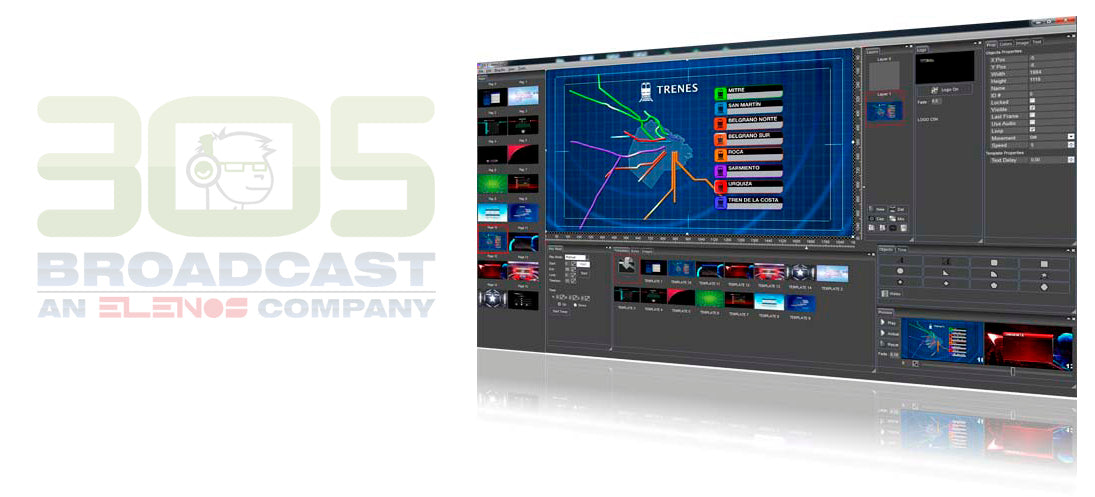

SMART CG HD

SMART CG HD



3 layers HD/SDI Character Generator, Generation and insertion of characters in real time, time, temperature and timers on screen, NTSC or PAL, editor in multiple layers, create and edit graphics import BMP, TGA, TIF, JPG, PSD, TGA series, etc., Includes more 200 templates for different types of programs, supports True Type Fonts, play modes automatically or manually, after controlling onscreen keyboard / mouse or optional remote control. Allows overprint of: 1 Roll o 1 Crawl or 1 Video with Alpha Channel or TGA series or Lower third plus a moving LOGO layer and a layer for time, temperature and humidity. Cut by Alpha Channel.



The SMART CG-HD flexibility allows multiple operations such as:

  • 3 Layers.
  • Insertion of 3D LOGOS with Alpha Channel. Insertion of Time, Temperature and Humidity.
  • ALPHA CHANNEL Trim.
  • Titles and subtitles in real time.
  • Excellent live performance.
  • Multiple layers per page with independent control.
  • Fade In / Fade-Out control.
  • Roll, Crawl, TGA Series and Socket Broadcasting.
  • Project content in one file.
  • ?Relay Bypass? in case of PC failure.
  • More than 200 predefined templates to its immediate use.
  • It Supports PSD, TGA, TIF, GIF, PNG, BMP, EMF, JPG, PCX, JP2, TGA Series, etc.



Technical Specifications

Input:

  • 1 SDI HD Input

Output:

  • 2 SDI HD Output (Fill Key)

HD Supported formats:

  • 720p 24fr, 25 fr,29fr,30fr,50fr, 59fr,60fr
  • 1080i 50fr, 59fr, 60 fr
  • 1080p 24fr, 25fr, 29fr, 30fr

SD Supported formats:

  • PAL / NTSC

Inputs:

  • SD/HD SDI: (SMPTE 424m, SMPTE 292m, SMPTE 259mI) with embedded 50/60 Hz Audio.

Synchronization Input (genlock)

Outputs:

  • SD/HD SDI (SMPTE 424m, SMPTE 292m, SMPTE 259m) with embedded 50/60 Hz audio
  • Digital linear key DSK signal alpha- channel output (BNC)

Relay Bypass in case of power failure: SD/HD

SDI with embedded audio
