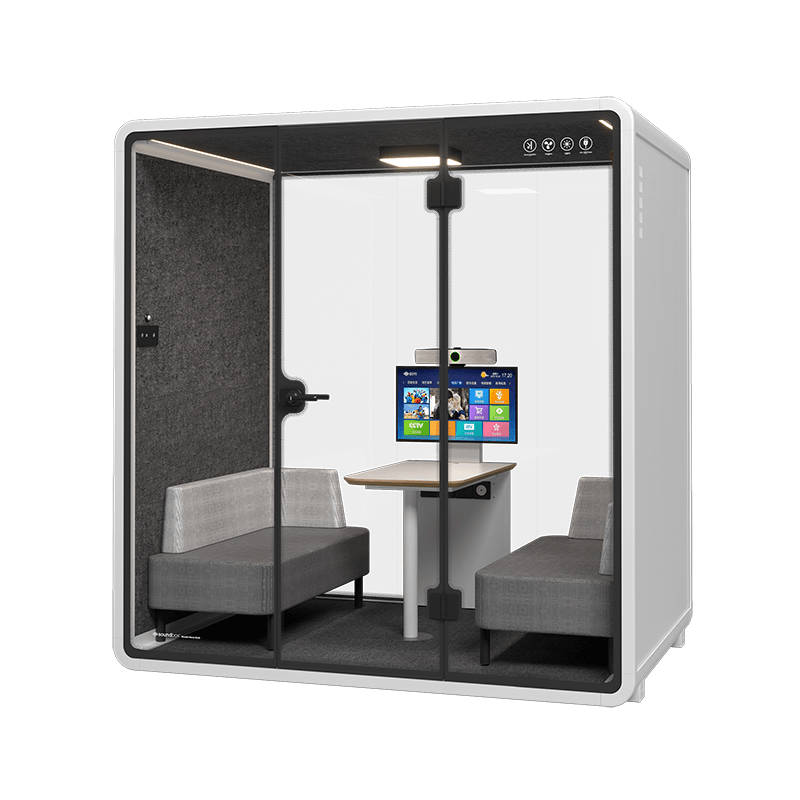

SOUNDBOX SR-L(F6)

SOUNDBOX SR-L (F6)

Soundproof

In our designing process, we fully utilize acoustic simulation software such as INSUL MARSHALL ACOUSTIC to iterate and obtain optimal acoustic performance.

Our booth is consistent with the standard of environmental rating Design value: Rw+Ctr 25 db (+5 db) and RT0.75 s (+0.1 s).

Ventilation

Low noise air ventilation system with maze-like internal layout to ensure necessary air circulation in three minutes, while preserving soundproofing attributes of the booth.

Lighting

Equipped with 4000 K daylight color temperature LED lighting system (150 LX), it would satisfy the needs of normal activities. In the event of additional power requirements, a backup power supply is readily installed inside the booth.

Fastening Assemble

Our design philosophy has always emphasized on simplicity and minimalistic approach.
Hence our whole model only utilizes 90-degree fasteners.

Soundproof glass

The silence booth utilizes the same type of noise-reducing glass found on high-speed trains.

Acoustic Interior

Our booth has an effective area of 60% covered Polyester Fiber sound absorbing material.

Optional furniture

We can recommend what type of aesthetic and acoustic furniture is optimal for your Silence Booth.

cccolo

Color options

Motion Sensor

Soundbox Silence Booth is equipped with motion sensor to control the lighting and ventilation system.

220V Power

Our booth is equipped with 12V-USB power supply and power rated for 100-240V/50-60Hz.

External cable hole

An external opening allows cables to easily pass into the booth. The opening may be closed when not in use.

*1. Main Material: Tempered glass ; Aviation
Aluminun frame; Strong carbon
composite wall panels; Floor damping carpet etc. *2. Interior Material : Using 60% high density
PET
acoustic panel as sound absorption materials
inside the booth. make the sound more clear
*3. Voltage : 110-220V/50Hz and 12V-USB
power supply system
* 4. Panosonic Ventilation System: 1~2pcs
silent fan --refresh the air in every 2~3
minutes.
*5.Lighting System : 4000K LED central
lighting system
*6. Easy Installation: It support assemble &
disassembled for many times
*7.Sound insulation amount: STC 25dB
(±3dB) / RT0.25s (±0.01s)
*8. No Wood, No Glue, No screw, Lego Structure
* 9. Low carbon and recycal product
* 10. Interior Furniture is included.
*11. Certificates: ISO9001:2015,
ISO14001:2015,
ISO14025, ISO45001, ASTM-E85, SGS, ISO
23351-1:2020, ISO 14067: 2018 Product
Carbon Footprint Certificate, ESG certs.
Amfori BSCI
