Innovative and Unique.  Jupiter packages powerful DSP into a zero learning curve, turn-key family of audio processors. Standing on the shoulders of Symetrix’ world-class open architecture DSP platforms, Jupiter upholds our commitment to pristine sound.

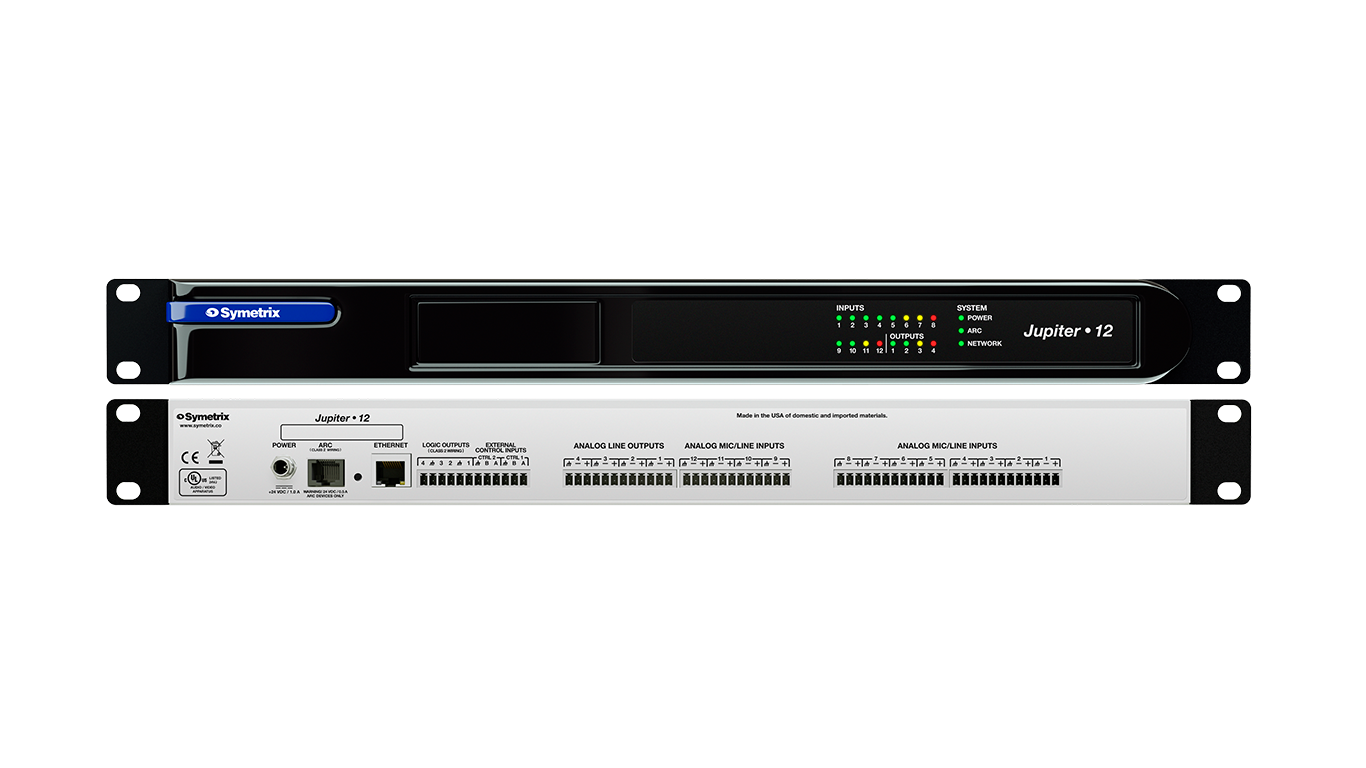

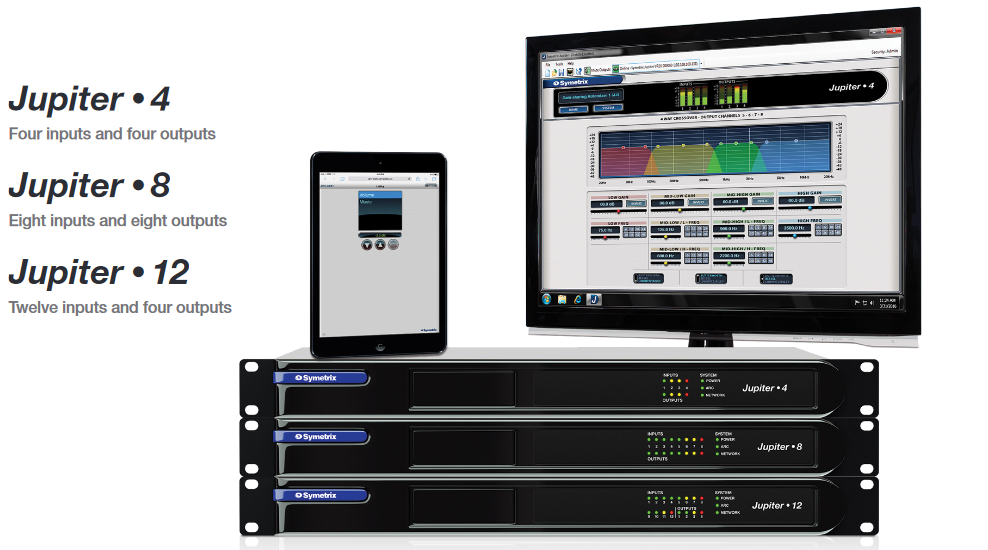

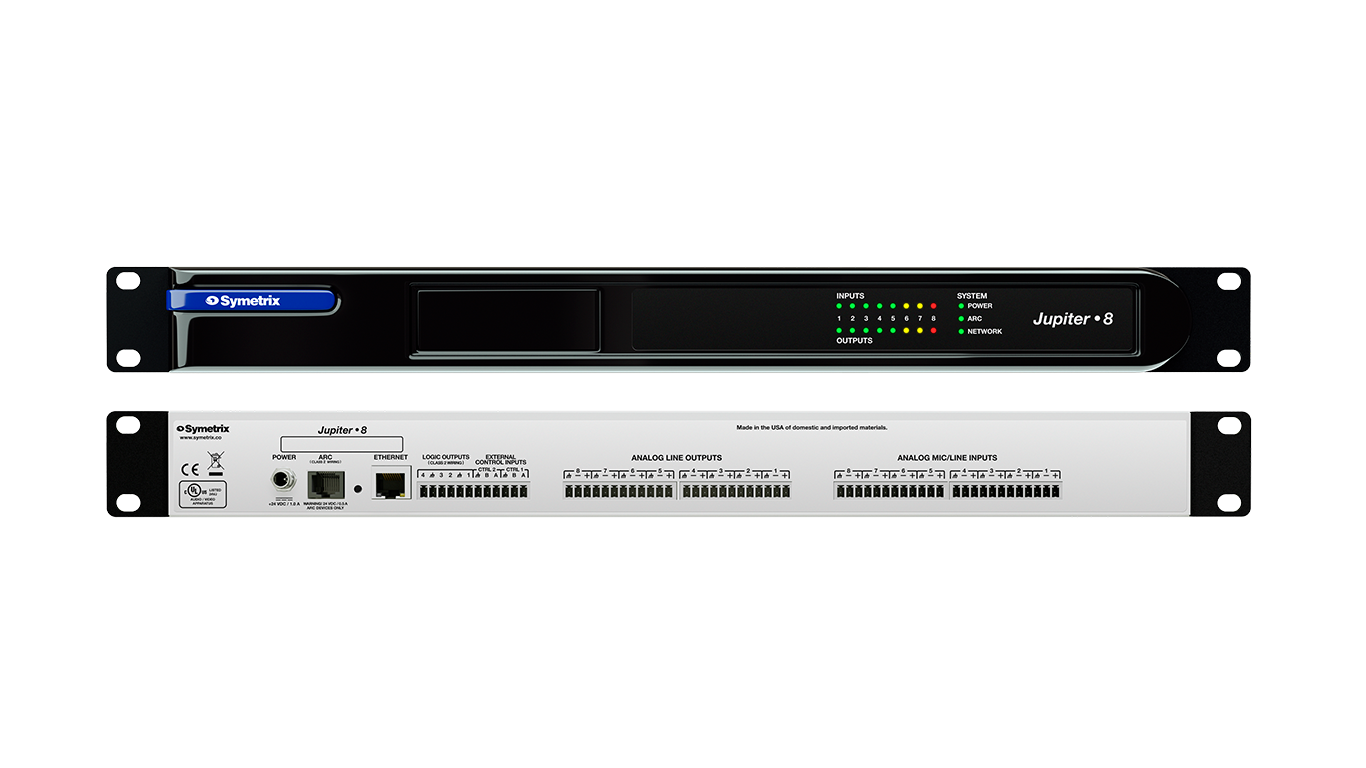

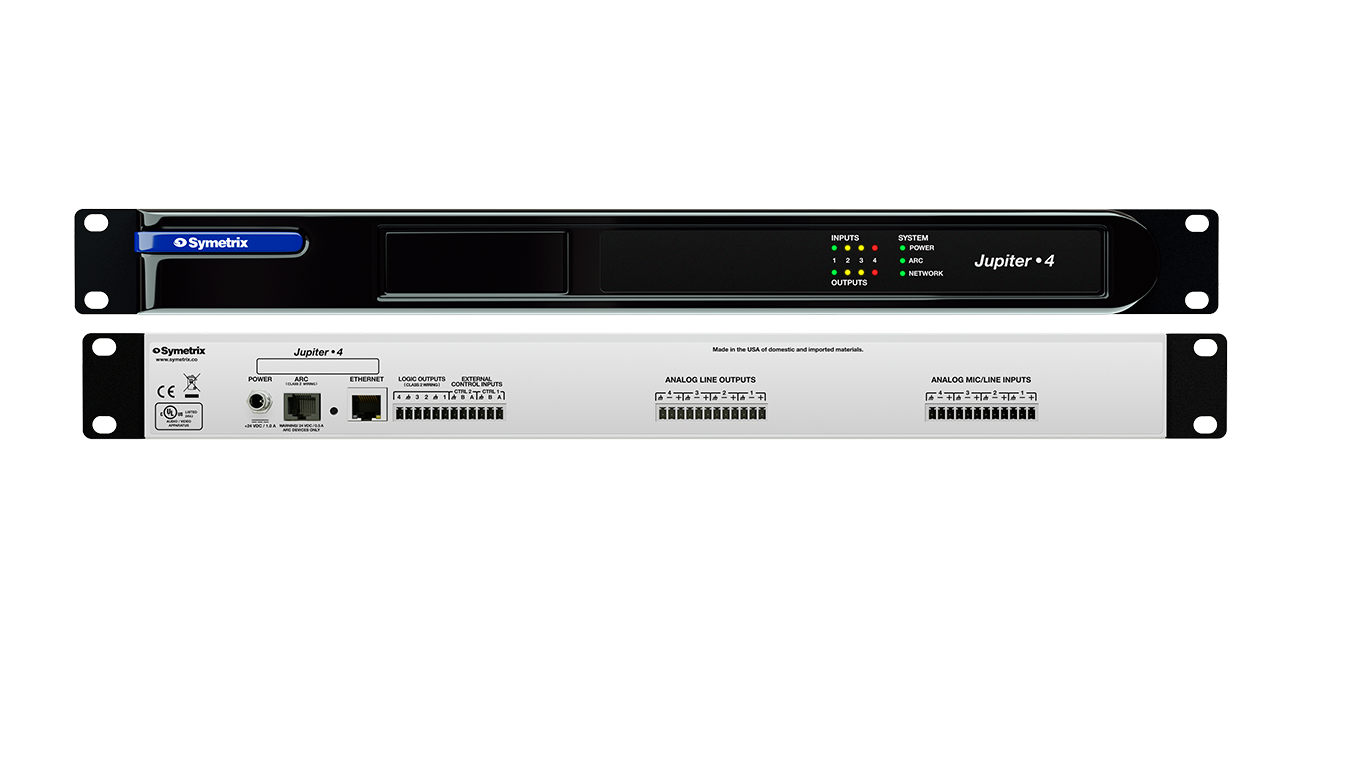

3 Audio Input/Output Configurations.  Jupiter 4 (4 in, 4 out), Jupiter 8 (8 in, 8 out), and Jupiter 12 (12 in, 4 out).

High Feature to Cost Ratio.  Near zero programming time slashes installation costs.

85 Turn-key Apps.  Categories include mixing and routing, public address / distribution, sound reinforcement, special purpose DSP. Signal routings, whether simple or complex, are fully tested and ready to go right out of the box.


Architect and Engineer Specifications

The device shall provide twelve, eight or four inputs (Jupiter 12, 8 or 4 respectively) that are selectable as line or mic level with phantom power and four, eight or four (Jupiter 12, 8 or 4 respectively) line level outputs. All signal processing, mixing and routing functions (including input gains) shall be controllable via software. Audio inputs and outputs shall be accessed via rear panel 3.81 mm terminal block connectors.

The Graphical User Interface (GUI) software shall be installer programmable using the Windows® XP or higher operating system. Computer connection and control shall be via the device’s rear panel Ethernet connector. The GUI shall provide the management of apps, device files and display and control of all signal processing and configuration functions including, but not limited to: Input and Output Gain • Highpass Filtering • Lowpass Filtering • FIR Filters • Crossovers • Parametric Equalization • Graphic Equalization • Expansion • De-Essing • Compression • Limiting • Automatic Gain Control • Ambient Noise Compensation • Feedback Elimination • Automatic Mixing • Priority Mixing • Signal Routing • Delay • Polarity.

The front panel shall include input and output signal level indicators as well as indicators for POWER, NETWORK, and ARC.
