CD-RW900SX

CD Recorder/Player

The CD-RW900SX is for professional CD recording and playback applications. As a CD recorder, this includes final mastering, dubbing from any external source, archiving audio and more. As a CD player, applications include music and dialog playback for industrial facilities, retail and business applications, house of worship, retail environments and more. The CD drive is built to withstand constant use and is high in durability and reliability. Other features include rich playback functions that enable the device to be used as professional-level CD player.

Independent input trim controls for Left and Right and Digital Input Trim

Both the left and right analog inputs have their own analog input gain controls. In addition, the digital input can be controlled for optimal recording levels from a digital source.

Selectable Track Division Functions

The CD-RW900SX has a variety of track division functions.

Automatic Track Division

DD(digital direct)
Detects a track boundary and divides the track when recording digitally from MC or CD.

Time (Time track increment)
Time-based track creation can be set every 1-10 minutes. This method is preferred in some applications like conference recording, or when there is no gap between segments such as recording music.

Level
A track marker can be created based on the input level, adding a new track when the input falls below a specified level (from -24 to -72dB).

Manual Track Division
A new track can be written manually by pressing the RECORD key while the unit is in record mode.

Various Other Functions for More Versatility

SRC (sampling rate converter) accepts different incoming frequencies from the coaxial and optical inputs.
Synchronized recording will begin automatically when a signal is received and will stop when the signal ends. The rec mute function allows instant cut-off the input signal and records four seconds of silence on the disc.

Fade-in and fade-out recording and other various useful functions have been added to the CD-RW900SX for more versatility.

Comprehensive Playback Features Create the Ideal Professional CD Player

In addition to recording, the CD-RW900SX is a full-featured and industrial grade CD player. Functions including auto-cue, auto-ready, pitch and key control, power-on playback, repeat function including A-B repeat and single/program/random playback.

Slot-loading Transport With Gapless Continuous Recording

The new transport was designed for audio use – not a re-packaged computer drive. Improved firmware allows the transport to write track markers without a gap, for seamless continuous live recordings.

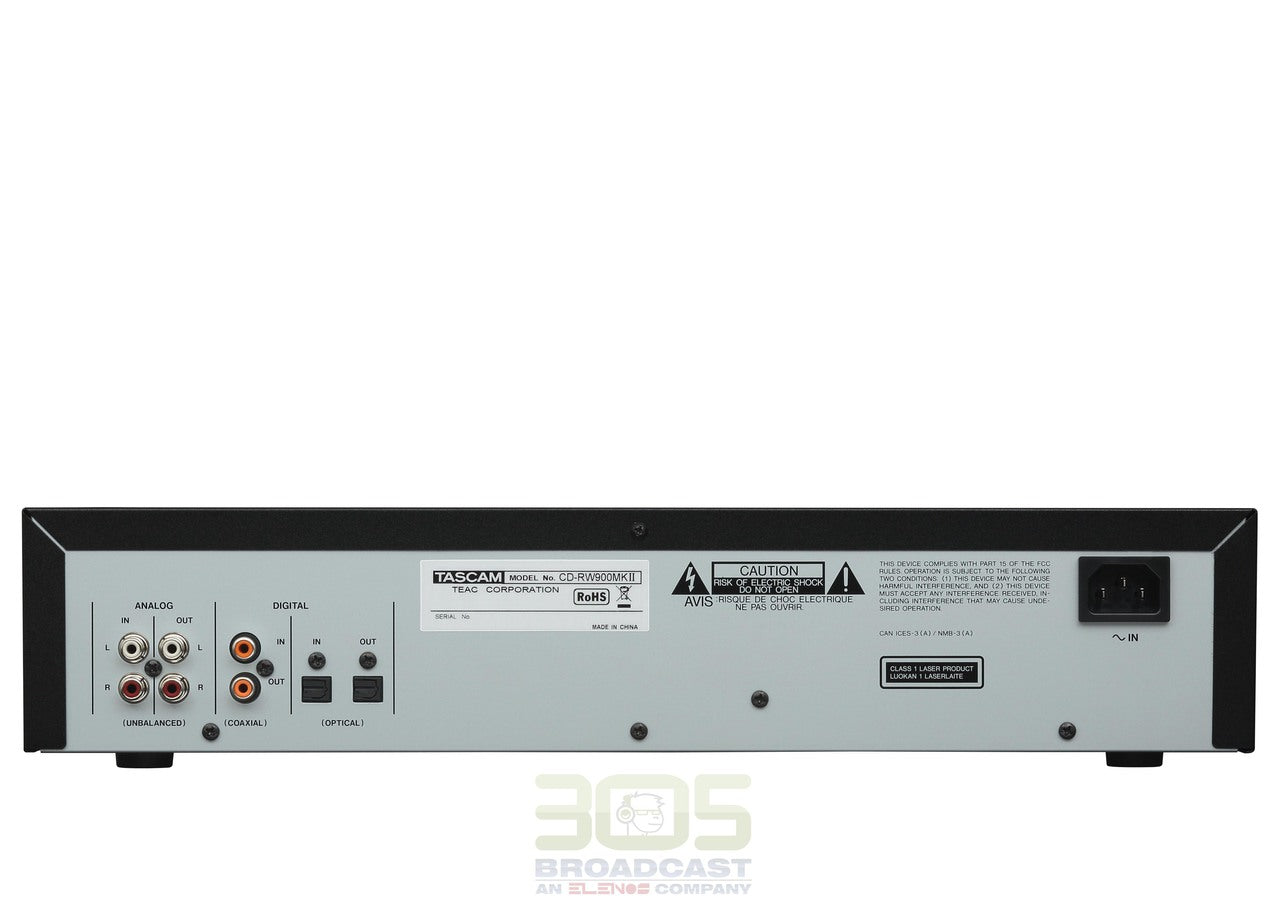

A Selection of Inputs and Outputs to Fit Any System Design

Unbalanced analog and S/PDIF coaxial and optical connections are provided for connection flexibility.

Features:

• Adopts AK4528VM audio codec made by Asahi Kasei Microdevices which has 24-bits processing
• Independent input level controls provides serious level control
• Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
• High speed CD-RW Supports
• CD drive supports playback of CD-DA and Data-CD
• High reliability proprietary TEAC tray drive
• OPC (optimum power control) function: Adjusting the laser power for each disc type
• Fade-in/Fade-out recording function (1 to 30 seconds, 1 seconds increments)
• Sync recording function: Automatically start/stop recording at a preset level (–24dB to –72dB, 6dB increments)
• Digital volume for adjusting recording level seriously (–∞, –54.0dB to 18.0dB)
• Automatic track division: Automatically insert a track division at a preset condition
• Manual track division: Insert a track division by manual operation
• Time track division: Automatically insert a track division per preset interval (1 to 10 minutes, 1 minutes increments)
• Rec-mute function: Recording four seconds of silence on the disc
• Selectable maximum recording track numbers (automatically stop at preset number)
• Erase function: Erase selected track or disc (for CD-RW)
• Four playback modes (continuous, single, program, random)
• Repeat playback function (continuous, single, program, random, A-B)
• Fade-in/Fade-out playback function (OFF, 1 to 30 seconds, 1 seconds increments)
• Auto-cue function: Automatically pause by detection of a sound of start point in a track
• Auto-ready function: Automatically pause at head of next track after playback previous track
• Pitch control playback function: Pitch and speed can be varied (±16%, 0.1 to 1.0% increments, for CD-DA)
• Key control playback function: (b1 to b6, #1 to #6, half-note increments, for CD-DA)
• When using key control function with pitch control function, these function provides speed changing without changing pitch
• Timer playback function (external timer sold separately): Automatically begin playback when turned on
• Unfinalize function (for CD-RW): Erase TOC information of finalized CD-RW
• Time display switching (elapsed track/disc time, remaining track/disc time)
• CD-text editing supports
• PS/2 keyboard (sold separately) connection for remote control or entering a title
• SRC (sampling rate converter): Automatically convert the incoming frequency to 44.1kHz (for 32 to 48kHz)
• RCA analog unbalanced inputs/outputs
• COAXIAL digital input/output (IEC60958-3:S/PDIF)
• OPTICAL digital input/output (IEC60958-3:S/PDIF)

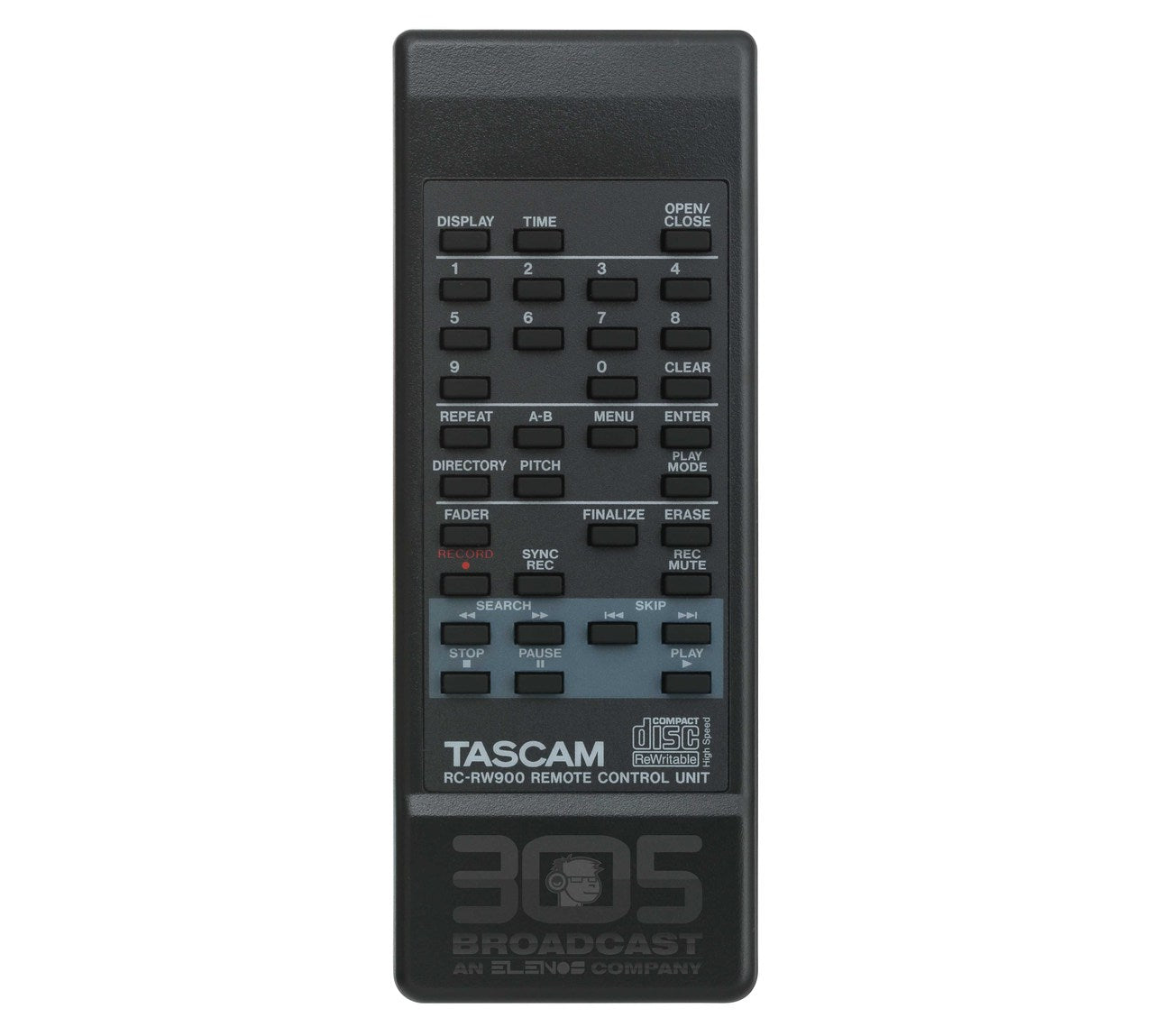

• Wireless remote controller with 10-key included
• Headphone output (20mW/ch)
• 3-polar AC sockets with the detachable AC cable
• 2U EIA rackmountable
• RoHS certified
