Tascam ML-16D

Now compatible with SMPTE ST 2110-30

Dante module firmware V1.2.0.0 now supports SMPTE ST-2110-30, which will enable a smooth IP transmission of PCM digital audio for structuring broadcast systems.

* Audinate's provided Dante Domain Manager (DDM) v1.1 or higher is required for the operation of SMPTE ST 2110-30.

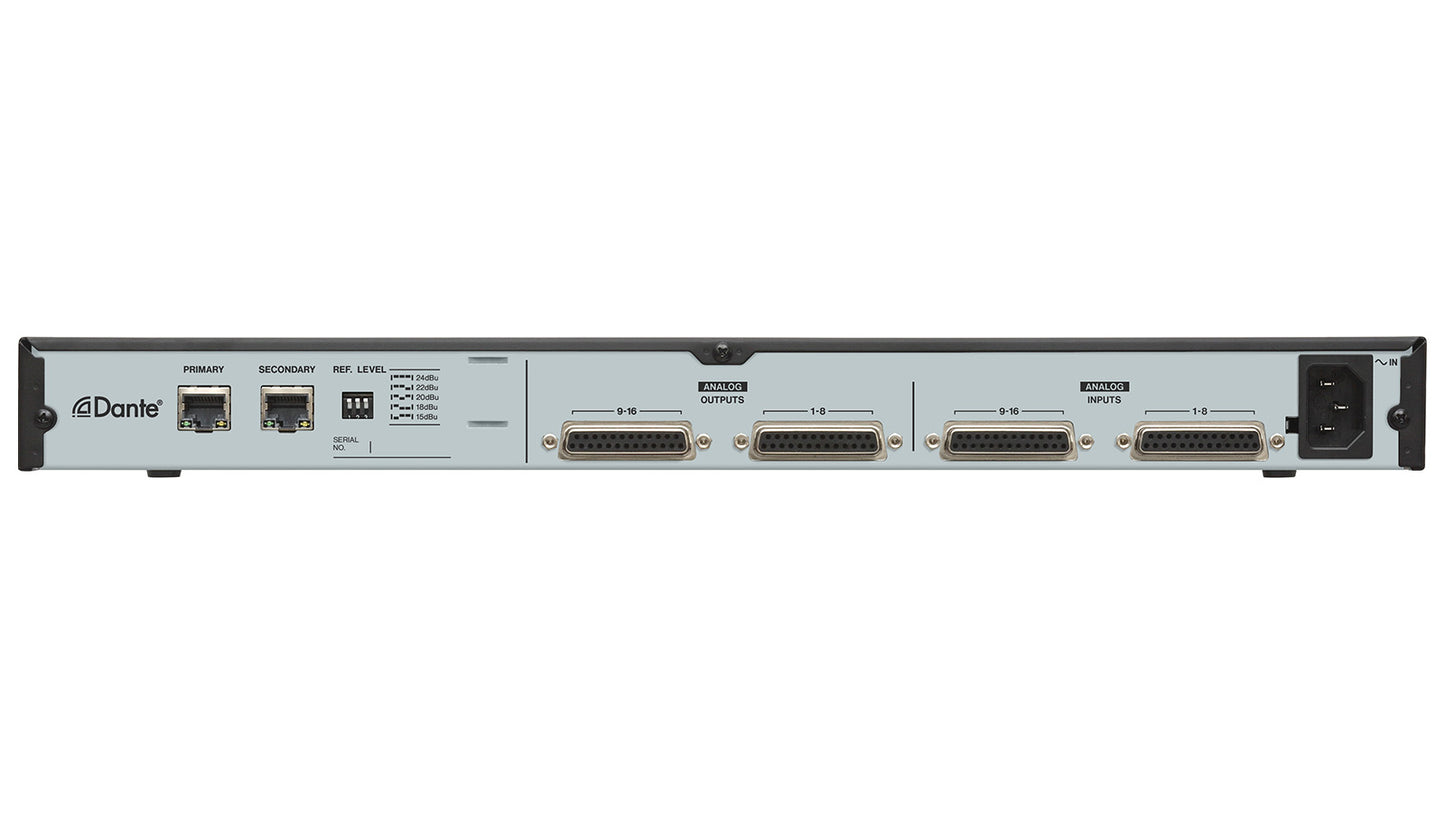

Primary and Secondary network connections redundancy and security

Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-16D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.

ML-16D



Flexible routing to connected Dante-compatible devices

The ML-16D uses Dante Controller to configure the main unit and to connect to other Dante-compatible devices. Dante Controller enables flexible routing configuration to other Dante-compatible devices.

About Dante Controller
Dante Controller is a free software application released by Audinate.
Download the latest version from Audinate website.
Audinate download page : https://www.audinate.com/products/software/dante-controller

ML-16DDante Controller Routing windowML-16DDante Controller Device Config. window



Possible to interconnect with AES67 and Ravenna systems

Dante supports AES67, which enables audio connection with systems using AES67 and AES67-compatible protocols including Ravenna.

ML-16D

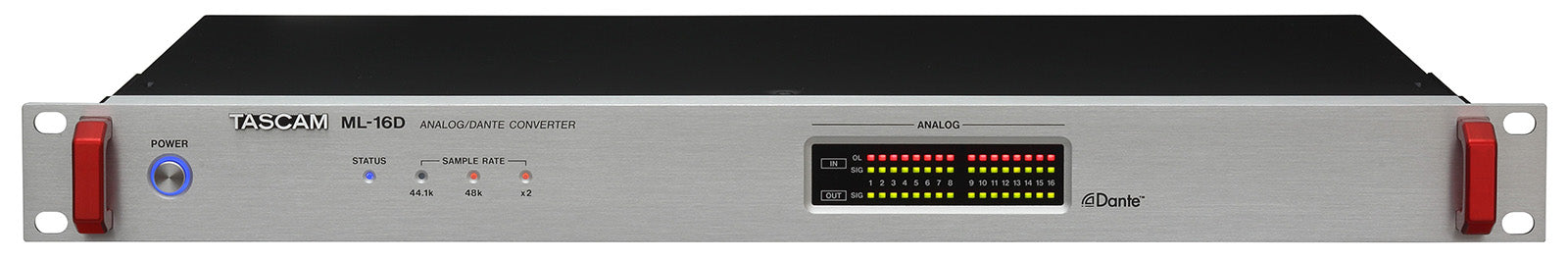

Integrated Signal/Overload indicator

The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than ?60dBFs.

ML-16D
5 selectable reference levels which can accommodate to a variety of scenes
ML-16D

The TASCAM ML-16D features selectable reference level setting from 5 maximum level options: ?, ?, ?, and ? (the standard level is ?) and ? (the standard level is ?), which can accommodate to a variety of purposes including professional use in broadcasting studios, public address systems and recording environments.

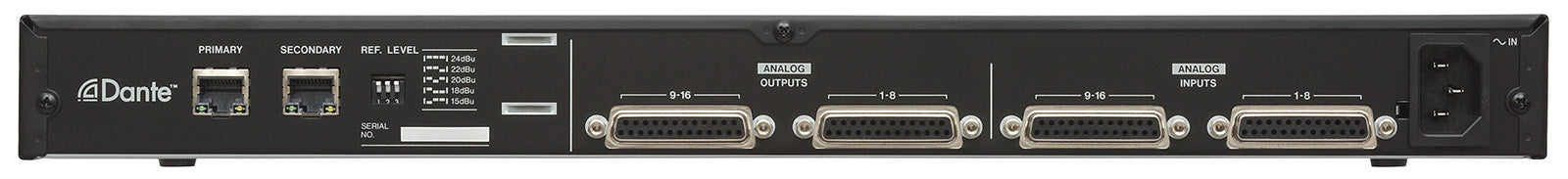

Flexible choice of connectors according to purposes
ML-16D is equipped with D-sub 25-pin connectors as analog line input/output connectors, and combining with optional breakout boxes enables conversion to Euro Block and XLR.
ML-16D



Example of conversion using Euro Block breakout box
ML-16D



Example of XLR connector conversion using XLR IN breakout box and XLR OUT breakout box
ML-16D

Features at a glance

  • Dante focused interface for connection of external audio into or out of a Dante audio network
  • 16 channel analog line input and 16 analog line outputs (48k/96kHz) using four D-Sub connectors
  • Dual redundant Ethernet jacks which support both primary and secondary connections
    1. Dante primary and secondary connectors support redundancy
    2. Compatible with SMPTE ST 2110-30
    3. AES67 and Ravenna compatible
    4. Dante Controller for flexible routing
  • Up to 96kHz/24-bit quality
  • Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals
  • Reference level dip switches for selectable DBu level metering
  • LED display for signal level and overload per input/output channel
  • Firmware updatable via Dante port
  • Equipped with D-sub 25-pin connectors as line input/output connectors
  • 1U rack mount size
  • Optional BO-32DE (D-sub/Euro Block breakout box) supports Euro Block connectors
  • Optional BO-16DX/IN and BO-16DX/OUT (D-sub/XLR breakout box) support XLR connectors
