Tascam ML-32D

Now compatible with SMPTE ST 2110-30

Dante module firmware V1.2.0.0 now supports SMPTE ST-2110-30, which will enable a smooth IP transmission of PCM digital audio for structuring broadcast systems.

* Audinate's provided Dante Domain Manager (DDM) v1.1 or higher is required for the operation of SMPTE ST 2110-30.

Primary and Secondary network connections redundancy and security

Primary and secondary connectors enable building a redundant system with a duplex network. Should the primary network route fails the ML-32D automatically switches to the secondary network route. This highly secure system prevents interruption and introduces no noise during the switch.

Flexible routing to connected Dante-compatible devices

The ML-32D uses Dante Controller to configure the main unit and to connect to other Dante-compatible devices. Dante Controller enables flexible routing configuration to other Dante-compatible devices.

About Dante Controller
Dante Controller is a free software application released by Audinate.
Download the latest version from Audinate website.
Audinate download page :

ML-32DDante Controller Routing windowML-32DDante Controller Device Config. window


Possible to interconnect with AES67 and Ravenna systems

Dante supports AES67, which enables audio connection with systems using AES67 and AES67-compatible protocols including Ravenna.

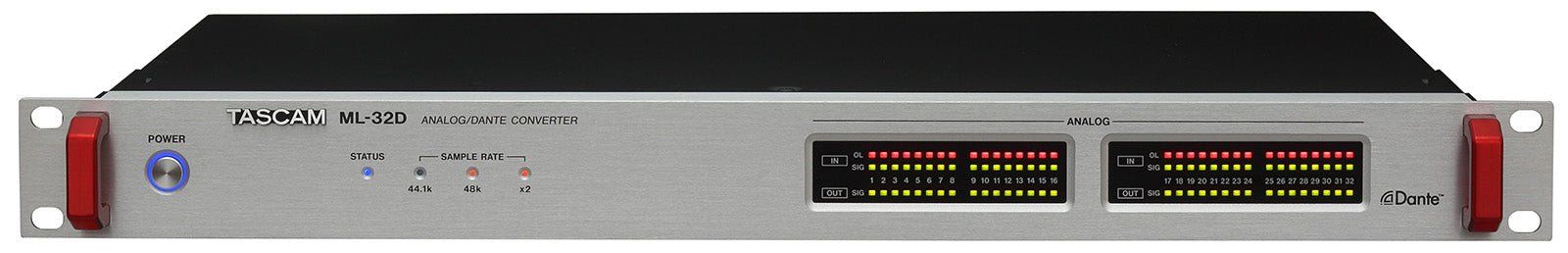

Integrated Signal/Overload indicator

The front panel is equipped with a signal/overload indicator that enables monitoring of analog input/output signals. The signal indicator turns on when a signal level becomes lower than ?60dBFs.

5 selectable reference levels which can accommodate to a variety of scenes

The TASCAM ML-32D features selectable reference level setting from 5 maximum level options: ?, ?, ?, and ? (the standard level is ?) and ? (the standard level is ?), which can accommodate to a variety of purposes including professional use in broadcasting studios, public address systems and recording environments.

Breakout boxes that enable flexible choice of connectors according to purposes

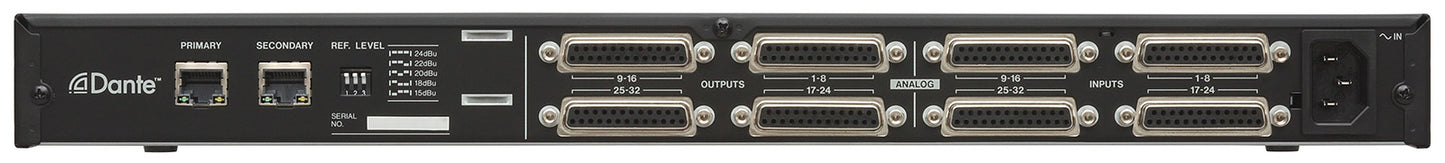

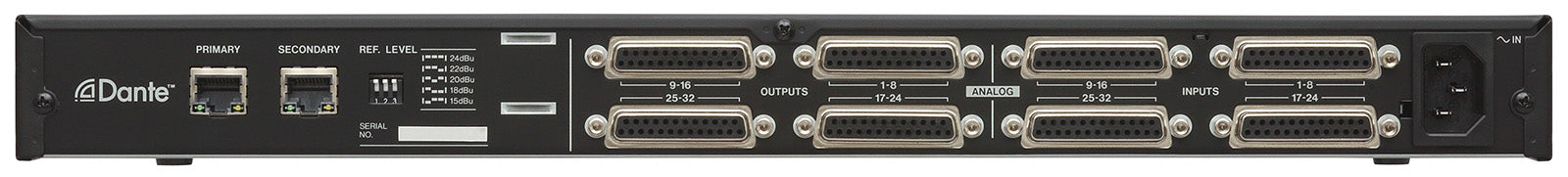

ML-32D is equipped with D-sub 25-pin connectors as analog line input/output connectors, and combining with optional breakout boxes enables conversion to Euro Block and XLR.


Example of conversion using 2 Euro Block breakout boxes


Example of XLR connector conversion using 2 XLR IN breakout boxes and 2 XLR OUT breakout boxes

Features at a glance

  • 32-channel analog line input/output
  • Equipped with Dante interfaces
    1. Dante primary and secondary connectors support redundancy
    2. Compatible with SMPTE ST 2110-30
    3. AES67 is also supported. Possible to connect with AES67-compatible network audios including Ravenna
    4. Dante Controller enables flexible routing
  • Supports up to 96kHz/24bit
  • Equipped with a signal/overload indicator that enables level monitoring of analog input/output signals
  • 5 selectable reference levels which can accommodate to a variety of scenes including professional usages, public addresses, and usages in broadcasting studios
  • Equipped with a STATUS indicator for indicating failures and errors of the device
  • Firmware update via a Dante interface is possible
  • Equipped with D-sub 25-pin connectors as line input/output connectors
  • 1U rack mount size
  • Using an optional BO-32DE (D-sub/Euro Block breakout box) enables supporting Euro Block connectors which are optimal for professional usages
  • Using an optional BO-16DX/IN and BO-16DX/OUT (D-sub/XLR breakout box) enables supporting XLR connectors which have multiple usages including usage as a stage box.
