Tascam ML-4D/OUT-X - 4 Channel Line Output Dante Converter with built-in DSP Mixer

$649.00 $799.00 You Save 18% ($150.00)
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.
Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

Tascam ML-4D/OUT-X - 4 Channel Line Output Dante Converter with built-in DSP Mixer

Built-in DSP 4 line outputs Dante converter to respond to various needs of contractor market and professional audio scene.

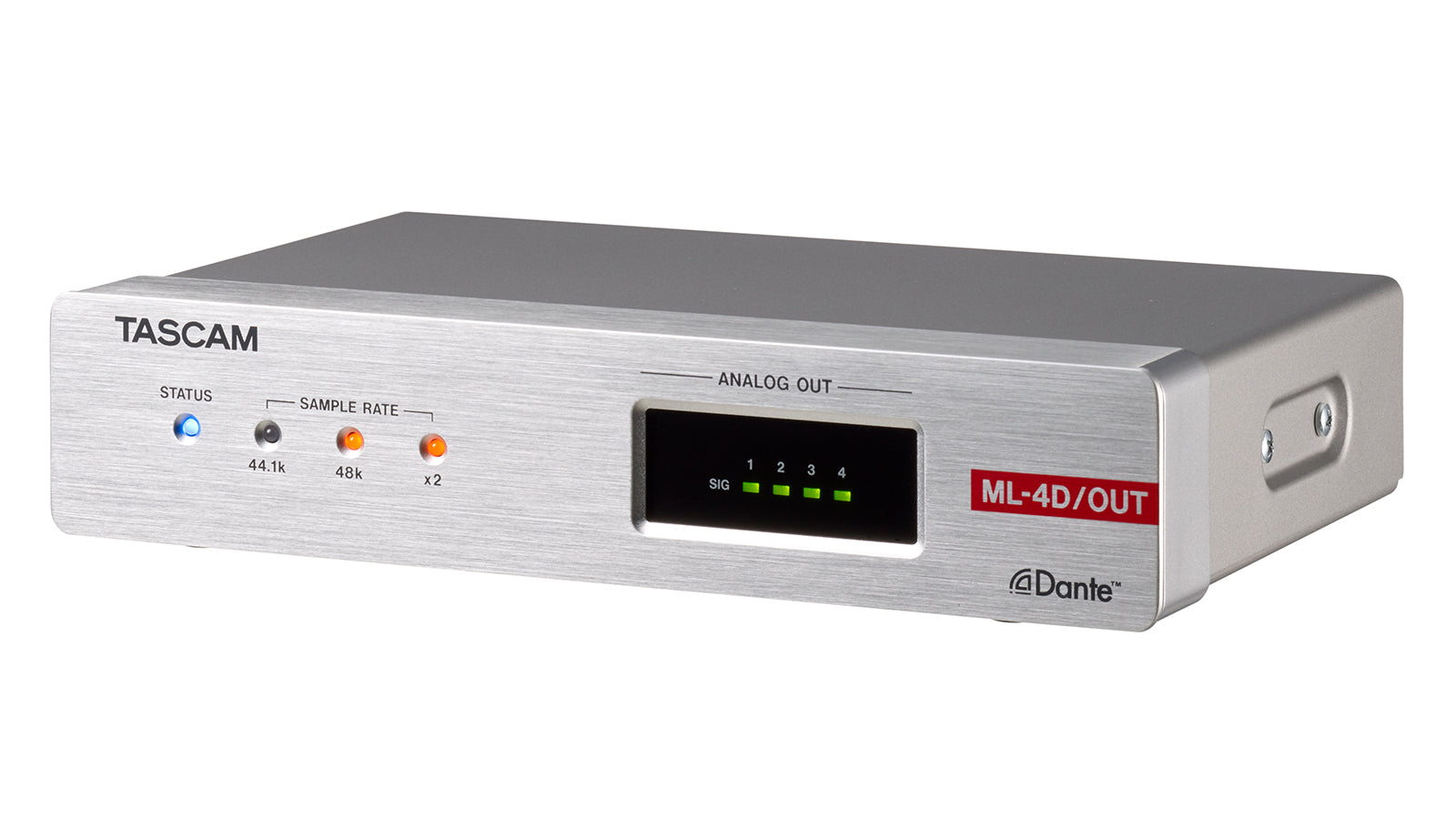

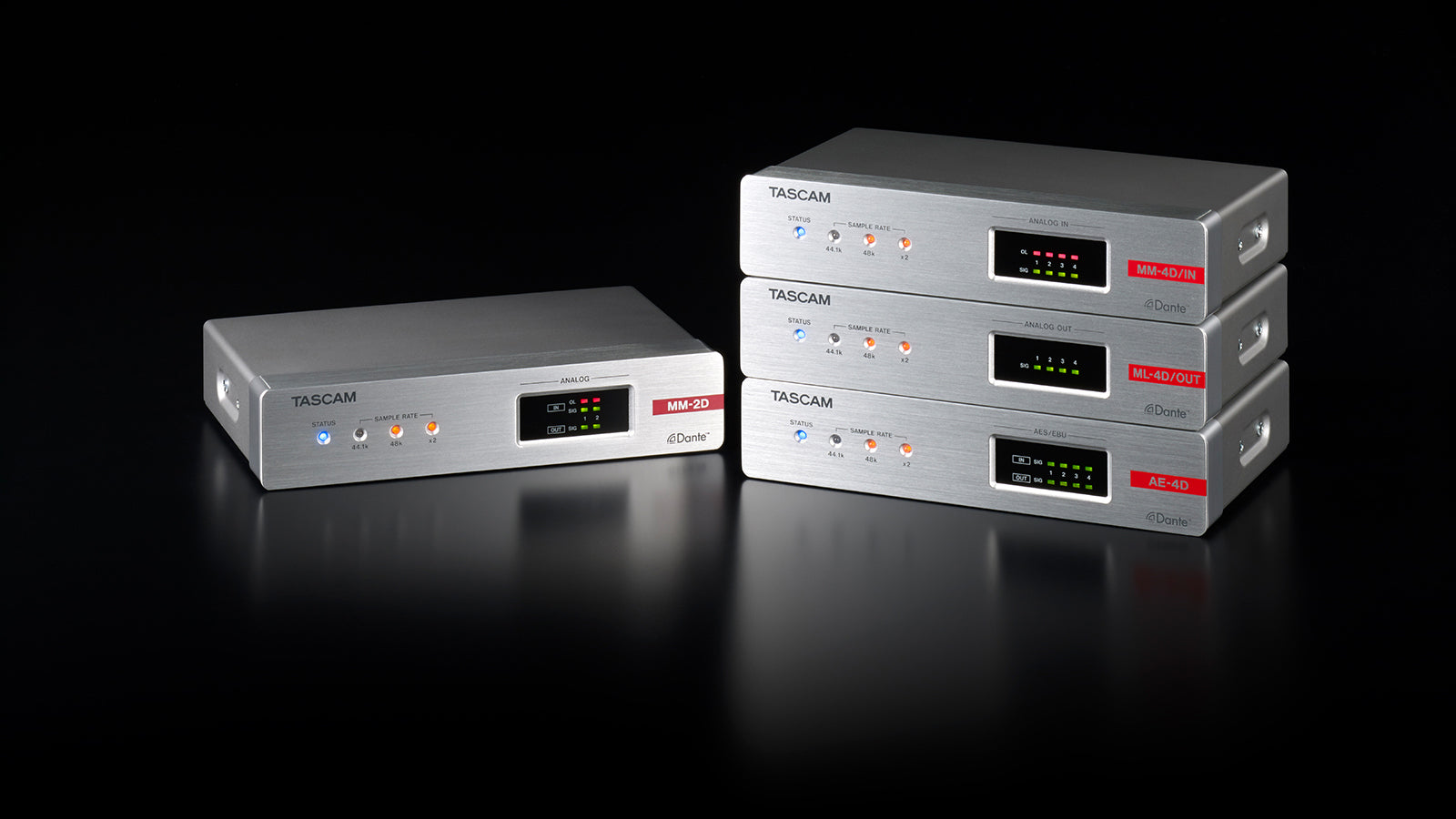

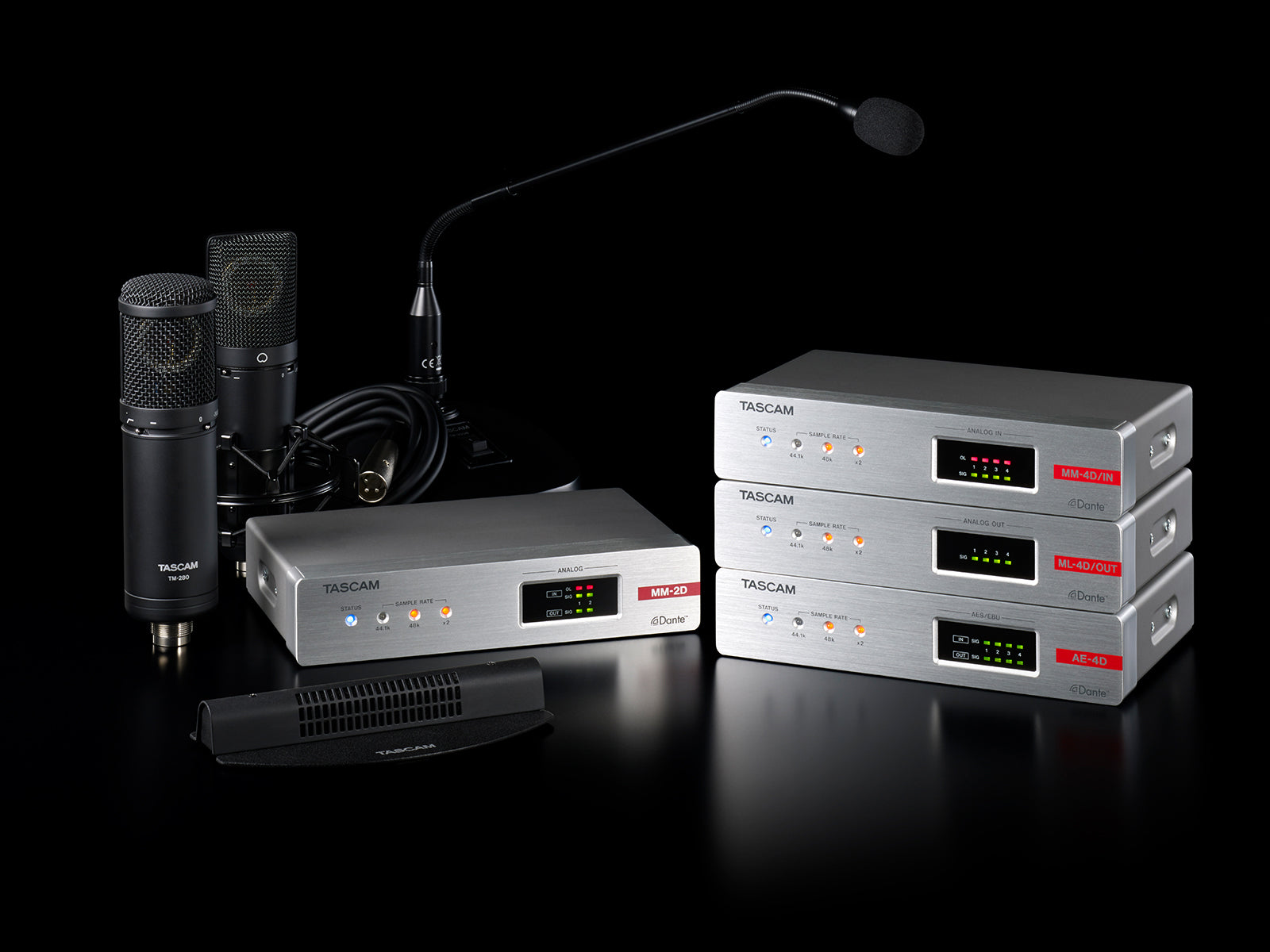

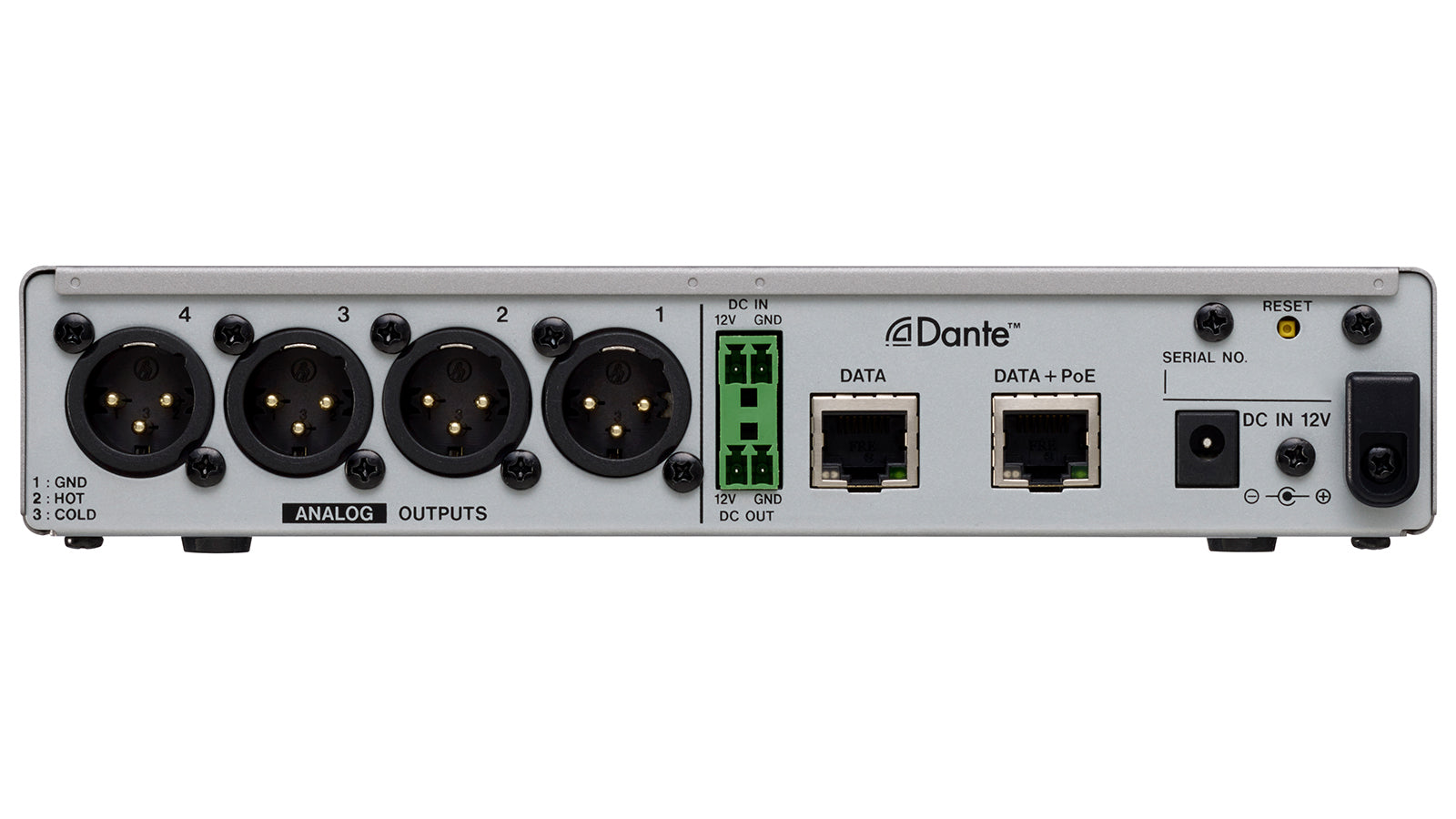

The ML-4D/OUT-X is a compact converter that converts Dante input signals into 4-channel line output signals. With half the size of a standard 1U rack, the ML-4D/OUT-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. ML-4D/OUT-X supports up to 96kHz/24bit and uses XLR connectors for analog line output.

4 Line Output, 4 Dante Input/Output

The ML-4D/OUT-X not only converts Dante signals into 4-channel line signals; it can also convert them into 4-channel Dante output signals, making it possible to direct these to a Dante established network using the built-in DSP matrix mixer.

Built-in 4 in/4 out matrix mixer

Built-In 4 in/4 Out Matrix Mixer

Using the built-in matrix mixer, users can mix 4-channel Dante inputs and configure settings on each of the four output zones. The matrix mixer is also equipped with a ducking function and an ambient noise compensator function, which detects the level of environmental sounds and automatically adjusts the input level of the source.

Input/Output Routing

Flexible routing allows users to choose the output zone of 4 Dante inputs or the built-in matrix mixer as 4 line output and/or 4 Dante output. The ML-4D/OUT-X can be also used a as a simple line output unit by bypassing the matrix mixer.

Input/output routing
10 band EQ and a variety of output effects included

10 Band EQ and a Variety of Output Effects Included

10 band EQ, high pass filter, low pass filter, delay, and limiter effects included. They can be finely adjusted depending on the powered speakers, or to the environment in which the unit is used.

PoE Supported

Power supply can be provided to the unit via PoE (Power over Ethernet). No need for AC adaptors; power supply construction fees and installation costs can be reduced by using a PoE compatible network switch.

PoE supported
Remote control via control software

Remote Control via Control Software

Controlling effects or the matrix mixer can be easily done through the dedicated control software; depending on the amount of controls the user needs, there are two types:

  • TASCAM DCP CONNECT, designed for system integrators/managers that handle the configuration and settings of an entire system.
  • TASCAM EZ CONNECT, designed for end-users and allowing them to use simple controls.

Features:

  • 4 line output
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Up to 24bit/96kHz
  • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 4 in/4 out matrix mixer)
  • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 Mode
  • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
  • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
  • 2 types of user control software available for Windows/Mac/iOS/Android devices:
    For integrators:input/output routing selection, DSP/design/scene settings of the complete system, etc.
    For end-users:simple app design for only the necessary functions such as area volume settings, etc.
  • Remote control via Dante
  • Half-rack mountable size

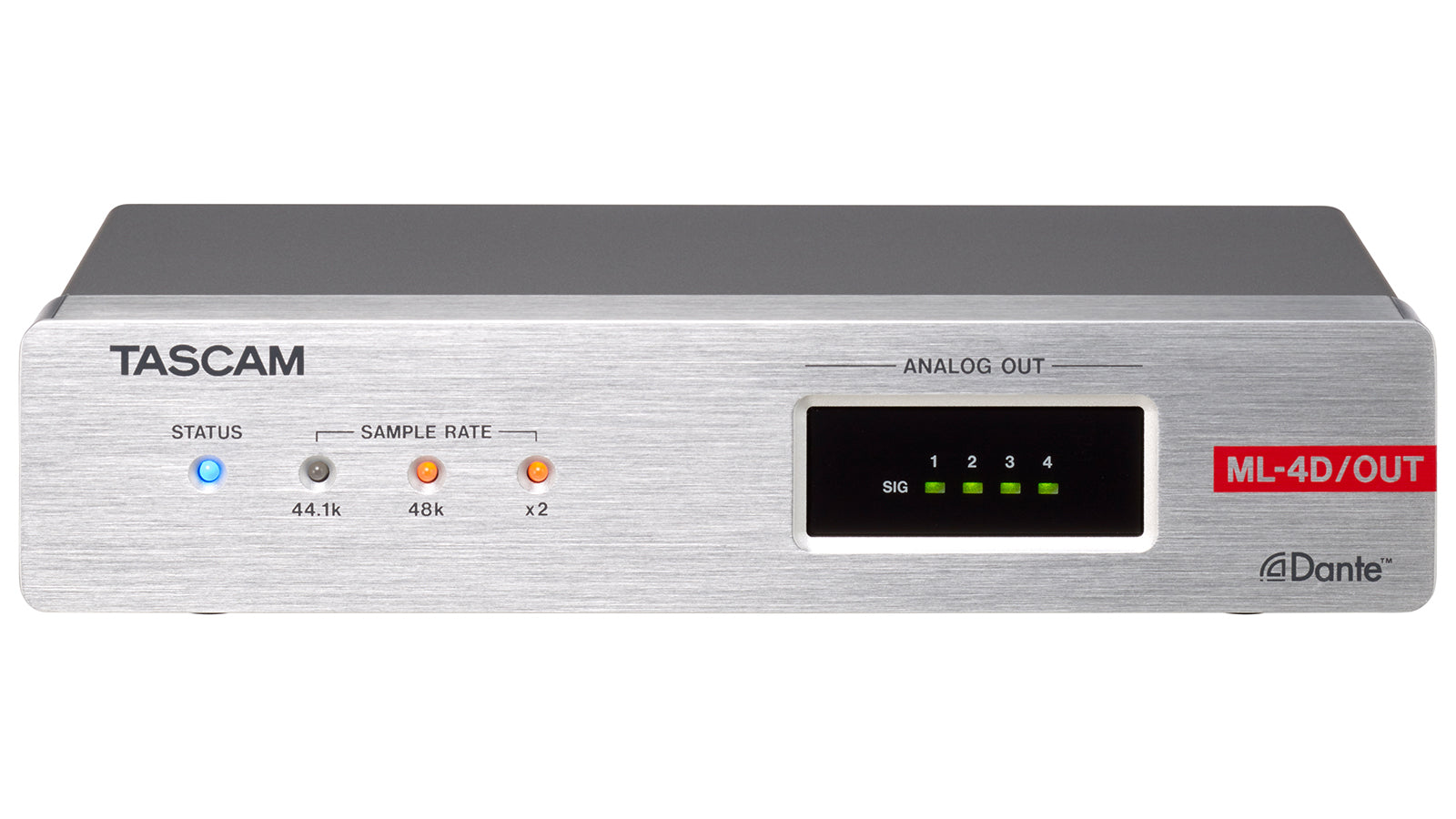

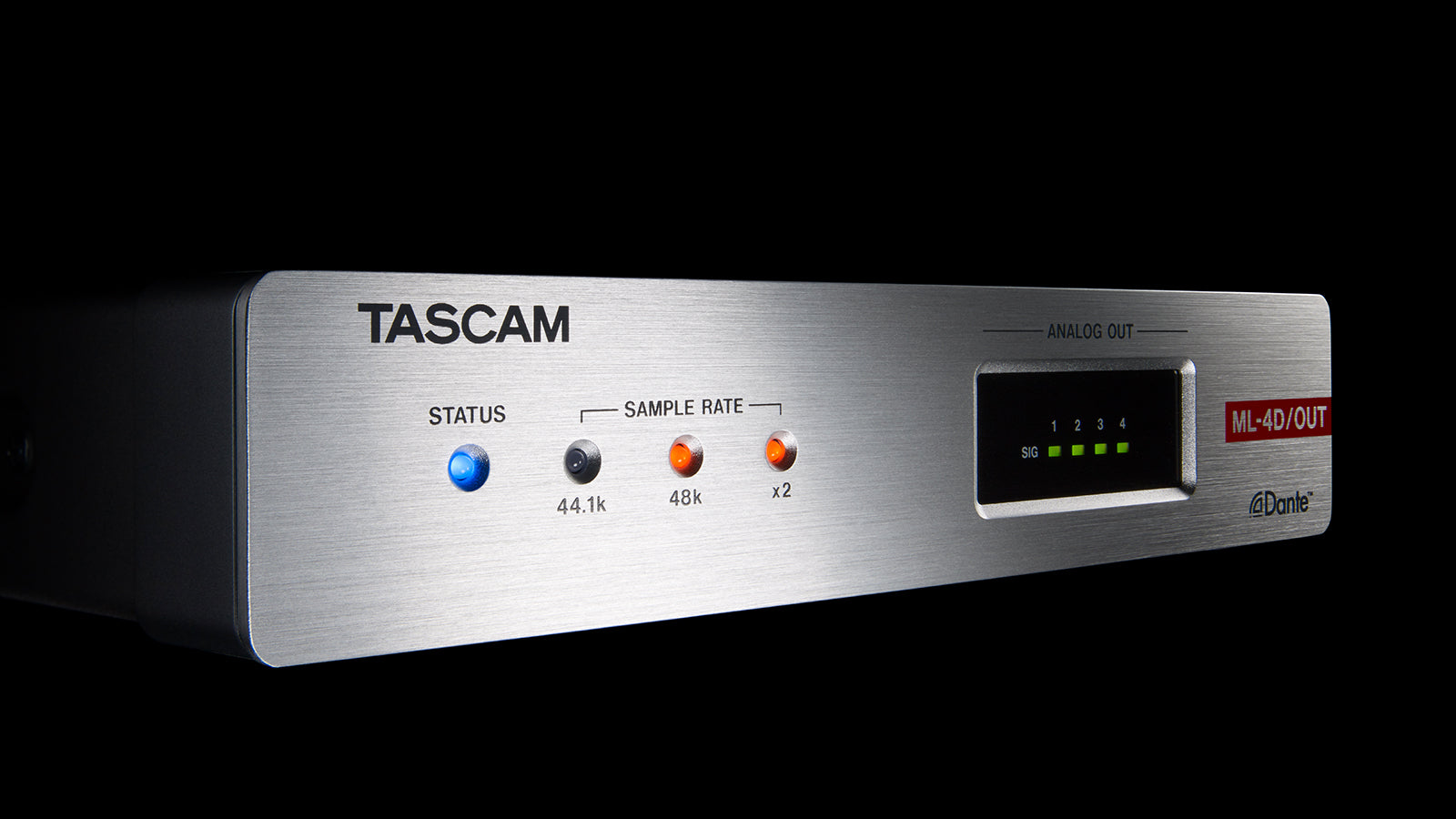

  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor line output signals
  • Configurable reference level (via remote control only)
  • Surface rack mountable angles for installation under desks included
  • Optional accessories:
    AC adapter PS-P1220E for redundant power supply available
    Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case
