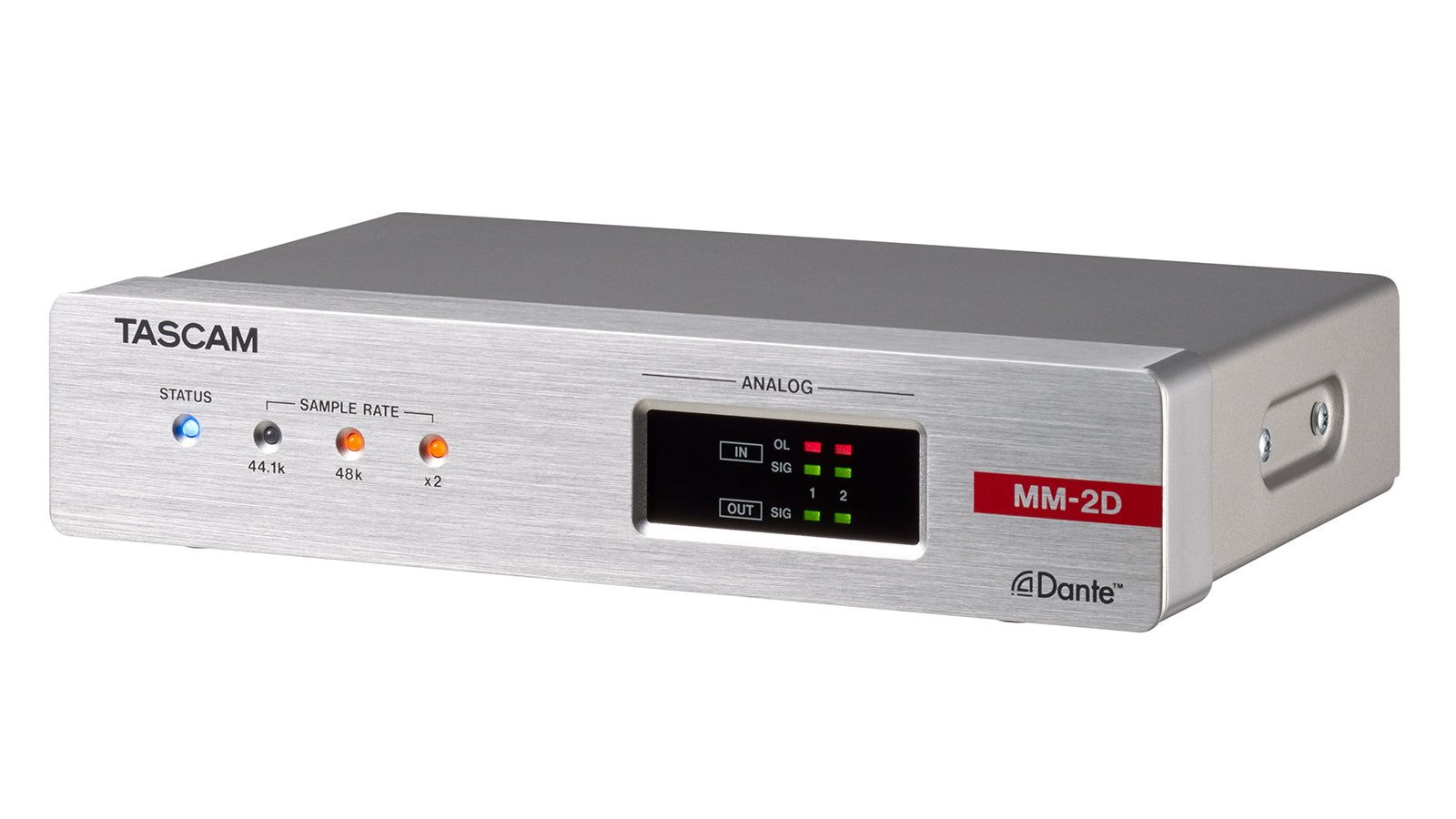

Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer
Tascam MM-2D-E 2-Channel Mic/Line Input/Output Dante Converter with Built-In DSP Mixer
No se pudo cargar la disponibilidad de retiro
Tascam MM-2D-E - 2 Channel Mic/Line Input/Output Dante Converter with built-in DSP Mixer Euroblock
Built-in DSP 2 mic/line input / 2 line output Dante converter to respond to various needs of contractor market and professional audio scene.
2 Mic/Line Input/Output, 4 Dante Input/Output
The MM-2D-E can either convert 2-channel mic/line input signals into 2 Dante output signals, or 2 Dante input signals into 2-channel line output signals. In addition, it also supports 4-channel Dante input/output as well, making it possible to use audio sources within an established Dante network.
Phantom Power and Remote Gain Control Compatible Mic Preamps
The installed mic preamps support phantom power (+48V) and the input gain can be remote controlled via TASCAM DCP CONNECT software, via Dante or other external controllers.
TASCAM Studio Quality Mic Preamps Installed
The MM-2D-E has installed two natural-sounding, high grade TASCAM mic preamps made with all the knowledge and experience cultivated through the years in the making of pro audio equipment. Input range covers from -74 dBu to +26 dBu, with equivalent input noise achieving less than -125 dB, and signal-noise ratio over 105 dB.
Compressor, 4 Band Parametric EQ, Auto Level, and More Effects Included
They can be finely adjusted depending on the mic/line equipment used.
Built-In 6 In/4 Out Matrix Mixer
Using the built-in matrix mixer, users can mix up to 6 input sources (2-channel mic/line inputs with 4-channel Dante inputs) and configure the settings on each of the four output zones. The matrix mixer is also equipped with a ducking function and an ambient noise compensator function, which detects the level of environmental sounds and automatically adjusts the input level of the source.
Input/Output Routing
Flexible routing allows users to choose the output zone of 2 mic/line inputs, 4 Dante inputs, or the built-in matrix mixer as 2 line output and/or 4 Dante output. The MM-2D-E can be also used as a simple mic/line input unit by bypassing the matrix mixer.
10 Band EQ and a Variety of Output Effects Included
10 band EQ, high pass filter, low pass filter, delay, and limiter effects included. They can be finely adjusted depending on the powered speakers, or to the environment in which the unit is used.
PoE Supported
Power supply can be provided to the unit via PoE (Power over Ethernet).
No need for AC adaptors; power supply construction fees and installation costs can be reduced by using a PoE compatible network switch.
Remote Control via Control Software
Controlling effects or the matrix mixer can be easily done through the dedicated control software; depending on the amount of controls the user needs, there are two types:
- TASCAM DCP CONNECT, designed for system integrators/managers that handle the configuration and settings of an entire system.
- TASCAM EZ CONNECT, designed for end-users and allowing them to use simple controls.
Features:
- 2-channel mic/line input with phantom power (+48v) support
- Supports remote mic gain control
- 2 line output
- 4 Dante input/output
- Supports PoE (Power over Ethernet)
- Up to 24bit/96kHz
- Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 6 in/4 out matrix mixer)
- Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
- Compatible with Dante Domain Manager and Dante AES67 Mode
- Flexible scene preset function allows to work in different area situations (Up to 50 presets)
- Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
- 2 types of user control software available for Windows/Mac/iOS/Android devices:
For integrators: input/output routing selection, DSP/design/scene settings of the complete system, etc.
For end-users: simple app design for only the necessary functions such as area volume settings, etc. - Remote control via GPI and Dante
- Half-rack mountable size

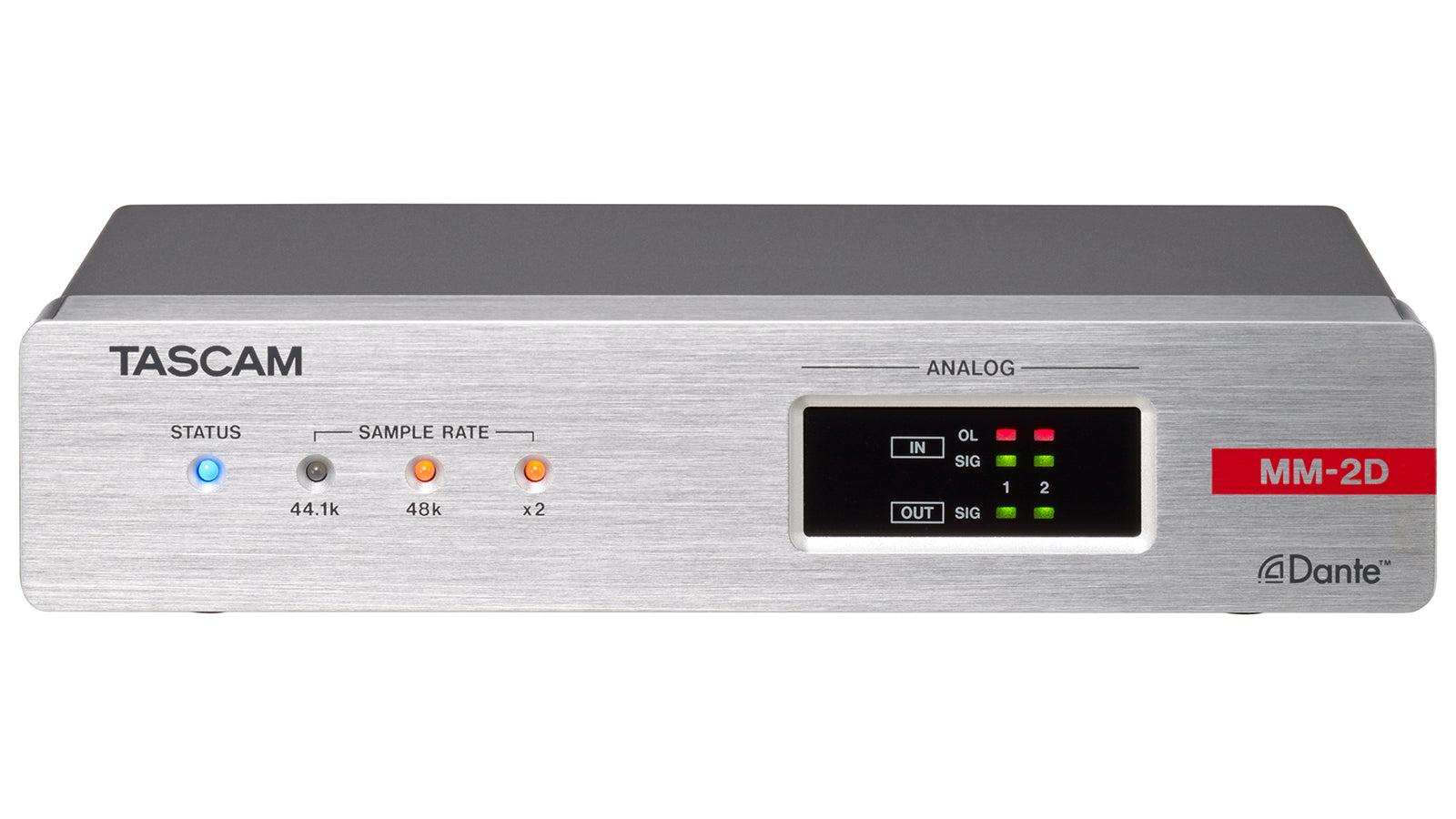

- Equipped with indicators that show LAN/Dante connection status and sample rate
- Equipped with signal indicators that monitor line input/output signals
- Configurable reference level (via remote control only)
- Surface rack mountable angles for installation under desks included
- Optional accessories:
AC adapter PS-P1220E for redundant power supply available
Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case
