MM-2D-X

Tascam MM-2D-X - 2 Channel Mic/Line Input/Output Dante Converter with built-in DSP Mixer XLR

$669.00
We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Tascam MM-2D-X - 2 Channel Mic/Line Input/Output Dante Converter with built-in DSP Mixer XLR

Built-in DSP 2 mic/line input / 2 line output Dante converter to respond to various needs of contractor market and professional audio scene.

MM-2D-X


The MM-2D-X is a compact converter that converts 2-channel mic/line input/output signals into Dante signals. With half the size of a standard 1U rack, the MM-2D-X is suitable for different Dante systems as an exquisite analog output unit. The built-in DSP mixer enables small scale systems to fully perform with a variety of input/output models the TASCAM Dante Compact Processor Series offers. MM-2D-X supports up to 96kHz/24bit and uses XLR connectors for analog mic/line input/output.

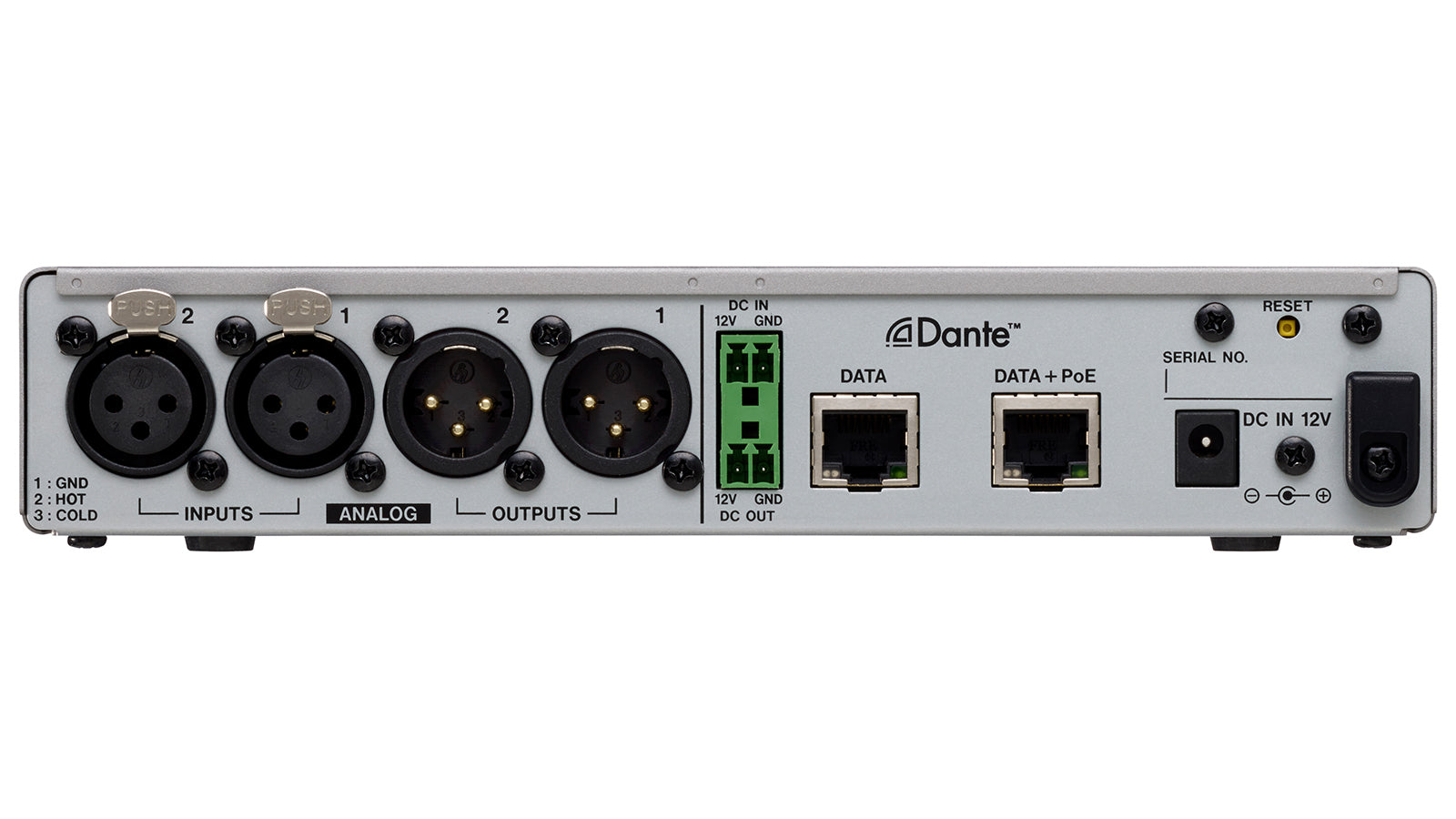

2 mic/line input/output, 4 Dante input/output

The MM-2D-X can either convert 2-channel mic/line input signals into 2 Dante output signals, or 2 Dante input signals into 2-channel line output signals. In addition, it also supports 4-channel Dante input/output as well, making it possible to use audio sources within an established Dante network.

MM-2D-X

Features:

  • 2-channel mic/line input with phantom power (+48v) support
  • Supports remote mic gain control
  • 2 line output
  • 4 Dante input/output
  • Supports PoE (Power over Ethernet)
  • Up to 24bit/96kHz
  • Includes a variety of DSP functions for optimal use in different scenes/environments (Output effects, 6 in/4 out matrix mixer)
  • Supports Dante daisy chain; this allows two Dante Compact Processor models to be connected without a network switch
  • Compatible with Dante Domain Manager and Dante AES67 Mode
  • Flexible scene preset function allows to work in different area situations (Up to 50 presets)
  • Timer event function allows to automatically switch scenes at a specified time (planned to be compatible on a future version update)
  • 2 types of user control software available for Windows/Mac/iOS/Android devices:
    For integrators:input/output routing selection, DSP/design/scene settings of the complete system, etc.
    For end-users:simple app design for only the necessary functions such as area volume settings, etc.
  • Remote control via Dante
  • Half-rack mountable size

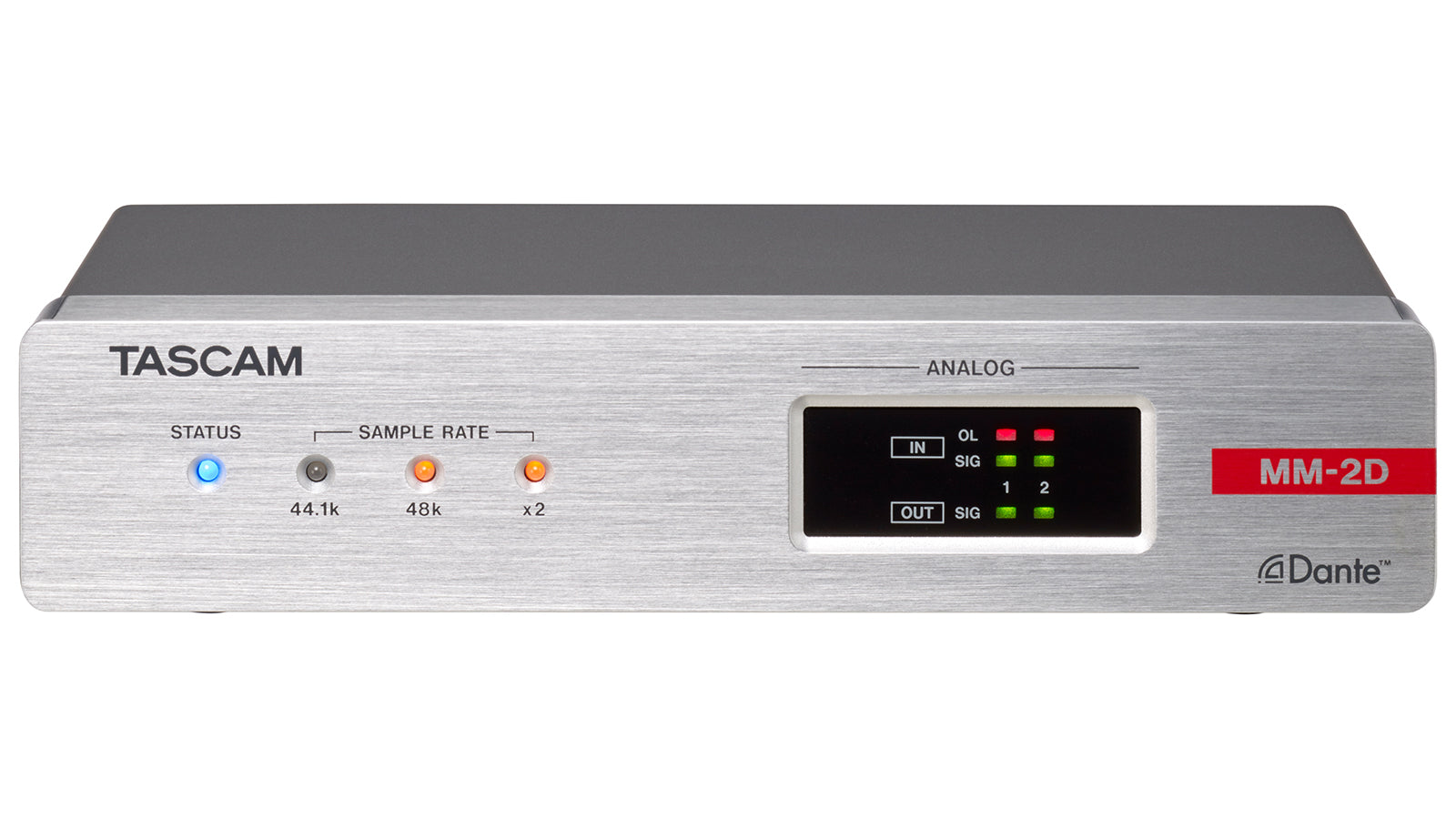

  • Equipped with indicators that show LAN/Dante connection status and sample rate
  • Equipped with signal indicators that monitor line input/output signals
  • Configurable reference level (via remote control only)
  • Surface rack mountable angles for installation under desks included
  • Optional accessories:
    AC adapter PS-P1220E for redundant power supply available
    Rack-mountable shelf AK-RS1 to install and store two Dante Compact Processor models in a 19 inch rack case
