Tascam MZ-123BT 3-Channel Rackmount Multi-Zone Mixer With Bluetooth

Name: Tascam MZ-123BT 3-Channel Rackmount Multi-Zone Mixer With Bluetooth
Brand: Tascam
SKU: MZ-123BT
Price: 599.00 USD
Availability: InStock

$599.00 $799.00 Ahorras 25% ($200.00)

We try to have plenty of inventory available to satisfy our customer's needs, however Due to the recent supply chain situation. We suggest you verify by contacting us Availability before placing your order online.

Liquid error (sections/product-template line 280): Could not find asset snippets/rfq_button.liquid

Tascam MZ-123BT 3-Channel Rackmount Multi-Zone Mixer With Bluetooth

The TASCAM MZ-123BT is a compact 1U multi-channel, multi-zone professional installation mixer that provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities. Featuring a simple, intuitive layout for ease of operation, the Bluetooth®-enabled MZ-123BT comes equipped with 2 versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging.

Discrete Zone Audio Control and Routing

Three discrete Zone Outputs with Volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environment.

Three Outputs with Euroblock Connectors

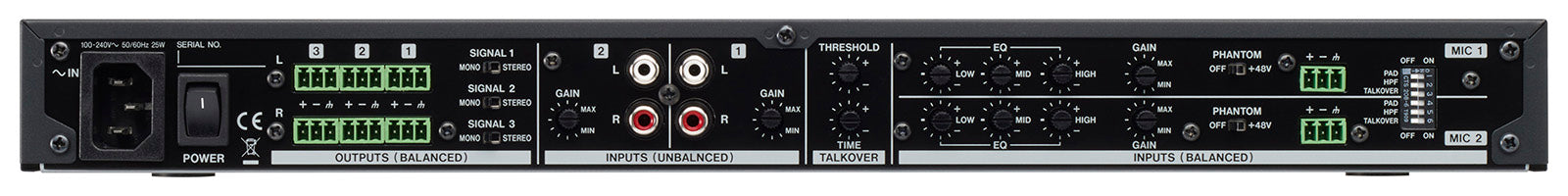

Three pair of stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. A MONO/STEREO switch is provided for each output.

Three Input Channels

Stereo LINE Inputs 1 and 2 (RCA, Unbalanced) allow connection of AV equipment such as TASCAM CD/Solid State Players or similar playback devices. The Channel 3 AUX/Bluetooth® Input allows an additional audio source to be connected via Bluetooth® or 3.5mm mini plug. Each input features a Volume Control knob as well as a Zone Routing button (1, 2 or 3) for audio distribution to desired areas.

Simple Layout for Ease of Operation

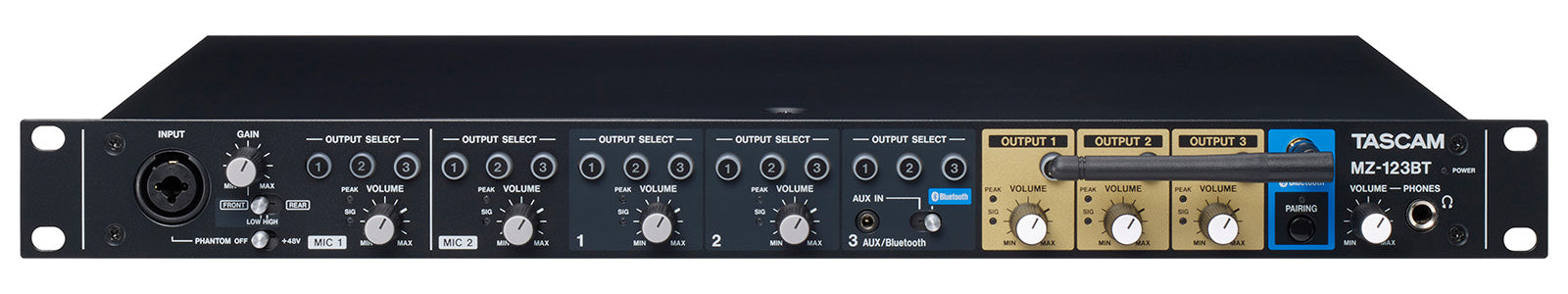

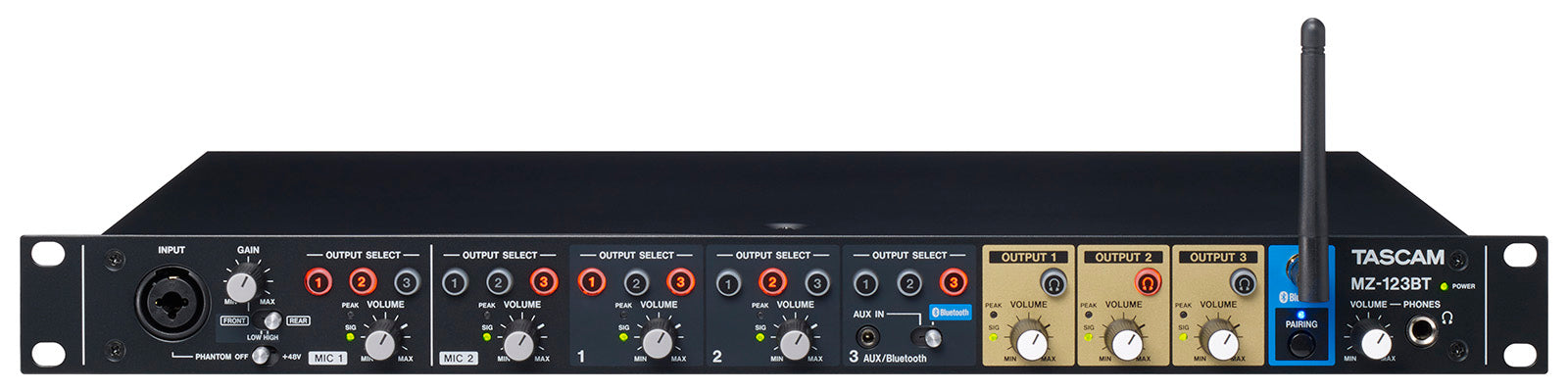

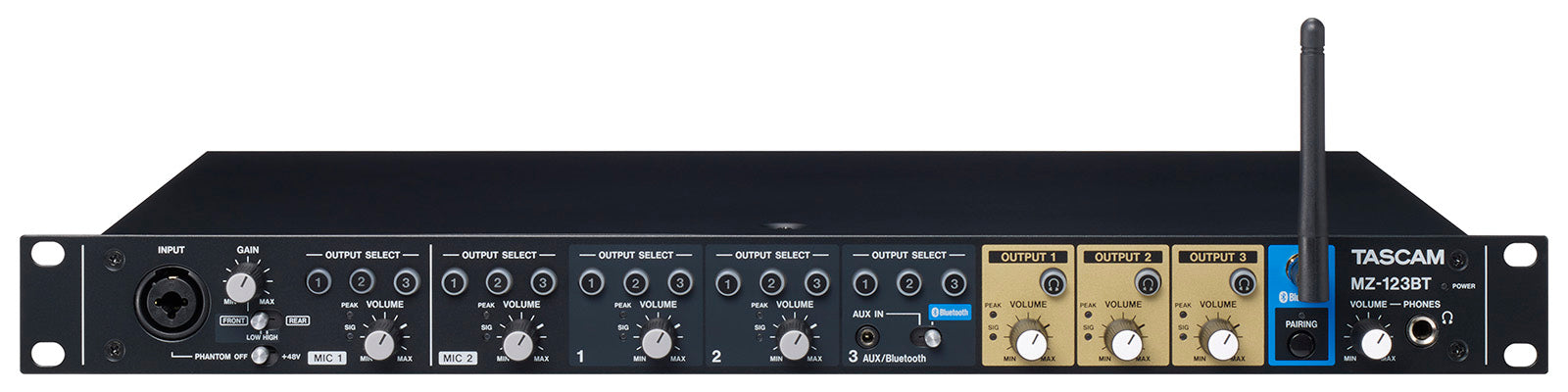

Intuitive front-panel control of Volume, Output, Zone Select and Bluetooth® pairing makes basic operation simple for non-technical staff and workers. More advanced system configuration and operational settings for EQ, Gain and Threshold can be dialed in and set via dedicated back panel knobs.

Features:

Input Channel sources can be easily assigned to each of the individual 3 Zone Outputs
MONO/STEREO select switch on each Output Channel (*1)
Euroblock connectors provide seamless connection and configuration in fixed installations
3 Input Channels
Channel 1 : LINE input (RCA, Unbalanced)
Channel 2 : LINE input (RCA, Unbalanced)
Channel 3 : Bluetooth® / 3.5mm (1/8") AUX input (*2)
2 MIC inputs for announcements or Talk Over
Individual +48V phantom power switch on each channel
3 band EQ and High Pass Filter for adjusting Input Channel signal tone and quality
MIC 1 connection available via a front panel XLR/TRS combo jack or rear panel Euroblock connectors
Talk Over feature enables automatic background music volume attenuation in desired Zone when mic audio is detected
Headphone jack enables monitoring of each output channel
Compact 1U rack-mount size

(*1) Stereo input sources will be mixed to monaural when output is set to MONO.
(*2) Source selection either via AUX input or Bluetooth® during operation.
