Tascam SERIES 8p Dyna 8-Channel Mic Preamp & DA Converter with Compressor
Tascam SERIES 8p Dyna 8-Channel Mic Preamp & DA Converter with Compressor
Tascam SERIES 8p Dyna - 8 CHANNEL MIC PREAMPLIFIER w/ANALOG COMPRESOR
A Superior Front End for Studio and Stage
TASCAM has long been known for transparent, natural, ultra-low-noise preamps, and the eight TASCAM no-compromise HDIA (High Definition Instrumentation Architecture) preamps in the SERIES 8p Dyna are its best preamps yet; the noise level (EIN) is at -127dBu, the THD is 0.0007%, the dynamic range is 116dB, and the crosstalk is 119dB. Each SERIES 8p Dyna channel also features an easy-to-use, single-control analog compressor with true bypass for handling hot input signals and creating smooth audio input.
Versatile Inputs
With two instrument/microphone combo inputs on the front panel, you can quickly plug in mics, guitars, bass and more. Six balanced mic/line inputs grace the rear. Every microphone input has individually switched +48V phantom power for using different types of microphones such as Dynamic, Condenser, Ribbon and vintage for proper operation and safety. It adds up to a multi-purpose front end for recording and live sound.
Expand Your Interface or Other Device

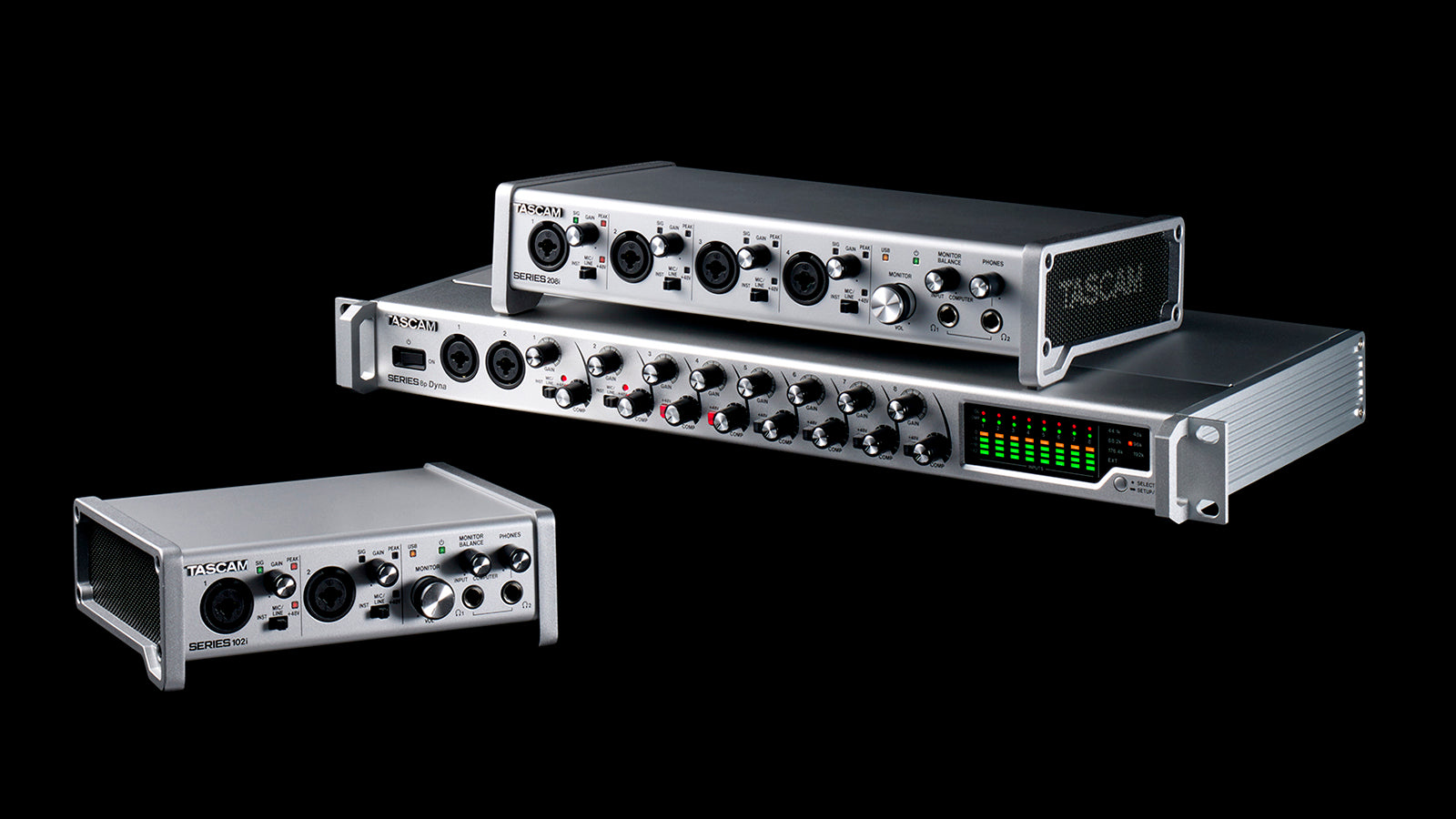

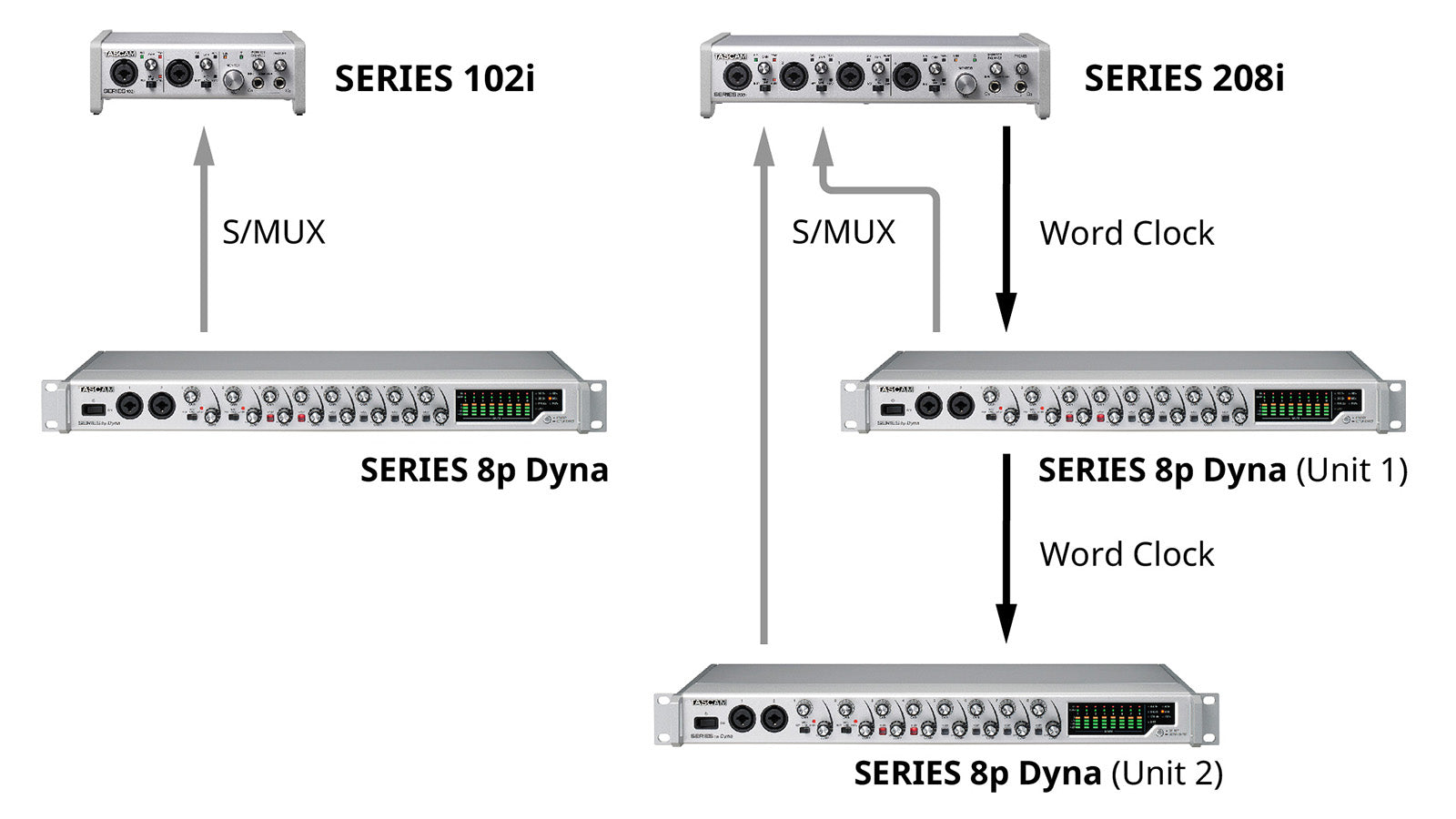

Dual S/MUX optical outputs on the rear of the SERIES 8p Dyna enable you to use the unit as a front end expander for S/MUX-equipped audio interfaces, such as TASCAM's SERIES 102i and SERIES 208i, and Celesonic US-20x20. ADAT compatibility is also available. With two S/MUX outputs, you can send all eight SERIES 8p Dyna channels at up to 96 kHz (four channels at 176.4 or 192 kHz), dramatically expanding your system's capabilities.
Features
- Versatile, great-sounding front end for recording and live sound
- 8 TASCAM HDIA (High Definition Instrumentation Architecture) microphone preamplifiers
- Single-knob analog compressor with true bypass individually assignable to each input channel

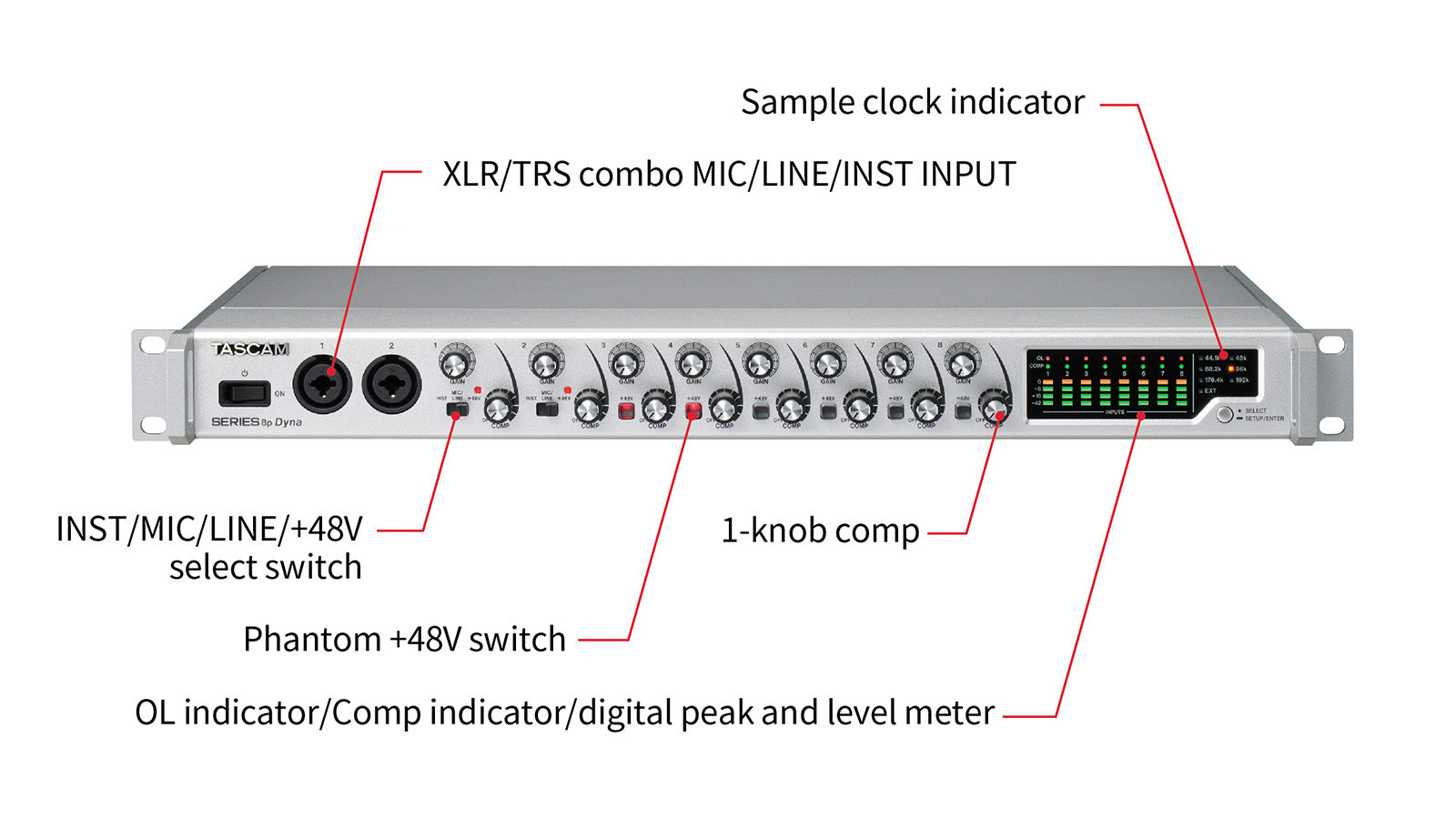

- 2 front panel instrument (Hi-Z)/microphone combo inputs
- 6 rear-panel balanced mic/line inputs
- Individually switched +48V phantom power per channel
- Dual S/MUX optical outputs: 8 channels at up to 96 kHz; 4 channels at 176.4 or 192 kHz (ADAT compatible)

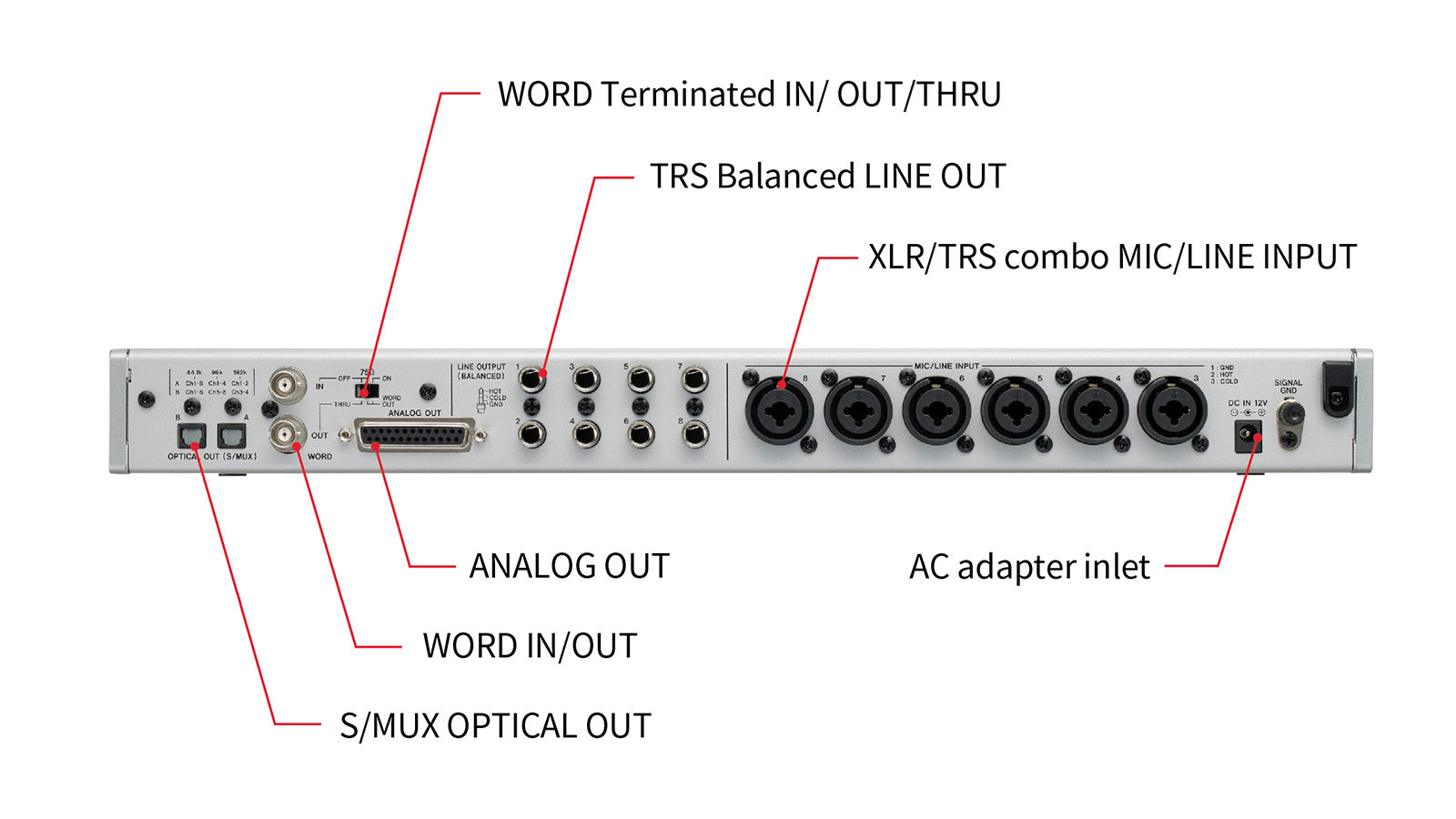

- 8 line-level 1/4-inch balanced TRS analog channel outputs
- 8 line-level balanced channel outputs on a 25-pin D-Sub connector
- Word clock in and out on BNC connectors, with In/Out/Thru switch
- Front-panel analog overload indicators, compression indicators, and digital peak and level meter bars
- Rugged metal 1U rack-mount enclosure
