Telos Z/IP ONE Broadcast IP Codec 2001-00289-000

Telos Z/IP ONE Broadcast IP Codec

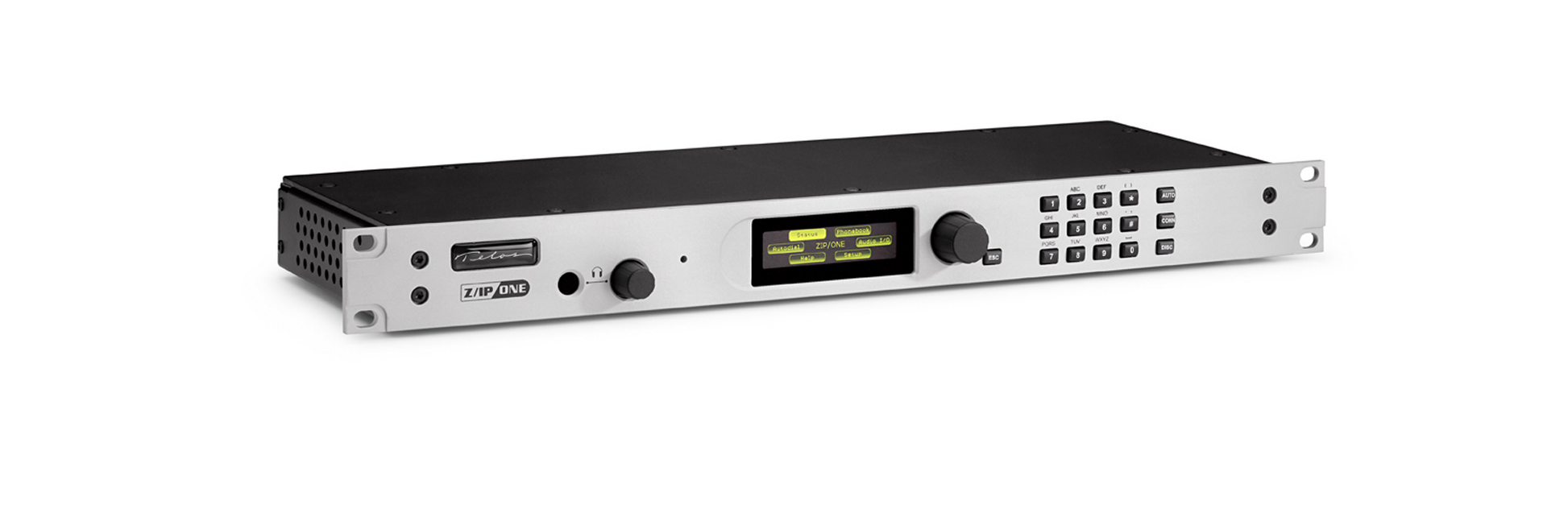

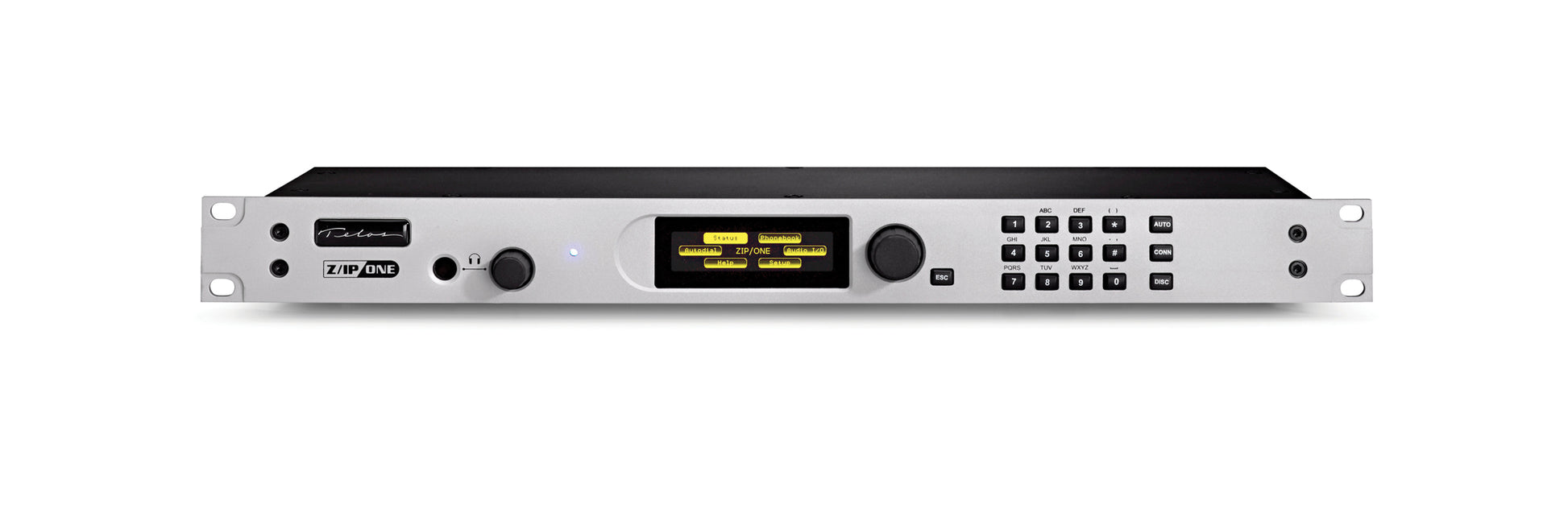

Z/IP ONE is a 1 RU rack-mount IP codec for remote broadcasting. It’s a single-space rack unit perfect for studios, TOCs and remote kits. Z/IP ONE Includes a full range of codecs including AAC-ELD, AAC-HE, AAC-LD, MPEG 4 AAC, MPEG 2 AAC, MPEG Layer 2, G.711, G.722 codecs, plus linear audio and optional aptX® Enhanced coding. Z/IP ONE supports SIP 2.0 protocol and conforms to N/ACIP standards; it also works with VoIP devices and connects to compatible SIP PBXs. A full complement of I/O, including Livewire® AoIP, analog and AES/EBU, is standard.

• Works with wired and wireless IP connections including WiFi, WLAN and UMTS/EVDO networks.

• Exclusive Agile Connection Technology (ACT) automatically senses network conditions and adapts codec performance to provide the best possible audio.

• Largest choice of high-performance codecs: AAC-ELD, AAC-HE, AAC-LD, MPEG Layer-2, MPEG-4 AAC- LC, MPEG-2 AAC-LC, G.711, G.722, and linear PCM. Enhanced aptX coding optional.

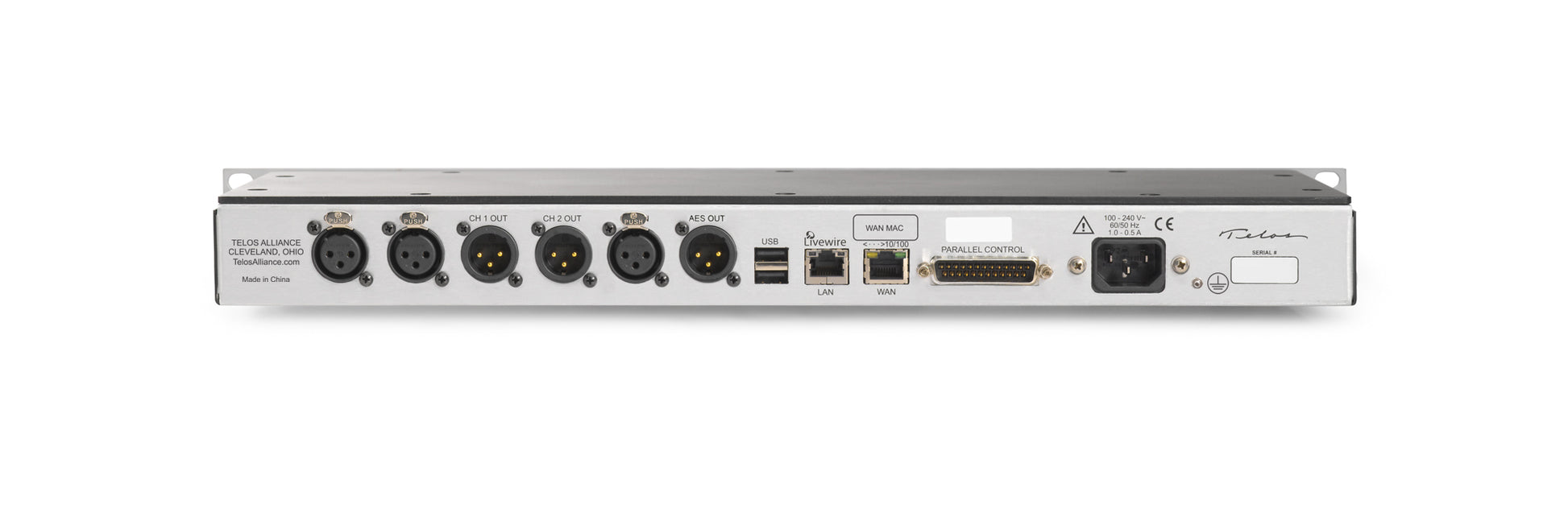

• Dual Ethernet ports for separate streaming and control, LAN for local control with Livewire audio and GPIO; separate WAN for secure connection to wide area networks.

• Livewire, analog and AES/EBU I/O standard.

• Easy browser setup via built-in Web server.

• “Push Mode” for one-way network transmission.

• “Multiple Push Mode” for audio distribution to multiple destinations.

• Distributed Z/IP Server directory service, with multiple geolocations, lets you easily connect to other Z/IP ONE devices without the need for an IP address and also provides sophisticated NAT traversal support.

• Transparent, time-aligned RS-232 channel for remote control or metadata, e.g., RDS.

• Time-aligned 8-bit parallel GPIO port for signaling and control.

• Slim 1RU form factor is perfect for studio racks, remote kits or road cases.
