Tieline TLR6200 Series - Gateway IP Codec

Model

Tieline TLR6200 Series - Gateway IP Codec

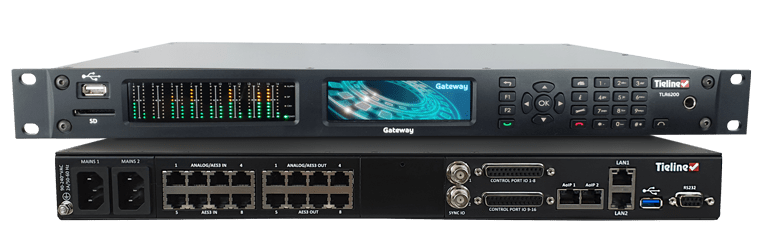

The Most powerful DSP-based 1RU IP Codec

The Tieline Gateway introduces a new era in high-density multichannel IP codec streaming. The Gateway supports up to 16 mono channels or 8 stereo streams of bidirectional IP audio in 1RU to increase efficiency and reduce rack space requirements. It interfaces easily with legacy analog and AES/EBU digital sources, as well as newer broadcast plants with AES67, ST 2110-30, ST 2022-7, Livewire+, RAVENNA, NMOS, and Ember+. An optional WheatNet-IP card is also available.

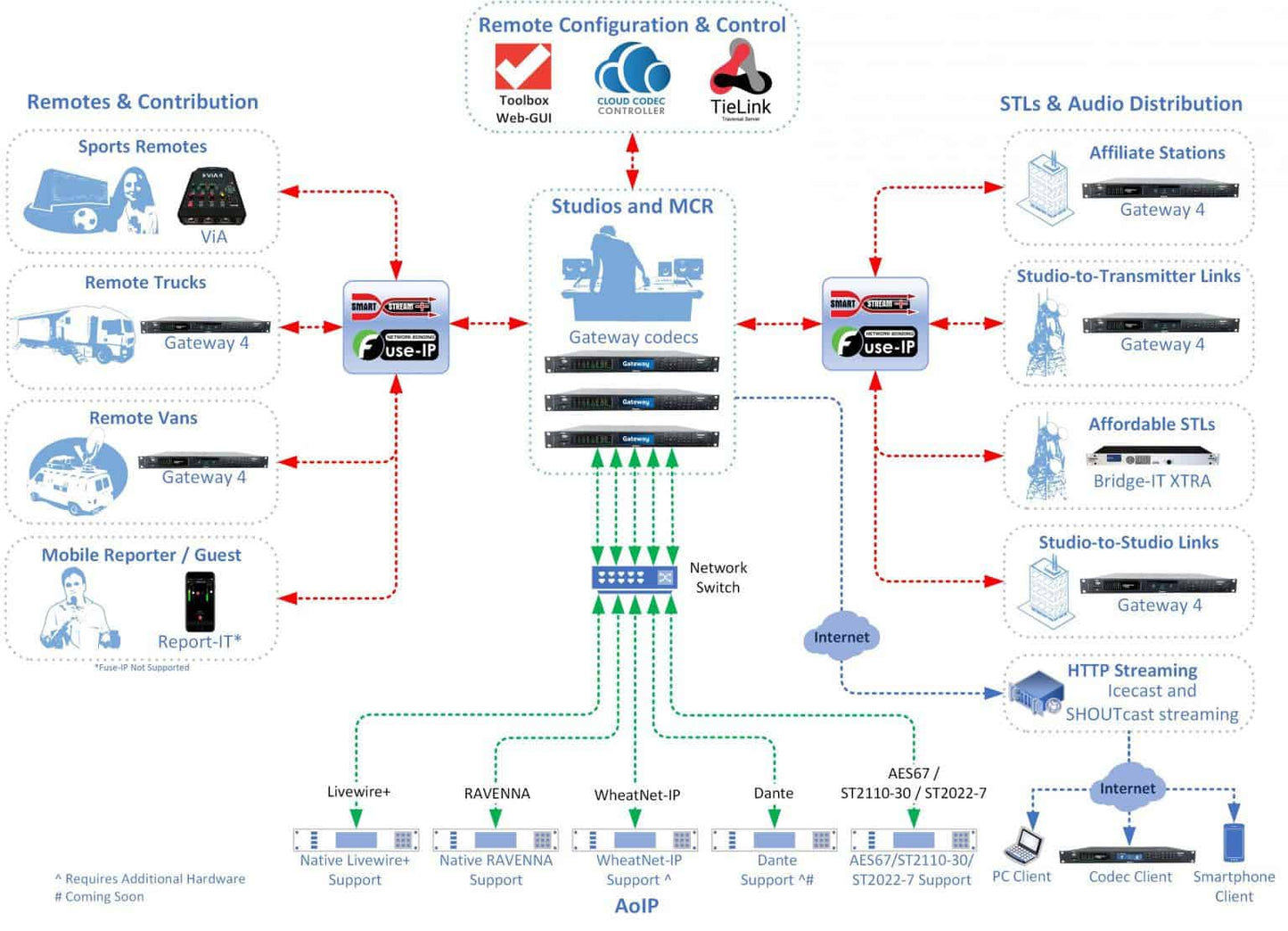

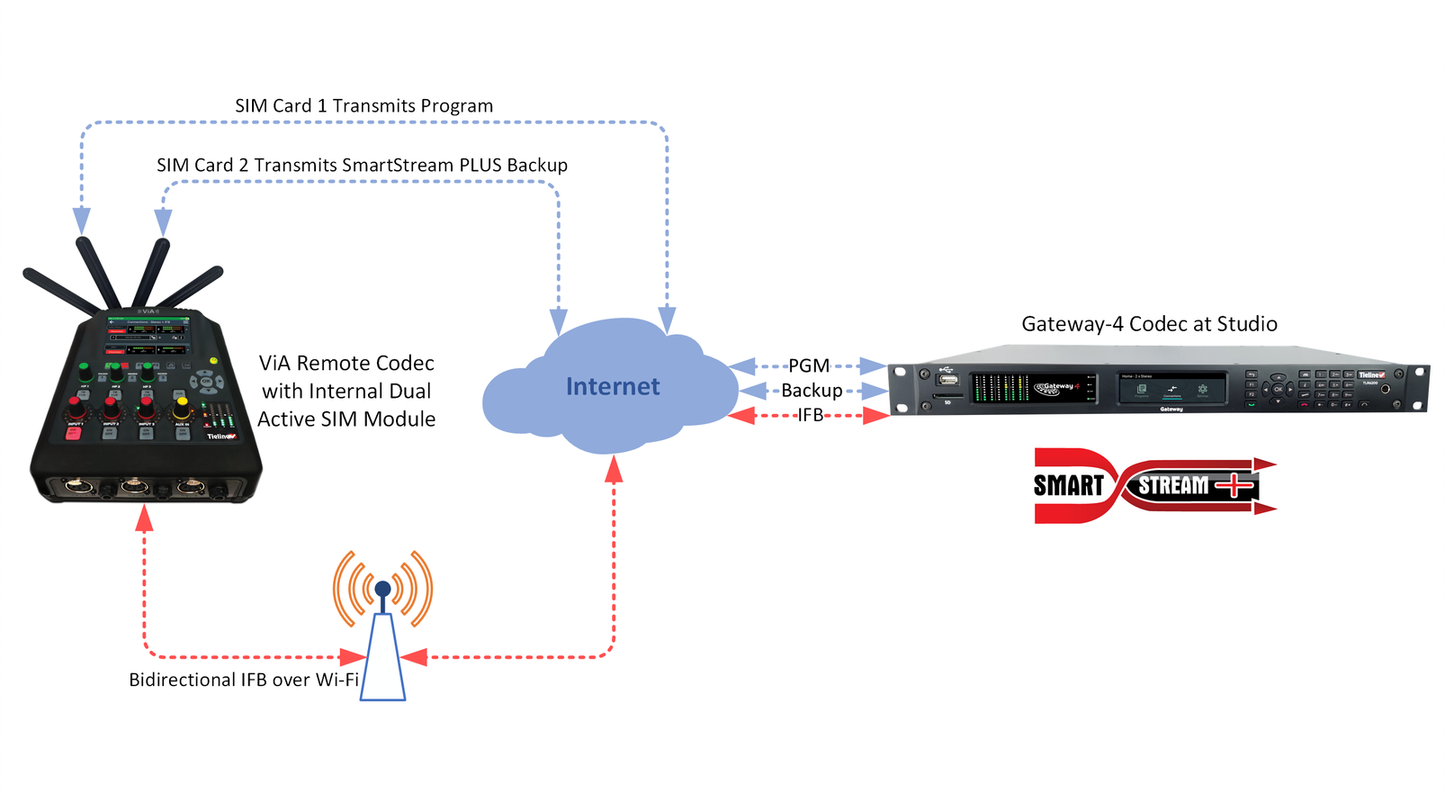

The Gateway is perfect for large-scale audio distribution to single or multiple locations, as well as managing multiple incoming remotes at the studio using SmartStream PLUS redundant IP streaming and Fuse-IP data aggregation technologies over internet connections. It is interoperable with all Tieline IP codecs and compatible over SIP with all EBU N/ACIP Tech 3326, 3347 and 3368 compliant codecs and devices.



Applications

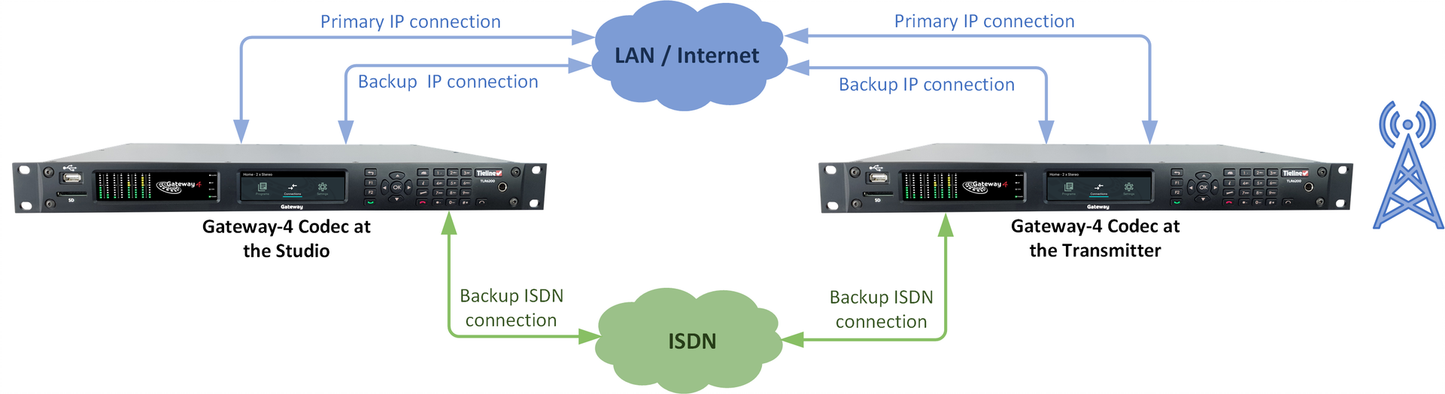

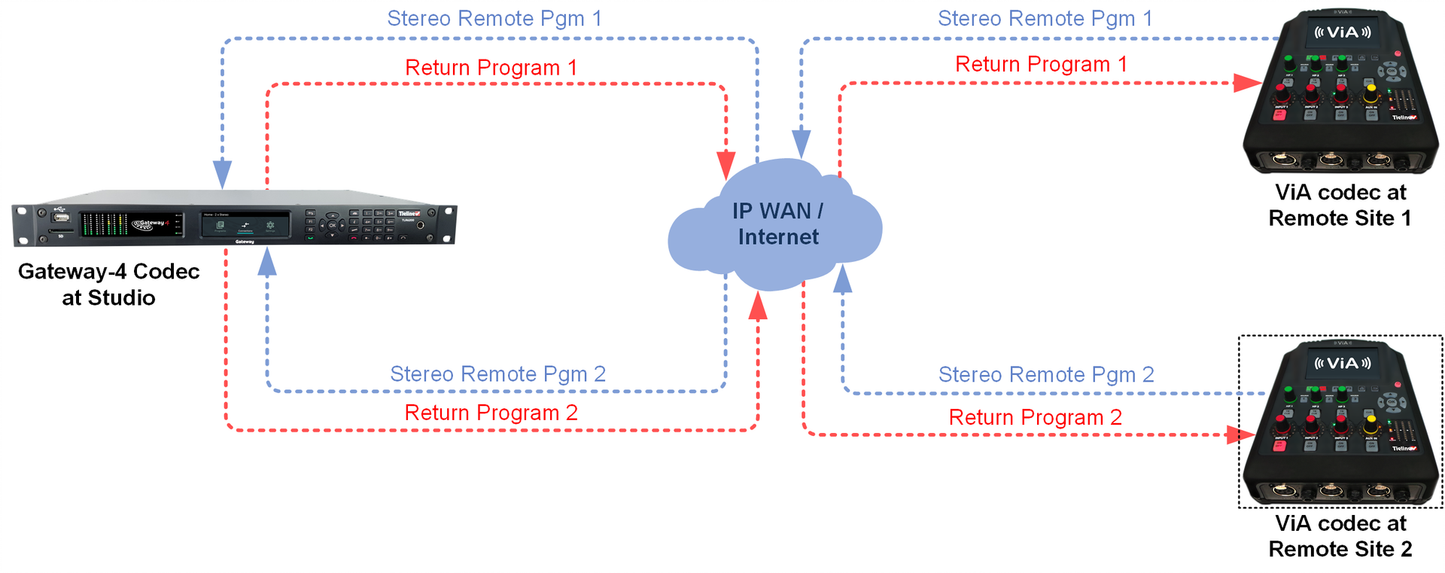

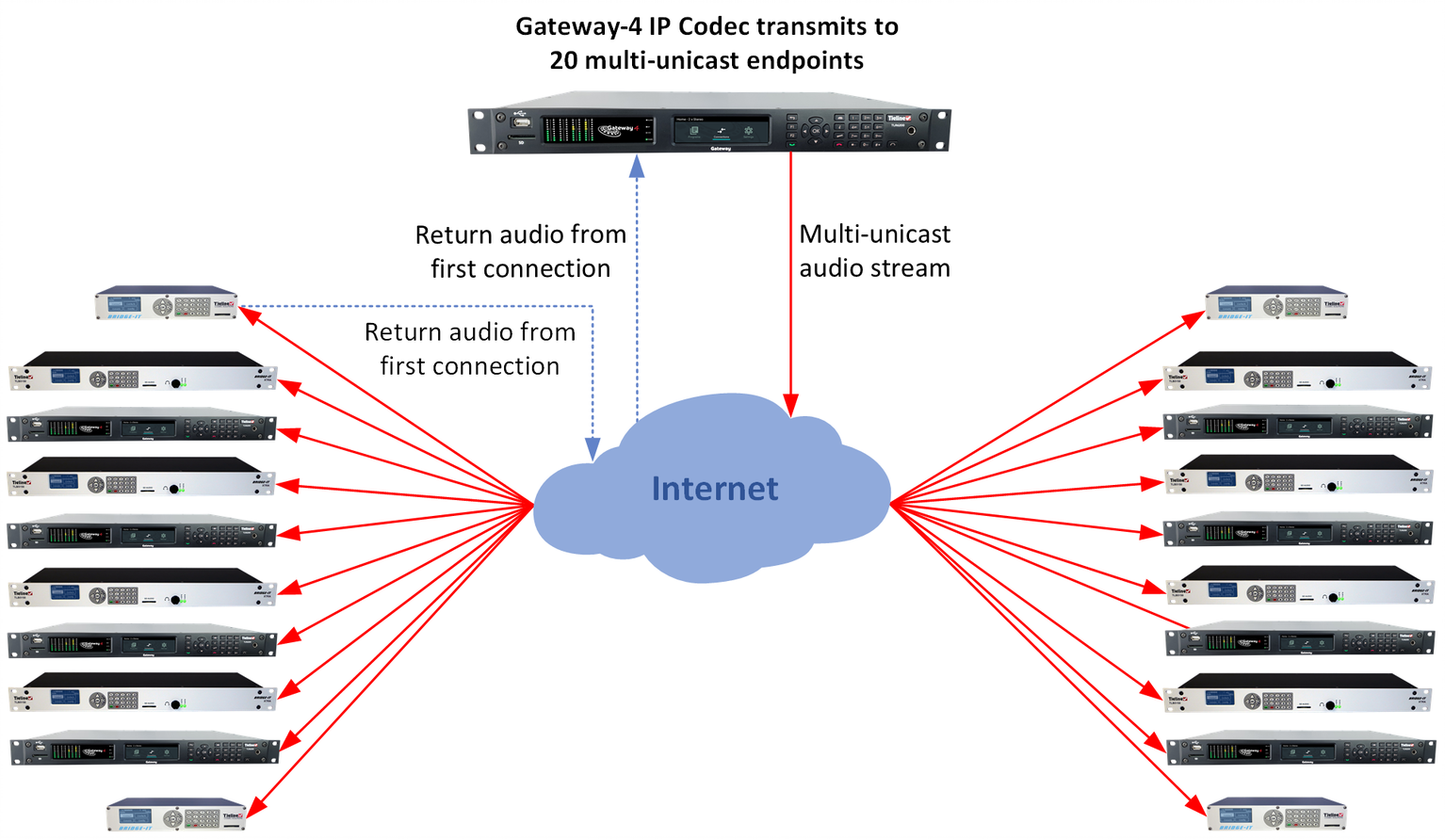

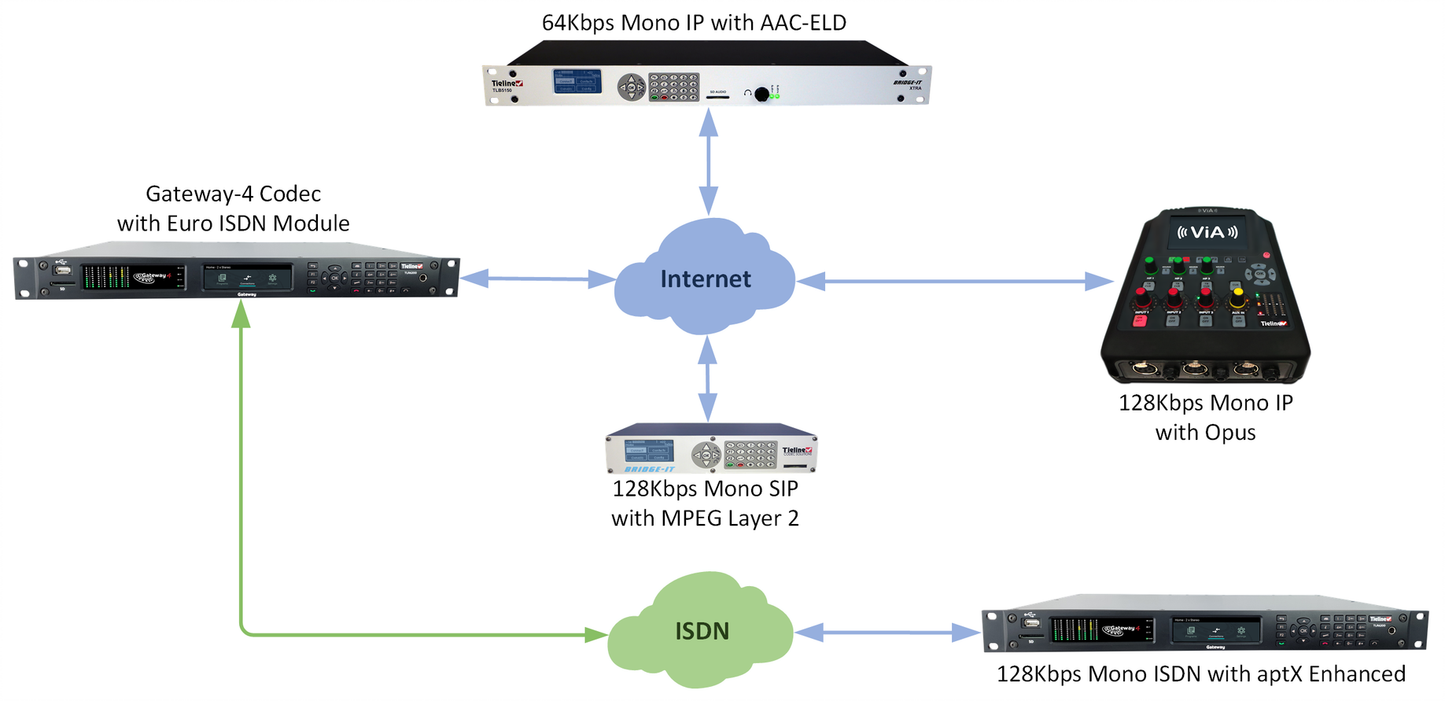

The Gateway TLR6200 Series is perfect for STL, SSL and audio distribution applications, with support for multicasting and multiple unicasting technologies. It is also perfect for managing multiple incoming remotes at the studio and can simultaneously connect to up to 4 hardware codecs or Report-IT Enterprise smartphone app users.
