Vaddio PowerVIEW HD-22 QUSB


The engineers in the 305 Broadcast Video division have complete knowledge in setup, implementation, and training programs.

If you are looking to design a new studio, Master control, or any specific need in TV Video Broadcast Products, ask the experts at 305 Broadcast.  Let our engineers assist you and provide a complete turnkey solution

 Part Number: 6966-000

Features
  • HDMI, YPbPr, USB 2.0 or H.264 Streaming Outputs
  • Power/Video/Control on two Cat-5’s up to 100’ (30.5m)
  • Embedded Web Server for browser-based robotic camera control, and CCU image and color control



The WallVIEW HD-22 USB brings 3-Chip broadcast camera performance to a Single-Chip camera. Based on third-generation Maicovicon 2.2 Megapixel MOS imaging sensor technology, the HD-22 improves color and brightness uniformity, ensuring an improved high definition image quality.

The HD-22 comes equipped with a multi-element 22x optical glass auto-focus zoom lens that provides up to a 66-degree field-of-view for a wide range of telephoto or wide-angle shot options. An impressive 128x wide dynamic range covers both light and dark contrasted areas and a Color Capture light system produces vivid color images without color saturation or filtering.

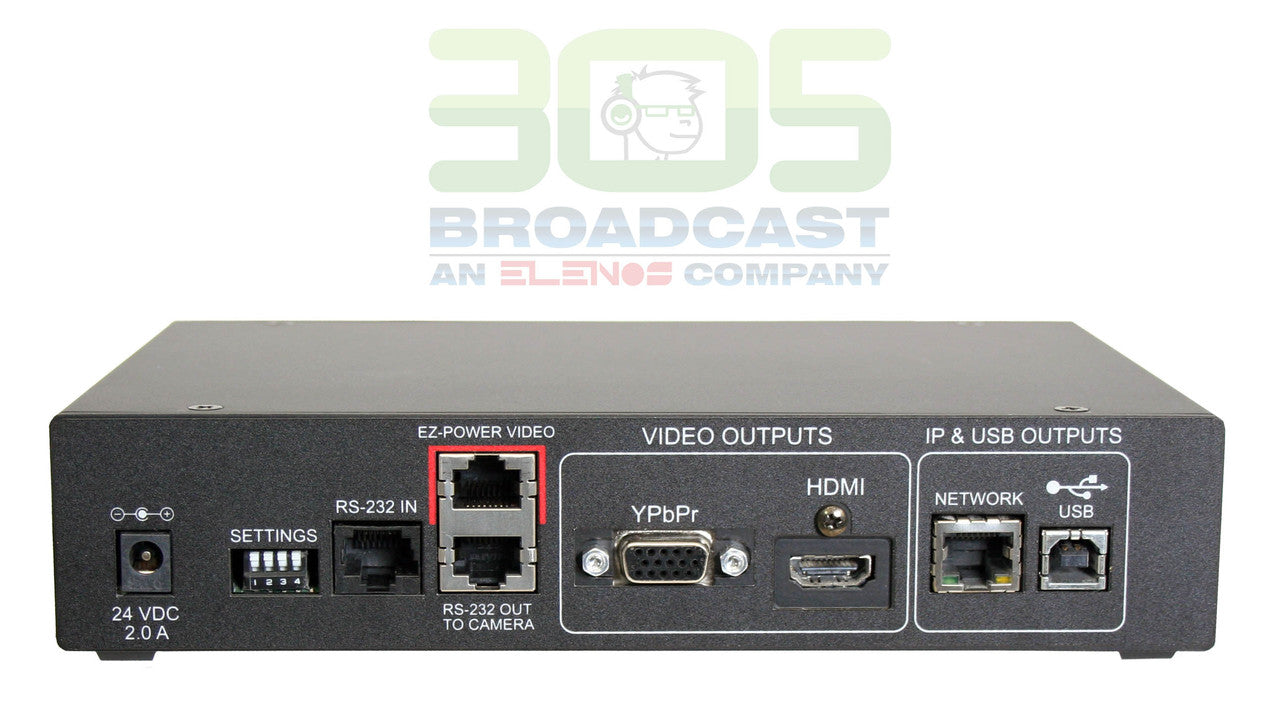

When paired with the Quick-Connect USB Interface, the outputs include USB 2.0 (UVC) Streaming or IP (H.264) Streaming in RTSP or HLS formats with IP control and simultaneous HDMI and HD analog component (YPbPr) video outputs.



** Product Authorized to sell in Latin America Only
